Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FORK (MODEL T)

SUSPENSION ARM (MODEL T) FOR SUZUKI AUTRES-MODELES 50 1996

FRONT WHEEL (MODEL M) REFER TO FIG.39A(G-6) FOR MODEL T

Item numbers

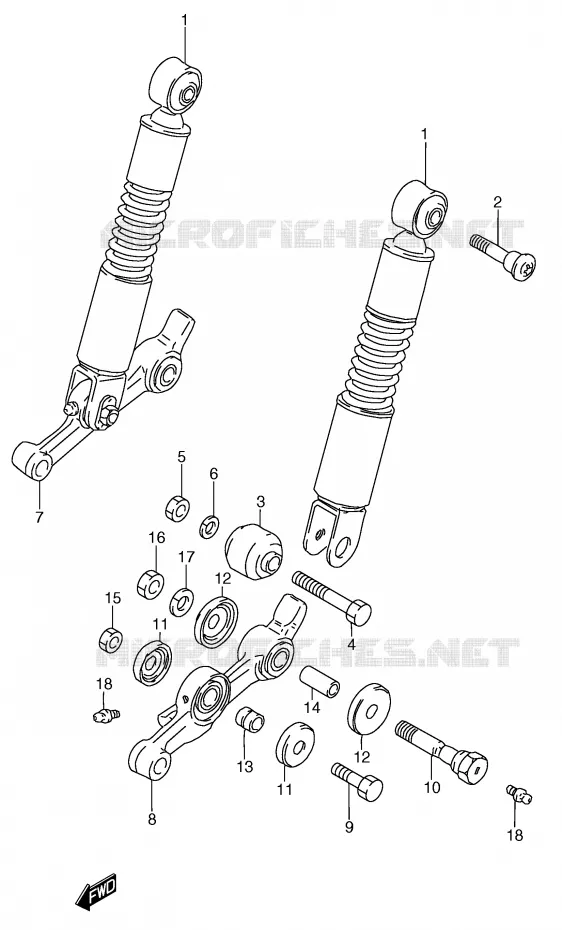

SUSPENSION ARM (MODEL T) Suzuki SCOOTER 50 Autres-modeles 1996 RC50T(E1)
1
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
18
1
ABSORBER ASSY, FRONT SHOCK

52100-09401-000   5210009401000

5210009401000
Not available
2
SCREW

09139-08003-000   0913908003000

0913908003000
Not available
3
STOPPER, FRONT BRAKE

54350-19000-000   5435019000000

5435019000000
Not available
4
DISCONTINUE
BOLT (8X46)

09100-08151-000   0910008151000

0910008151000
Not available
5
NUT
NUT

08313-10087-000   0831310087000

0831310087000

Unit Price

6
WASHER, CHAIN ADJUSTE
WASHER

09162-08008-000   0916208008000

0916208008000

Unit Price

7
ARM, FRONT SUSPENSION RH

52410-09402-000   5241009402000

5241009402000
Not available
8
ARM, FRONT SUSPENSION LH

52420-09402-000   5242009402000

5242009402000
Not available
9
SCREW

09130-08001-000   0913008001000

0913008001000
Not available
10
BOLT, REAR

52407-35000-000   5240735000000

5240735000000
Not available
11
DISCONTINUE
COVER, CENTER

52451-09401-000  

5245109401000
Not available
12
DISCONTINUE
COVER, REAR

52452-09401-000  

5245209401000
Not available
13
SPACER (8X12X12.5)

09180-08074-000   0918008074000

0918008074000
Not available
14
SPACER, REAR

09319-10002-000   0931910002000

0931910002000
Not available
15
NUT
NUT

09140-08021-000   0914008021000

0914008021000

Unit Price

16
NUT

08310-00103-000  

08310-0010B-000
 0831000103000

Unit Price

17
WASHER (10.2X18.5X1.8)

09162-10008-000   0916210008000

0916210008000

Unit Price

18
NIPPLE
NIPPLE

08351-11009-000   0835111009000

0835111009000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SUSPENSION ARM (MODEL T) of your Suzuki of Autres-modeles. Let us know if you have any questions.
