FRAME FOR SUZUKI ESTILETE 50 2000

FUEL TANK

Item numbers

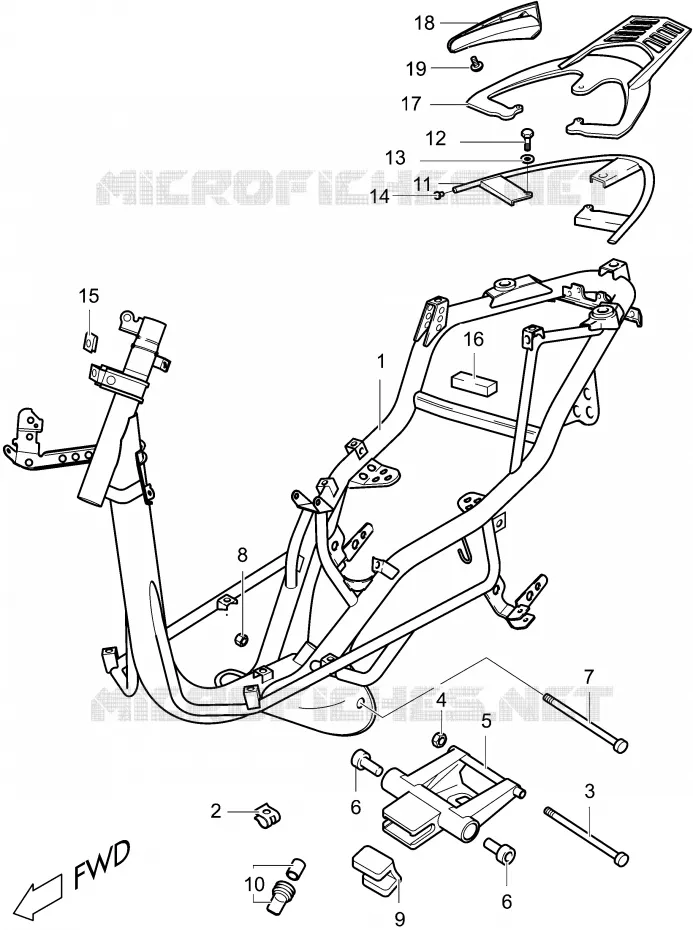

FRAME Suzuki SCOOTER 50 ESTILETE 2000 UF50Y
1
1
1
1
1
1
2
2
3
3
4
4
5
5
6
6
6
6
7
7
8
8
9
9
10
10
11
11
11
11
12
12
13
13
14
14
15
15
16
16
17
17
17
17
18
18
19
19
1
FRAME

41100-30F00-EE3   4110030F00EE3

4110030F00EE3
Not available
1
FRAME

41100-30F10-EAN   4110030F10EAN

4110030F10EAN
Not available
1
FRAME

41100-30F10-EE3   4110030F10EE3

4110030F10EE3
Not available
2
NUT

D911P-06226-000   D911P06226000

D911P06226000
Not available
3
BOLT (M10X190)

D1507-100J8-000   D1507100J8000

D1507100J8000
Not available
4
NUT

D8310-00108-000   D831000108000

D831000108000
Not available
5
BRACKET, CRANKCASE

41180-02E00-EE3   4118002E00EE3

4118002E00EE3
Not available
6
BUSH

09319-10068-000   0931910068000

0931910068000
Not available
7
BOLT, ENGINE MOUNT (M10X180)

D1507-100G8-000   D1507100G8000

D1507100G8000
Not available
8
NUT

D8319-69103-000   D831969103000

D831969103000
Not available
9
CUSHION, SWING STOP

41185-29C01-000  

41185-29C10-000
 4118529C01000

Unit Price

10
TUBE DRAIN, SET

13092-09E00-000   1309209E00000

1309209E00000
Not available
11
HANDLE COMP.

46210-30F00-E91   4621030F00E91

4621030F00E91
Not available
11
HANDLE COMP.

46210-30F10-E91   4621030F10E91

4621030F10E91
Not available
12
BOLT

D1507-08255-000   D150708255000

D150708255000
Not available
13
08322-0108A
WASHER

D8322-01085-000  

D832201085000
Not available
14
CAP

46214-02E00-000   4621402E00000

4621402E00000
Not available
15
NUT

D911P-08246-000   D911P08246000

D911P08246000
Not available
16
CUSHION, FUEL TANK

47165-48B20-000   4716548B20000

4716548B20000
Not available
17
CARRIER, REAR

46111-30F00-E91   4611130F00E91

4611130F00E91
Not available
17
CARRIER, REAR

46111-30F10-E91   4611130F10E91

4611130F10E91
Not available
18
COVER

46112-30F00-NE2   4611230F00NE2

4611230F00NE2
Not available
19
BOLT

09139-06064-000   0913906064000

0913906064000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
