CRANKSHAFT

CARBURETOR FOR SUZUKI ESTILETE 50 2000

AIR FILTER

Item numbers

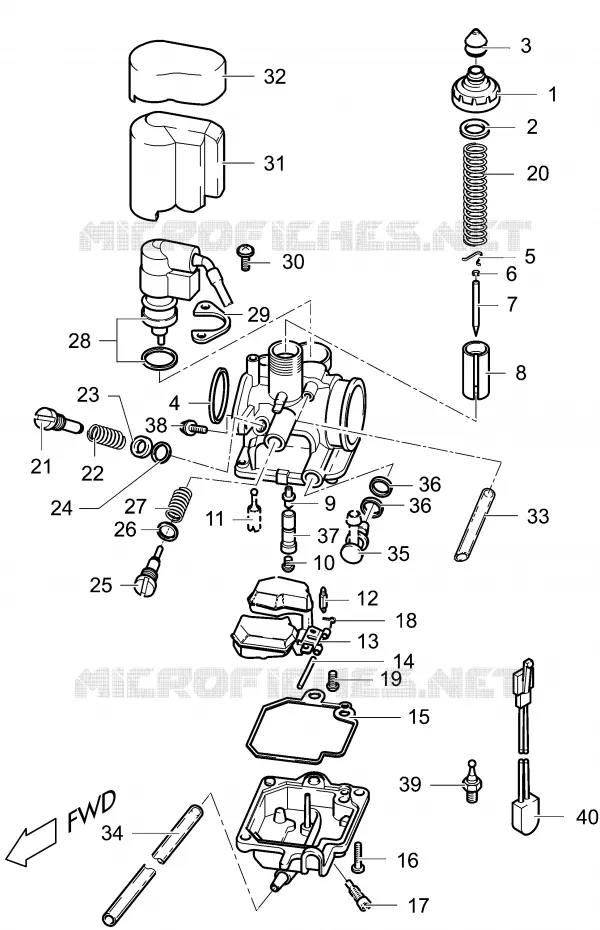

CARBURETOR Suzuki SCOOTER 50 ESTILETE 2000 UF50Y
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
36
36
37
37
38
38
39
39
40
40
1
TOP

13261-43E00-000   1326143E00000

1326143E00000
Not available
2
GASKET

13266-43E00-000   1326643E00000

1326643E00000
Not available
3
CAP, CARBURETOR
CAP

13681-28E00-000   1368128E00000

1368128E00000

Unit Price

4
O RING

13436-43E00-000   1343643E00000

1343643E00000
Not available
5
PLATE

13392-43E00-000   1339243E00000

1339243E00000
Not available
6
CLIP, NEEDLE

13394-43E00-000   1339443E00000

1339443E00000
Not available
7
JET NEEDLE (N5GJ)

13383-35E30-000   1338335E30000

1338335E30000
Not available
8
VALVE, PISTON

13551-43E00-000   1355143E00000

1355143E00000
Not available
9
NEEDLE JET

13351-43E10-000   1335143E10000

1335143E10000
Not available
10
JET, MAIN (65)

09491-65009-000   0949165009000

0949165009000
Not available
11
JET, PILOT (42)

09492-42020-000   0949242020000

0949242020000
Not available
12
VALVE ASSY, FLOAT

13370-43E00-000   1337043E00000

1337043E00000
Not available
13
FLOAT ASSY

13250-43E00-000   1325043E00000

1325043E00000
Not available
14
PIN, FLOAT

13254-43E00-000   1325443E00000

1325443E00000
Not available
15
GASKET

13258-43E00-000   1325843E00000

1325843E00000
Not available
16
SCREW
SCREW

13602-26E10-000   1360226E10000

1360226E10000

Unit Price

17
PLUG, DRAIN
SCREW, DRAIN

13247-43E00-000  

1324743E00000
Not available
18
CLIP

13375-43E00-000   1337543E00000

1337543E00000
Not available
19
SCREW

13602-43E00-000  

1360243E00000
Not available
20
SPRING

13573-43E00-000   1357343E00000

1357343E00000
Not available
21
ADJUSTER (2)

13279-35E00-000   1327935E00000

1327935E00000
Not available
22
SPRING
SPRING, AIR SCREW

13271-43E00-000  

1327143E00000
Not available
23
WASHER
WASHER

13291-26E00-000   1329126E00000

1329126E00000

Unit Price

24
O.RING
O.RING

13295-26E00-000   1329526E00000

1329526E00000

Unit Price

25
SCREW, STOP

13267-35E00-000   1326735E00000

1326735E00000
Not available
26
O RING

13278-43E00-000  

1327843E00000
Not available
27
SPRING

13297-43E00-000   1329743E00000

1329743E00000
Not available
28
ELEMENT ASSY, THERMO

13430-35EE0-000   1343035EE0000

1343035EE0000
Not available
29
PLATE

13428-06F30-000   1342806F30000

1342806F30000

Unit Price

30
SCREW

02112-34083-000  

02112-3408A-000
 0211234083000

Unit Price

31
CAP, INNER

13431-43E50-000   1343143E50000

1343143E50000
Not available
32
CAP, OUTER

13433-43E50-000   1343343E50000

1343343E50000
Not available
33
HOSE

13683-43E00-000   1368343E00000

1368343E00000
Not available
34
HOSE

13684-35E00-000   1368435E00000

1368435E00000
Not available
35
JOINT

13685-43E00-000   1368543E00000

1368543E00000
Not available
36
O. RING

13294-43E00-000   1329443E00000

1329443E00000
Not available
37
HOLDER, JET

13342-43E00-000   1334243E00000

1334243E00000
Not available
38
BOLT

D7107-06165-000  

07130-0616B-000
 D710706165000

Unit Price

39
HEATER ASSY, CARBURETOR(15W)

13651-25E01-000  

13650-25E01-000
 1365125E01000

Unit Price

40
THERMO SWITCH,CARB HEATER<br />THERMOSWITCH, CARBURETOR HEATE
THERMO SWITCH, CARB HEATER
THERMOSWITCH, CARBURETOR HEATE

13655-25E00-000   1365525E00000

1365525E00000

Unit Price

99x
CARBURETOR ASSY

13200-30F00-000   1320030F00000

1320030F00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 50 ESTILETE 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 50 ESTILETE 2000

Choose your Suzuki 50 2000 ESTILETE model

50 ESTILETE 2000 UF50Y

Suzuki ESTILETE

Displacement: 50 cc
Year: 2000
Model code UF50Y
