Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME (MODEL K / L / P)

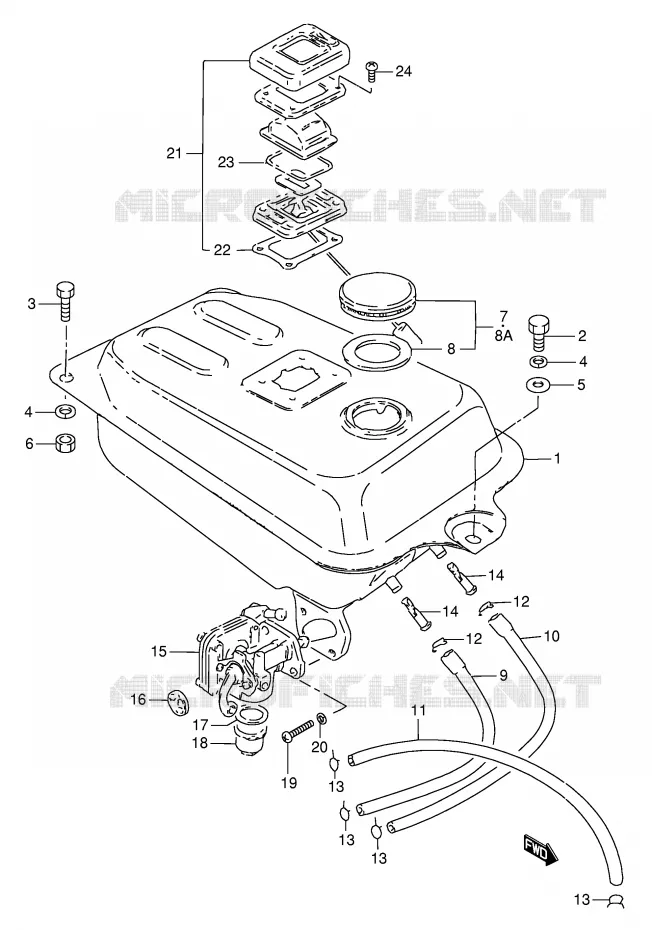

FUEL TANK FOR SUZUKI FZ 50 1982

SEAT CARRIER

Item numbers

DISCONTINUED

44110-02411-00B 441100241100B

Not available

TANK, FUEL (RED)

44110-02411-00J 441100241100J

Not available

TANK, FUEL (BLACK)

44110-02411-019 4411002411019

Not available

TANK, FUEL (BLUE)

44110-02411-04Y 441100241104Y

Not available

TANK, FUEL (GREEN)

44110-02411-07R 441100241107R

Not available

DISCONTINUED

44110-02411-07S 441100241107S

Not available

TANK, FUEL (BLUE)

44110-02411-08Y 441100241108Y

Not available

TANK, FUEL (BLUE)

44110-02411-0NF 44110024110NF

Not available

DISCONTINUED

44110-02411-14C 441100241114C

Not available

TANK, FUEL (YELLOW)

44110-02411-163 4411002411163

Not available

TANK, FUEL (SILVER)

44110-02411-23W 441100241123W

Not available

BOLT

01500-06127-000 0150006127000

$3,97

Unit Price

BOLT

01550-06207-000 0155006207000

$3,97

Unit Price

WASHER, LOCK
LOCK WASHER

08321-01067-000 0832101067000

$2,97

Unit Price

WASHER

08322-01067-000

08322-0106A-000

$3,97

Unit Price

NUT

08310-00067-000 0831000067000

$3,97

Unit Price

DISCONTINUED

44200-35820-000 4420035820000

Not available

DISCONTINUED

44200-35822-000 4420035822000

Not available

GASKET, CAP

44248-35000-000

44248-35001-000

$10,97

Unit Price

DISCONTINUED

44210-35013-000 4421035013000

Not available

DISCONTINUED

44210-35014-000 4421035014000

Not available

HOSE

09343-05096-000

09359-50823-600

$15,97

Unit Price

HOSE

09343-05096-000

09359-50823-600

$15,97

Unit Price

HOSE

09352-50823-300

09352-50005-600

$11,97

Unit Price

HOSE, FUEL (L:240 @R L:200)

09343-05129-000 0934305129000

Not available

FUEL HOSE CLAMP
CLIP (1)

09401-10401-000 0940110401000

$2,97

Unit Price

OIL HOSE CLAMP
CLIP (2)

09401-08401-000 0940108401000

$2,97

Unit Price

FILTER, FUEL

44322-27001-000 4432227001000

$6,97

Unit Price

COCK ASSY, FUEL

44300-02461-000 4430002461000

Not available

F COCK LEVER GASKET

44341-19050-000

44341-19051-000

$6,97

Unit Price

GASKET, CLEANER CUP
GASKET, CUP

44346-20050-000 4434620050000

$9,97

Unit Price

CUP, FUEL COCK
CUP

44347-20050-000 4434720050000

$11,97

Unit Price

SCREW, 6X16
SCREW

02112-06167-000 0211206167000

$2,97

Unit Price

SCREW

02112-35167-000

02112-3516A-000

$3,97

Unit Price

WASHER, LOCK
LOCK WASHER

08321-01067-000 0832101067000

$2,97

Unit Price

DISCONTINUED

44580-02401-000 4458002401000

Not available

DISCONTINUED

44580-02402-000 4458002402000

Not available

DISCONTINUE
GAUGE ASSY, FUEL LEVEL

44580-02403-000

Not available

GASKET

44583-35600-000 4458335600000

Not available

O RING

44596-35600-000 4459635600000

Not available

SCREW

02112-05167-000 0211205167000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK of your Suzuki of FZ. Let us know if you have any questions.
