CYLINDER (E25,E26)

CRANKCASE FOR SUZUKI FZ 50 1982

CRANKCASE COVER

Item numbers

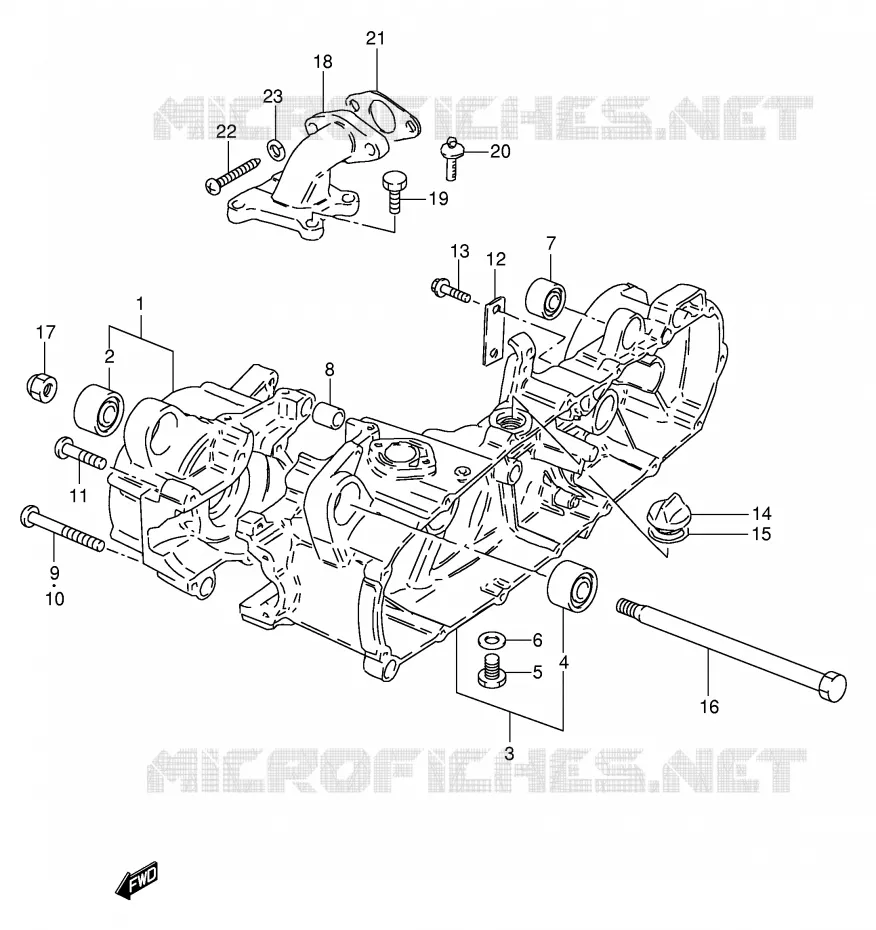

CRANKCASE Suzuki SCOOTER 50 FZ 1982 FZ50Z(E1)
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
19
19
20
21
22
22
23
1
CRANKCASE SET, RH

11302-02820-000   1130202820000

1130202820000
Not available
2
DISCONTINUED

09319-10027-000   0931910027000

0931910027000
Not available
3
CRANKCASE SET, LH

11301-02843-000   1130102843000

1130102843000
Not available
3
CRANKCASE SET, LH

11303-02820-000   1130302820000

1130302820000
Not available
3
CRANKCASE SET, LH

11304-02850-000   1130402850000

1130402850000
Not available
3
CRANKCASE SET, LH

11305-02850-000   1130502850000

1130502850000
Not available
4
BUSH
BUSH, ENGINE MOUNTING

09319-10050-000   0931910050000

0931910050000

Unit Price

5
CRANK DRAIN PLUG<br />PLUG, DRAIN
CRANK DRAIN PLUG
PLUG, DRAIN

09247-10001-000   0924710001000

0924710001000

Unit Price

6
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

7
BUSH(10.2X22.3X20)
BUSH, REAR SHOCK ABSORBER

09319-10032-000   0931910032000

0931910032000

Unit Price

8
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

9
SCREW<br />SCREW (6X80)
SCREW
SCREW (6X80)

02112-06807-000   0211206807000

0211206807000

Unit Price

10
SCREW (6X45)
SCREW (6X45)

02112-06457-000   0211206457000

0211206457000

Unit Price

11
SCREW (6X40)
SCREW (6X40)

02112-06407-000   0211206407000

0211206407000

Unit Price

12
PLATE, BREATHER

11329-02300-000   1132902300000

1132902300000
Not available
13
BOLT, BREATHER

09360-06012-000   0936006012000

0936006012000
Not available
14
PLUG SET
PLUG SET

09200-20810-000  

09200-20811-000
 0920020810000

Unit Price

15
DRIVE SHAFT O RING<br />O RING
DRIVE SHAFT O RING
O RING

09280-22003-000   0928022003000

0928022003000

Unit Price

16
BOLT (10X145)

09100-10161-000   0910010161000

0910010161000
Not available
17
NUT
NUT

08310-00107-000   0831000107000

0831000107000

Unit Price

18
VALVE ASSY, REED

13150-02430-000   1315002430000

1315002430000
Not available
18
VALVE ASSY, REED

13150-02441-000   1315002441000

1315002441000
Not available
18
VALVE ASSY, REED

13150-33B00-000   1315033B00000

1315033B00000
Not available
19
02162-0616C
BOLT, FRONT (6X16)

09128-06005-000  

0912806005000
Not available
20
SCREW(6X18)<br />SCREW
SCREW(6X18)
SCREW

09139-06026-000   0913906026000

0913906026000

Unit Price

21
GASKET, CARBURETOR

13125-46110-000   1312546110000

1312546110000

Unit Price

22
SCREW

02112-36203-000  

02112-3620A-000
 0211236203000

Unit Price

22
DISCONTINUED

09139-06007-000   0913906007000

0913906007000
Not available
23
WASHER,LOCK<br />LOCK WASHER
WASHER, LOCK
LOCK WASHER

08321-01067-000   0832101067000

0832101067000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of FZ. Let us know if you have any questions.

Genuine parts for Suzuki 50 FZ 1982
