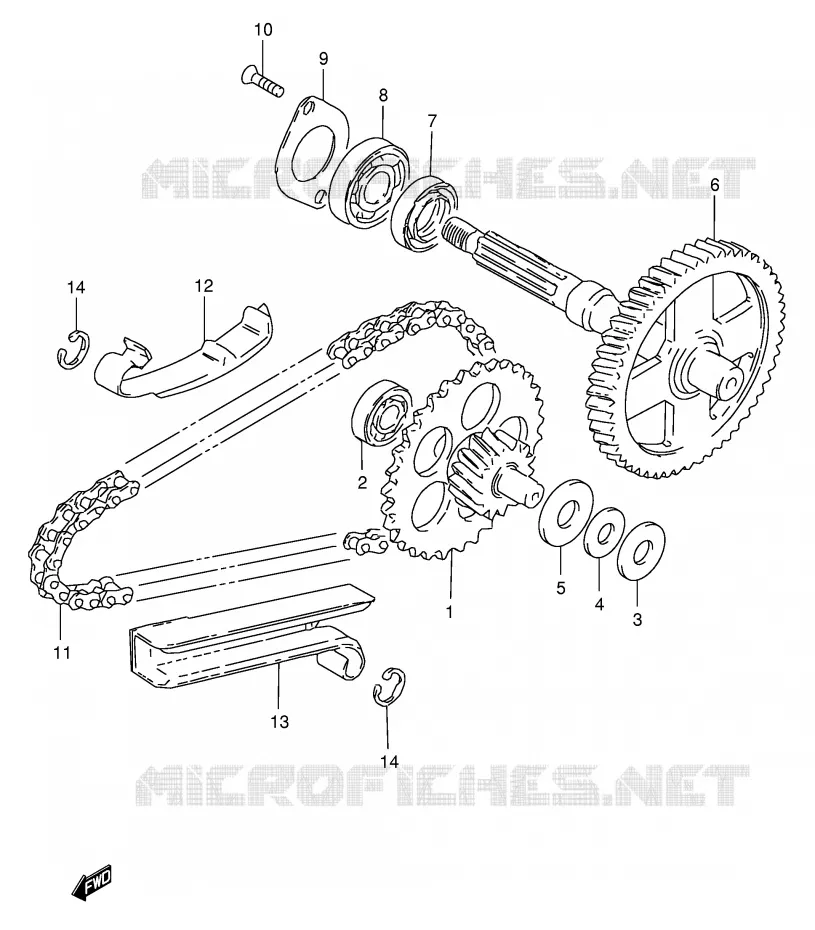

FINAL DRIVE FOR SUZUKI FZ 50 1986

KICK STARTER

Item numbers

GEAR, FINAL DRIVE (NT:17/31)

24210-02401-000 2421002401000

Not available

GEAR, FINAL DRIVE (NT:23/31)

24210-02410-000 2421002410000

Not available

GEAR, FINAL DRIVE (NT:26/31)

24210-33B00-000 2421033B00000

Not available

BALL BEARING
BEARING, RH

09262-12001-000 0926212001000

$26,97

Unit Price

TOP PINION WASHER
WASHER

08211-12241-000 0821112241000

$3,97

Unit Price

SHIM (T:0.2)

08221-12204-000 0822112204000

Not available

DISCONTINUE
SHIM (T:0.3)

09181-12006-000 0918112006000

Not available

DRIVESHAFT (NT:62)

24130-02400-000 2413002400000

Not available

DRIVESHAFT (NT:62)

24130-02402-000 2413002402000

Not available

DRIVESHAFT (NT:57)

24130-02411-000 2413002411000

Not available

DRIVESHAFT (NT:57)

24130-02412-000 2413002412000

Not available

DRIVESHAFT (NT:55)

24130-33B00-000 2413033B00000

Not available

OIL SEAL
OIL SEAL (20X35X7)

09283-20024-000 0928320024000

$8,97

Unit Price

SEAL, OIL(22X33X7)
OIL SEAL (22X33X7)

09283-22014-000 0928322014000

$11,97

Unit Price

BEARING (17X40X12)

08130-62037-000 0813062037000

Not available

BEARING (15X42X13)

08130-63027-000 0813063027000

Not available

RETAINER

24751-02400-000 2475102400000

Not available

SCREW 6X16
SCREW

02122-06167-000 0212206167000

$2,97

Unit Price

DISCONTINUE
CHAIN, DRIVE (270X64L)

27600-06430-064 2760006430064

Not available

DISCONTINUE
TENSIONER, CHAIN

27631-02300-000 2763102300000

Not available

GUIDE, CHAIN

27631-02451-000 2763102451000

Not available

08332-1108A
E RING

08332-11086-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FINAL DRIVE of your Suzuki of FZ. Let us know if you have any questions.
