FRONT WHEEL

HANDLEBAR FOR SUZUKI FZ 50 1986

REAR WHEEL

Item numbers

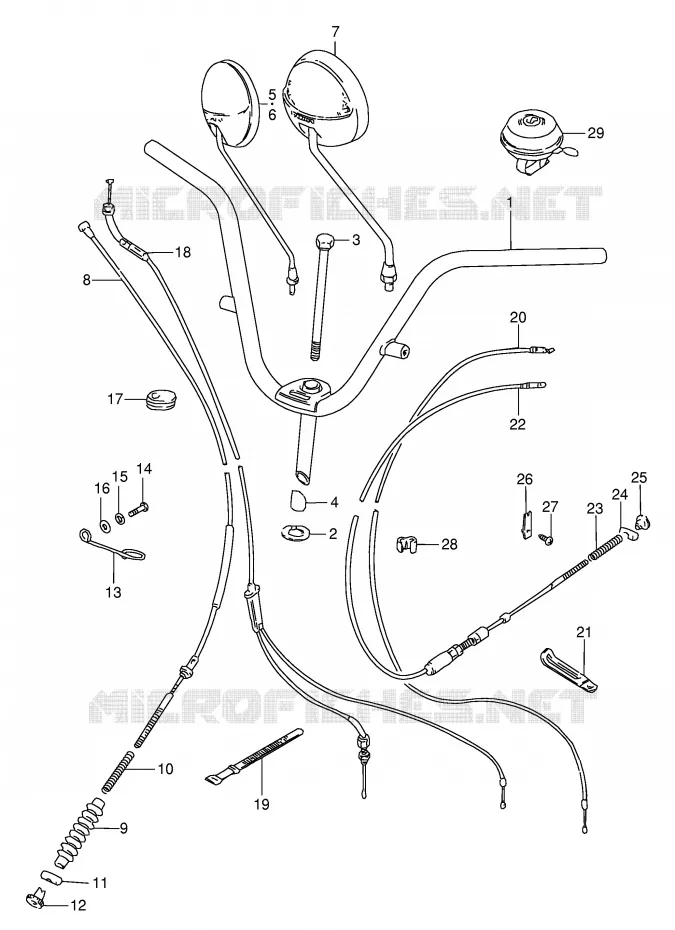

HANDLEBAR Suzuki SCOOTER 50 FZ 1986 FZ50G(E1)
1
2
3
4
5
5
6
7
7
8
8
9
10
11
12
13
14
14
14
15
16
17
18
19
20
21
21
21
21
22
23
24
25
26
27
27
28
29
1
HANDLEBAR

56110-02402-000   5611002402000

5611002402000
Not available
2
STOP, HANDLEBAR BRACKET

56134-17200-000   5613417200000

5613417200000
Not available
3
BOLT

09111-12003-000   0911112003000

0911112003000
Not available
4
STOP, EXPANDER

56251-02401-000   5625102401000

5625102401000
Not available
5
MIRROR ASSY, RR VIEW

56500-35011-000  

56500-35611-000
 5650035011000

Unit Price

6
MIRROR ASSY, REAR VIEW

56500-22011-000   5650022011000

5650022011000
Not available
7
MIRROR ASSY, REAR VIEW

56500-35601-000   5650035601000

5650035601000
Not available
8
DISCONTINUE

58100-02400-000  

5810002400000
Not available
9
BRK CABL RUBBER BOOT<br />DUST SEAL
BRK CABL RUBBER BOOT
DUST SEAL

09287-07001-000   0928707001000

0928707001000

Unit Price

10
BRAKE CABLE SPRING<br />SPRING
BRAKE CABLE SPRING
SPRING

09440-06003-000   0944006003000

0944006003000

Unit Price

11
BRAKE ROD LEVER PIN
PIN

09209-10001-000   0920910001000

0920910001000

Unit Price

12
BRAKE ROD ADJ NUT
NUT

09150-05101-000   0915005101000

0915005101000

Unit Price

13
CLAMP

58626-02401-000   5862602401000

5862602401000
Not available
14
SCREW
SCREW

02112-06127-000   0211206127000

0211206127000

Unit Price

14
SCREW

02112-76123-000  

02112-7612A-000
 0211276123000

Unit Price

14
SCREW

02112-76127-000   0211276127000

0211276127000
Not available
15
WASHER,LOCK<br />LOCK WASHER
WASHER, LOCK
LOCK WASHER

08321-01067-000   0832101067000

0832101067000

Unit Price

16
WASHER

08322-01067-000  

08322-0106A-000
 0832201067000

Unit Price

17
GROMMET

09308-06007-000   0930806007000

0930806007000
Not available
18
CABLE ASSY, THROTTLE

58300-02413-000   5830002413000

5830002413000
Not available
19
BAND

09407-12403-000   0940712403000

0940712403000
Not available
20
CABLE, STARTER

58410-02403-000   5841002403000

5841002403000
Not available
21
CLAMP(L:65)

09404-06403-000  

09404-06039-000
 0940406403000

Unit Price

21
CLAMP(L:80)

09404-06404-000  

09404-06415-000
 0940406404000

Unit Price

21
CLAMP(L:65)

09404-06413-000  

09404-06039-000
 0940406413000

Unit Price

21
CLAMP(L:80)

09404-06415-000  

09404-06426-000
 0940406415000

Unit Price

22
DISCONTINUE
CABLE, REAR BRAKE

58510-02423-000   5851002423000

5851002423000
Not available
23
SPRING

09440-06019-000   0944006019000

0944006019000
Not available
24
BRAKE ROD LEVER PIN
PIN

09209-10001-000   0920910001000

0920910001000

Unit Price

25
BRAKE ROD ADJ NUT
NUT

09150-05101-000   0915005101000

0915005101000

Unit Price

26
DISCONTINUE
PLATE, CABLE ADJUSTER

58570-02501-000   5857002501000

5857002501000
Not available
27
SCREW

02112-06203-000  

02112-0620A-000
 0211206203000

Unit Price

27
SCREW
SCREW

02112-06207-000   0211206207000

0211206207000

Unit Price

28
CABLE CLIP ****<br />CLIP, CABLE
CABLE CLIP ****
CLIP, CABLE

09408-00002-000   0940800002000

0940800002000

Unit Price

29
BELL ASSY

99800-39301-000   9980039301000

9980039301000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR of your Suzuki of FZ. Let us know if you have any questions.

Genuine parts for Suzuki 50 FZ 1986
