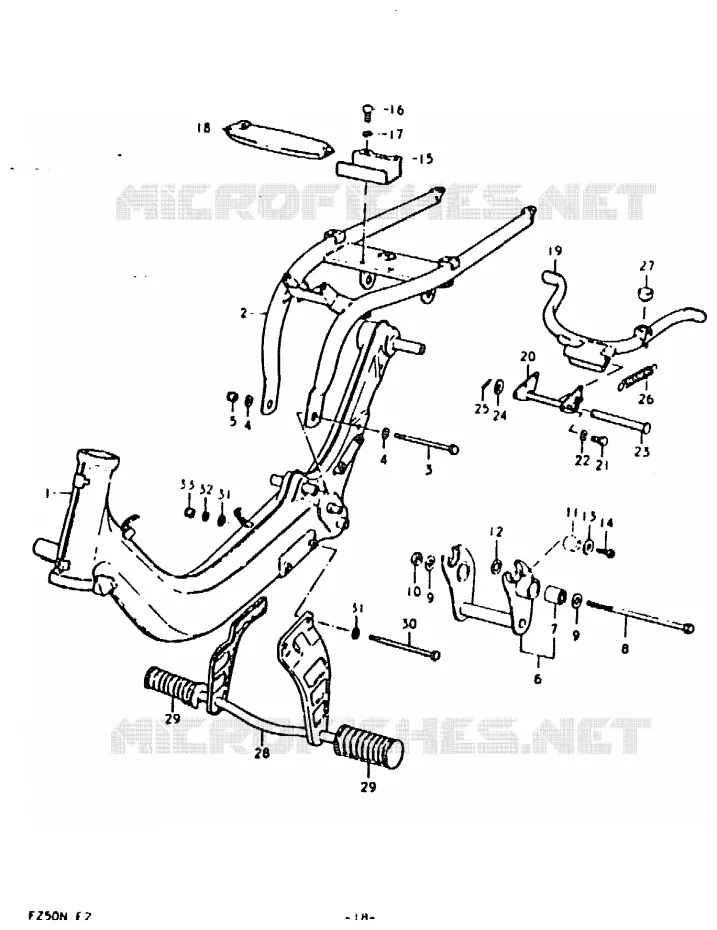

FRAME FOR SUZUKI FZ 50 1992

FUEL TANK

DISCONTINUED

41100-02401-00B 411000240100B

Not available

FRAME

41100-02401-07S 411000240107S

Not available

DISCONTINUED

41260-02400-00B 412600240000B

Not available

DISCONTINUED

41260-02400-07S 412600240007S

Not available

BOLT

01514-08908-000 0151408908000

Not available

WASHER

08322-11088-000

08322-01087-000

$2,97

Unit Price

NUT

08313-11088-000

08313-10087-000

$3,97

Unit Price

BRACKET SET, CRANKCASE

41100-02820-000 4110002820000

Not available

SWINGING ARM RR BUSH
BUSH

09319-10008-000 0931910008000

$16,97

Unit Price

DISCONTINUED

09100-10040-000 0910010040000

Not available

WASHER

09160-10037-000 0916010037000

Not available

NUT

09159-10011-000 0915910011000

$5,97

Unit Price

CUSHION

09320-10017-000 0932010017000

Not available

WASHER, 10.5X18X1

09160-10026-000

09160-10121-000

$3,97

Unit Price

WASHER(5.5X18X1)

09160-05003-000

09160-05045-000

$3,97

Unit Price

SCREW

02142-04088-000

02142-0408B-000

$2,97

Unit Price

HOLDER, TOOL

41550-02400-000 4155002400000

Not available

SCREW

02112-06128-000

02112-06127-000

$2,97

Unit Price

LOCK WASHER

08321-21068-000 0832121068000

Not available

DISCONTINUED

09800-00161-000 0980000161000

Not available

STAND, CENTER

42100-02401-000 4210002401000

Not available

BRACKET, CENTER STAND
BRACKET

42270-02400-000 4227002400000

$125,97

Unit Price

BOLT, ADJUSTER

01107-06208-000 0110706208000

Not available

LOCK WASHER

08321-31068-000 0832131068000

Not available

DISCONTINUE
SHAFT

42211-02400-000 4221102400000

Not available

WASHER

08322-11128-000

08322-01127-000

$2,97

Unit Price

04111-25208-000

04111-2520A-000

$2,97

Unit Price

DISCONTINUED

09443-14005-000 0944314005000

Not available

CENTER STAND STOP
CUSHION

09321-10002-000 0932110002000

$3,97

Unit Price

DISCONTINUED

43510-02400-00B 435100240000B

Not available

DISCONTINUED

43510-02400-07S 435100240007S

Not available

RUBBER, FR FOOTREST
RUBBER

43551-03001-000 4355103001000

$14,97

Unit Price

DISCONTINUED

09103-08023-000 0910308023000

Not available

WASHER

08322-11088-000

08322-01087-000

$2,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$2,97

Unit Price

NUT

08313-11088-000

08313-10087-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki of FZ. Let us know if you have any questions.
