REED VALVE - AIR CLEANER

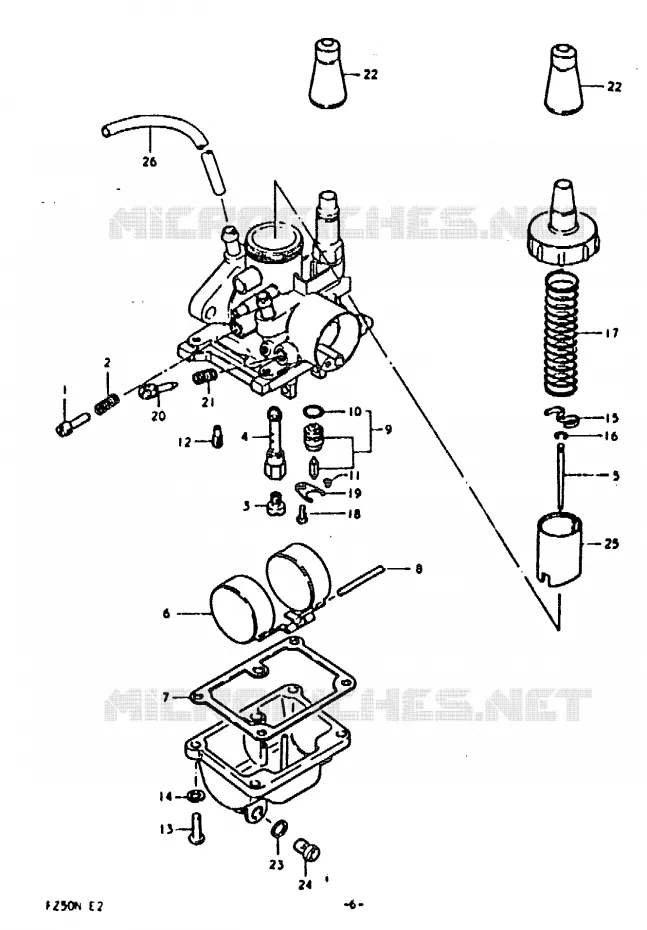

CARBURETOR FOR SUZUKI FZ 50 1992

MUFFLER

SCREW, THROTTLE STOP

13267-01010-000 1326701010000

$14,97

Unit Price

SPRING

13268-01010-000 1326801010000

$7,97

Unit Price

JET, MAIN ****
JET, MAIN

09491-57003-000 0949157003000

$22,97

Unit Price

JET, NEEDLE

09494-00234-000 0949400234000

Not available

NEEDLE, JET

13383-02400-000 1338302400000

Not available

DISCONTINUED

13252-02410-000 1325202410000

Not available

GASKET

13251-02410-000 1325102410000

$8,97

Unit Price

PIN, FLOAT
PIN

13254-20010-000 1325420010000

$5,97

Unit Price

VALVE ASSY, NEEDLE

13370-02411-000

13370-31C80-000

$92,97

Unit Price

DISCONTINUED

13374-47610-000 1337447610000

Not available

DISCONTINUED

13200-02420-000 1320002420000

Not available

CLIP

13377-02410-000 1337702410000

Not available

JET, PILOT (15)

09492-15002-000

09492-15015-000

$33,97

Unit Price

.SCREW

02112-04168-000 0211204168000

Not available

WASHER 4MM

08321-21048-000 0832121048000

Not available

.SEAT, SPRING

13581-01010-000 1358101010000

Not available

CLIP, NEEDLE

13394-12110-000

13394-40D00-000

$6,97

Unit Price

SPRING, THROTTLE VALVE

13573-46710-000 1357346710000

Not available

.SCREW

02112-03088-000 0211203088000

Not available

PLATE, NEEDLE VALVE FITTING
PLATE

13373-46710-000 1337346710000

$7,97

Unit Price

SCREW, AIR

13269-04010-000 1326904010000

$20,97

Unit Price

SPRING

13268-01010-000 1326801010000

$7,97

Unit Price

CAP
BOOT

13681-16601-000 1368116601000

$16,97

Unit Price

GASKET, DRAIN, PLUG
GASKET

13249-05010-000 1324905010000

$3,97

Unit Price

PLUG
PLUG, DRAIN

13247-05010-000 1324705010000

$11,97

Unit Price

VALVE, THROTTLE

13551-02400-000 1355102400000

Not available

HOSE

13683-45050-000 1368345050000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of FZ. Let us know if you have any questions.
