Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FOOTREST

LOWER FAIRING (MODEL V / W / X) FOR SUZUKI KATANA 50 2000

LOWER FAIRING (model Y)

Item numbers

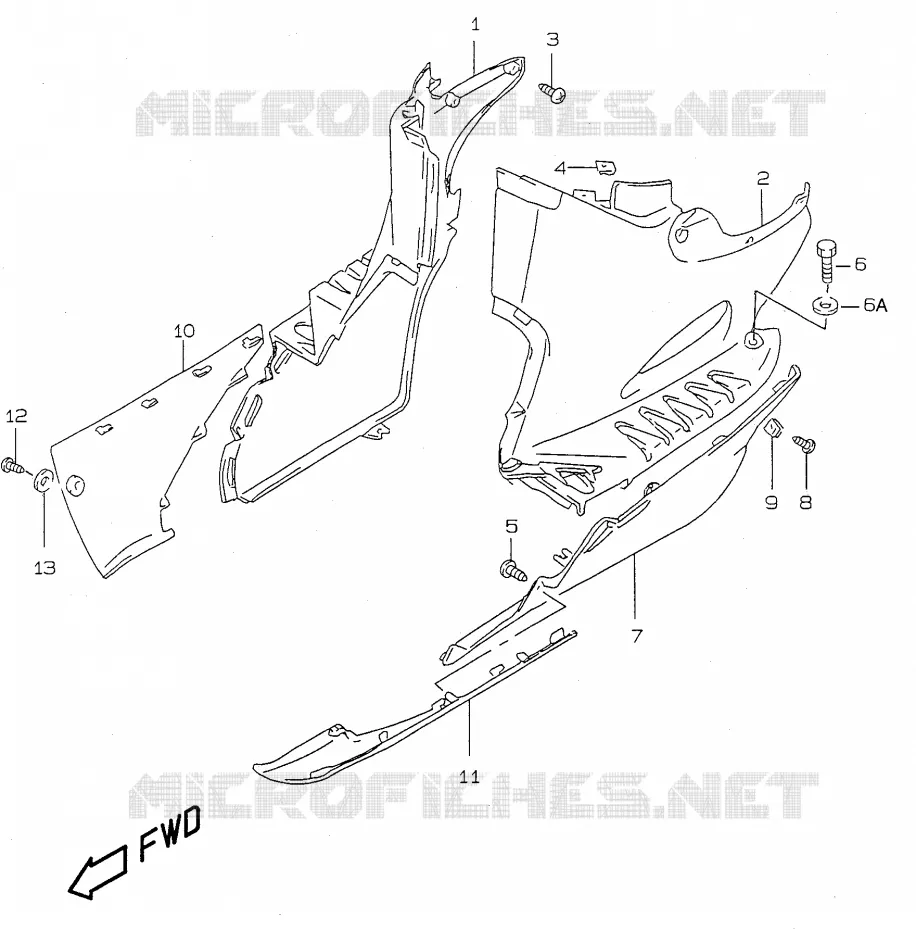

LOWER FAIRING (model V/W/X) Suzuki SCOOTER 50 KATANA 2000 AY50Y(V/W/X/Y)
1
1
2
2
3
3
4
4
5
5
6
6
6A
6A
7
7
8
8
9
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
1
SHIELD, LEG SIDE RH

48161-35E00-NE2   4816135E00NE2

4816135E00NE2
Not available
2
SHIELD, LEG SIDE LH

48171-35E00-NE2   4817135E00NE2

4817135E00NE2
Not available
3
SCREW, INNER
SCREW, INNER

D3111-05165-000   D311105165000

D311105165000
Not available
4
NUT, HELMET BOX

D91FK-48212-000   D91FK48212000

D91FK48212000
Not available
5
SCREW, INNER LH
SCREW, INNER LH

D3111-05165-000   D311105165000

D311105165000
Not available
6
DISCONTINUE

D1507-06205-000  

D150706205000
Not available
6A
D8322-91065

D8322-91065-000  

D832291065000
Not available
7
SHIELD, LEG SIDE LOWER LH

48172-35E00-NE2   4817235E00NE2

4817235E00NE2
Not available
8
SCREW, LEG SIDE LOWER LH

D3111-05135-000   D311105135000

D311105135000
Not available
9
NUT

D91FK-48212-000   D91FK48212000

D91FK48212000
Not available
10
SHIELD, LEG RR SIDE RH (WHITE)

48141-35E00-0JW   4814135E000JW

4814135E000JW
Not available
10
SHIELD, LEG RR SIDE RH (RED)

48141-35E00-28V   4814135E0028V

4814135E0028V
Not available
10
SHIELD, LEG RR SIDE RH (BLACK)

48141-35E00-33J   4814135E0033J

4814135E0033J
Not available
10
SHIELD, LEG RR SIDE RH (BLUE)

48141-35E00-Y0P   4814135E00Y0P

4814135E00Y0P
Not available
10
SHIELD, LEG RR SIDE RH (RED)

48141-35E00-Y0W   4814135E00Y0W

4814135E00Y0W
Not available
10
SHIELD, LEG RR SIDE RH (SILVER

48141-35E00-Y2D   4814135E00Y2D

4814135E00Y2D
Not available
10
SHIELD, LEG RR SIDE RH (YELLOW

48141-35E00-Y3G   4814135E00Y3G

4814135E00Y3G
Not available
10
SHIELD, LEG RR SIDE RH (BLUE)

48141-35E00-Y3K   4814135E00Y3K

4814135E00Y3K
Not available
10
SHIELD, LEG RR SIDE RH (BLACK)

48141-35E00-Y7L   4814135E00Y7L

4814135E00Y7L
Not available
11
SHIELD, LEG RR SIDE LH (WHITE)

48151-35E00-0JW   4815135E000JW

4815135E000JW
Not available
11
SHIELD, LEG RR SIDE LH (RED)

48151-35E00-28V   4815135E0028V

4815135E0028V
Not available
11
SHIELD, LEG RR SIDE LH (BLACK)

48151-35E00-33J   4815135E0033J

4815135E0033J
Not available
11
SHIELD, LEG RR SIDE LH (BLUE)

48151-35E00-Y0P   4815135E00Y0P

4815135E00Y0P
Not available
11
SHIELD, LEG RR SIDE LH (RED)

48151-35E00-Y0W   4815135E00Y0W

4815135E00Y0W
Not available
11
SHIELD, LEG RR SIDE LH (SILVER

48151-35E00-Y2D   4815135E00Y2D

4815135E00Y2D
Not available
11
SHIELD, LEG RR SIDE LH (YELLOW

48151-35E00-Y3G   4815135E00Y3G

4815135E00Y3G
Not available
11
SHIELD, LEG RR SIDE LH (BLUE)

48151-35E00-Y3K   4815135E00Y3K

4815135E00Y3K
Not available
11
SHIELD, LEG RR SIDE LH (BLACK)

48151-35E00-Y7L   4815135E00Y7L

4815135E00Y7L
Not available
12
SCREW, REAR SIDE LEG FRONT
SCREW, REAR SIDE LEG FRONT

D3111-05165-000   D311105165000

D311105165000
Not available
13
WASHER

D8322-01055-000  

08322-0105B-000
 D832201055000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LOWER FAIRING (model V/W/X) of your Suzuki of KATANA. Let us know if you have any questions.
