REAR FENDER (model K1)

SEAT (MODEL V) FOR SUZUKI KATANA 50 2000

SEAT (model W / X) model W P26, P34

Item numbers

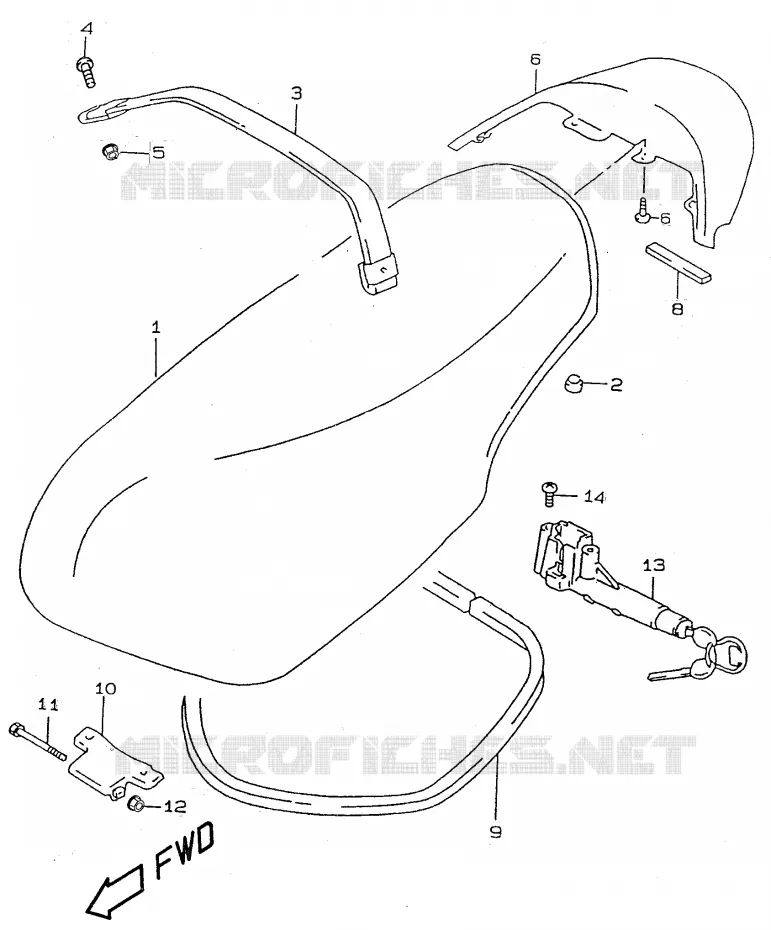

SEAT (model V) Suzuki SCOOTER 50 KATANA 2000 AY50Y(V/W/X/Y)
1
1
1
1
2
2
3
3
4
4
4
4
5
5
6
6
6
6
8
8
9
9
10
10
11
11
12
12
13
13
1
SEAT SET

45100-35E00-000   4510035E00000

4510035E00000
Not available
1
SEAT SET

45100-35E10-000   4510035E10000

4510035E10000
Not available
2
CUSHION
CUSHION

09321-10012-000   0932110012000

0932110012000

Unit Price

3
BAND, SEAT

45180-35E00-NE2   4518035E00NE2

4518035E00NE2
Not available
4
SCREW

D2116-06255-000   D211606255000

D211606255000
Not available
5
NUT 6MM

D8310-00065-000  

08316-10063-000
 D831000065000

Unit Price

6
SCREW

D3111-05135-000   D311105135000

D311105135000
Not available
7
COVER, SEAT TAIL

45551-35E00-28C   4555135E0028C

4555135E0028C
Not available
7
COVER, SEAT TAIL

45551-35E00-E01   4555135E00E01

4555135E00E01
Not available
8
CUSHION, COVER

45555-35E00-000   4555535E00000

4555535E00000
Not available
9
MOLDING, SEAT

45211-35E00-000   4521135E00000

4521135E00000
Not available
10
BRACKET, FRONT HINGE

45285-02E00-E0A   4528502E00E0A

4528502E00E0A
Not available
11
BOLT, FRONT

45215-09E01-E0N   4521509E01E0N

4521509E01E0N
Not available
12
NUT 6MM

D8310-00065-000  

08316-10063-000
 D831000065000

Unit Price

13
LOCK ASSY, SEAT

45700-09EF0-000   4570009EF0000

4570009EF0000
Not available
14
SCREW

D2116-06165-000  

02112-0616A-000
 D211606165000

Unit Price

14
CARRIER SET

46311-35E00-000   4631135E00000

4631135E00000
Not available
14
TOP CASE

99000-35E00-KAT   9900035E00KAT

9900035E00KAT
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT (model V) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2000
