Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKSHAFT (MODEL AY50WR K1 / K2 / AY50W K3 / K4 )

CRANKSHAFT (MODEL AY50 K1 / K2) FOR SUZUKI KATANA 50 2003

CRANKSHAFT (MODEL AY50 K3 / K4)

Item numbers

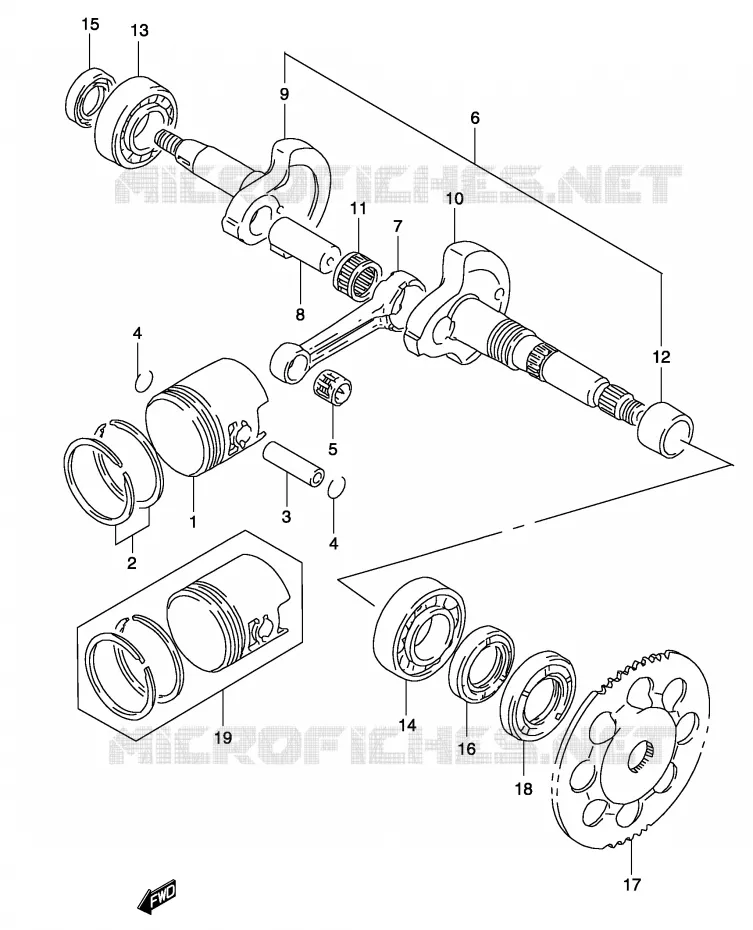

CRANKSHAFT (MODEL AY50 K1/K2) Suzuki SCOOTER 50 KATANA 2003 AY50WK3(P19)
1
2
3
4
4
5
6
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
1
PISTON (41.00MM)
PISTON

12110-40D10-0F0   1211040D100F0

1211040D100F0

Unit Price

2
RING SET, PISTON

12140-29C40-000   1214029C40000

1214029C40000

Unit Price

3
PIN, PISTON

12151-35E00-000   1215135E00000

1215135E00000

Unit Price

4
CIRCLIP

09381-10006-000  

0938110006000
Not available
5
BEARING, PISTON PIN

09263-10018-K00   0926310018K00

0926310018K00
Not available
6
CRANKSHAFT ASSY

12200-35E60-0A1   1220035E600A1

1220035E600A1
Not available
6
CRANKSHAFT ASSY

12200-35E70-0A1   1220035E700A1

1220035E700A1
Not available
7
ROD, CONNECTING

12161-35E60-000   1216135E60000

1216135E60000
Not available
8
PIN, CRANK

12211-35E60-000   1221135E60000

1221135E60000
Not available
9
CRANKSHAFT, RH

12221-35E60-000   1222135E60000

1222135E60000
Not available
10
CRANKSHAFT, LH

12261-35E60-000   1226135E60000

1226135E60000
Not available
10
CRANKSHAFT, LH

12261-35E70-000   1226135E70000

1226135E70000
Not available
11
BEARING(16X22X11.8)

09263-16031-000  

09263-16034-000
 0926316031000

Unit Price

12
SPACER

09180-18013-000   0918018013000

0918018013000
Not available
13
BEARING (20X47X14) RH

09262-20140-K00   0926220140K00

0926220140K00
Not available
14
BEARING(25X52X13)
BEARING (25X52X13) LH

09262-25100-0A0   09262251000A0

09262251000A0

Unit Price

15
OIL SEAL (17X27X6) RH

09283-17019-F00   0928317019F00

0928317019F00
Not available
16
OIL SEAL (25X37X6) LH

09283-25084-F00   0928325084F00

0928325084F00
Not available
17
GEAR, STARTER

12622-37B01-000   1262237B01000

1262237B01000

Unit Price

18
SEAL, OIL(24X43X6)
OIL SEAL (24X43X6)

09284-24001-000   0928424001000

0928424001000

Unit Price

19
DISCONTINUE
PISTON SET (OS:0.5)

12100-40D10-050   1210040D10050

1210040D10050
Not available
19
PISTON SET (OS:1.0)

12100-40D10-100   1210040D10100

1210040D10100
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT (MODEL AY50 K1/K2) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2003
