Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER (MODEL AY50W K3 / K4)

CYLINDER (MODEL AY50 K1 / K2) FOR SUZUKI KATANA 50 2003

CYLINDER (MODEL AY50 K3 / K4)

Item numbers

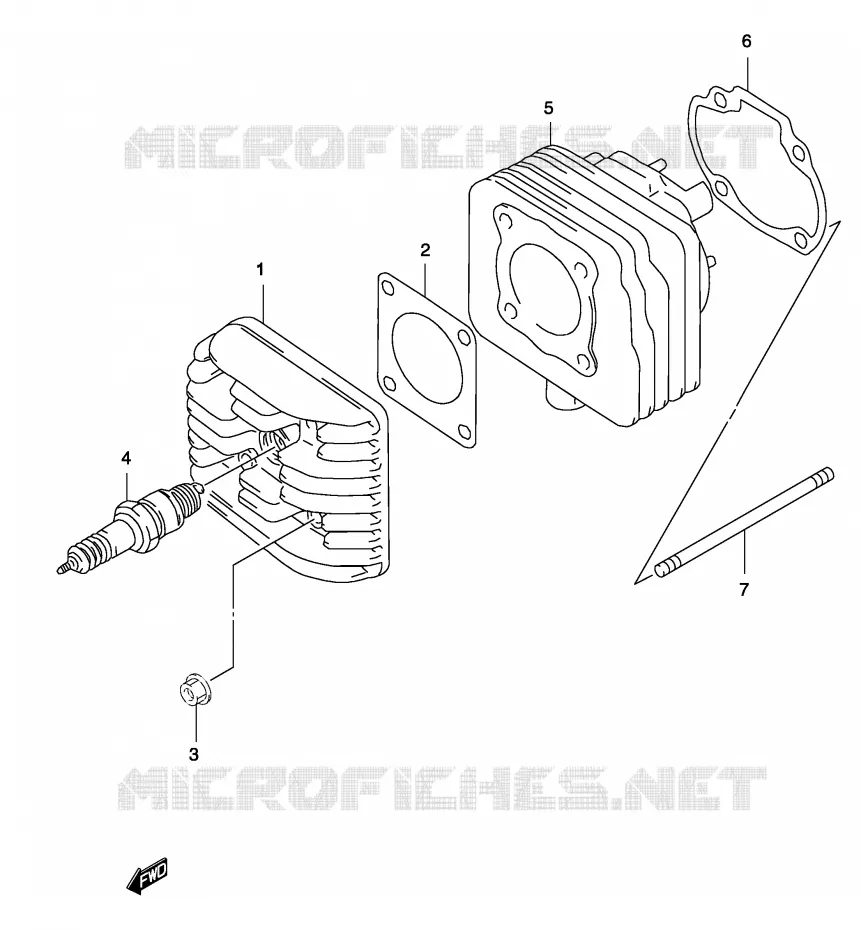

CYLINDER (MODEL AY50 K1/K2) Suzuki SCOOTER 50 KATANA 2003 AY50WK3(P19)
1
2
2
3
4
4
4
4
5
5
6
7
1
HEAD, CYLINDER

11111-37B03-000  

1111137B03000
Not available
2
GASKET, CYLINDER HEAD

11141-02110-000  

11141-43E00-000
 1114102110000

Unit Price

2
GASKET

11141-09E10-000   1114109E10000

1114109E10000
Not available
3
NUT

D8316-10065-000   D831610065000

D831610065000
Not available
4
BPR7HS, NGK

09482-00244-111  

09482-00255-000
 0948200244111

Unit Price

4
SPARK PLUG (DENSO, W20FPR)

09482-00243-111   0948200243111

0948200243111
Not available
4
SPARK PLUG (NGK, BPR6HS)

09482-00281-000   0948200281000

0948200281000
Not available
5
CYLINDER

11211-25E10-0F0   1121125E100F0

1121125E100F0
Not available
5
CYLINDER

11211-37B50-0F0   1121137B500F0

1121137B500F0
Not available
6
GASKET, CYLINDER
GASKET

11241-03A10-000   1124103A10000

1124103A10000

Unit Price

7
STUD BOLT

D1427-06855-000   D142706855000

D142706855000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER (MODEL AY50 K1/K2) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2003
