HANDLEBAR FAIRING (MODEL AY50 K4)

REAR FENDER (MODEL K1 / K2) FOR SUZUKI KATANA 50 2004

REAR FENDER (MODEL K3 / K4)

Item numbers

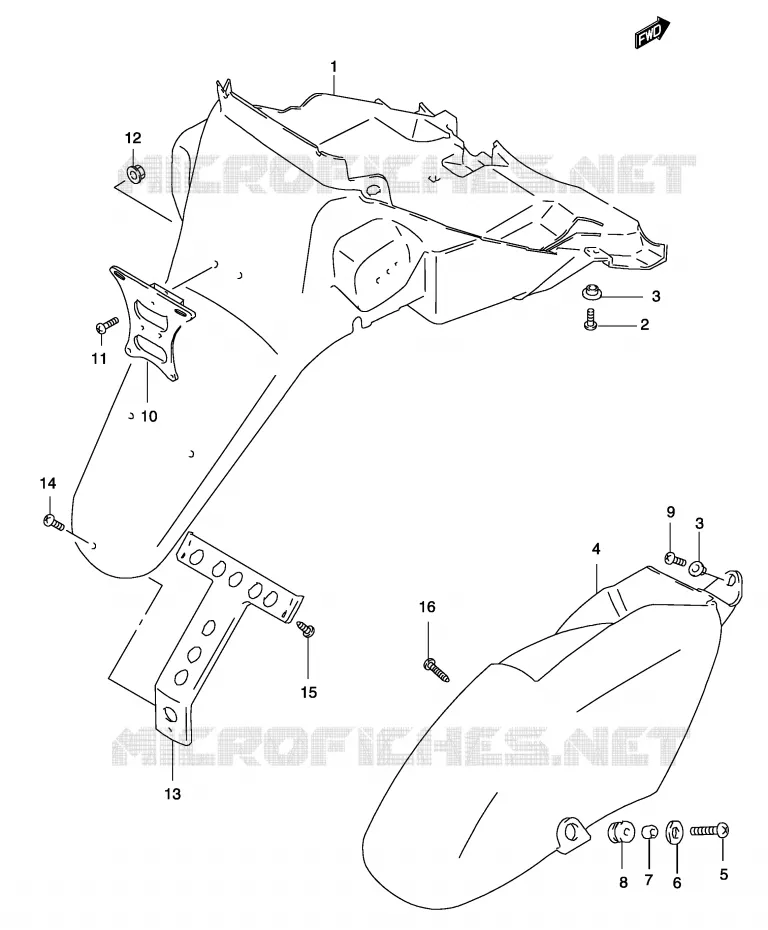

REAR FENDER (MODEL K1/K2) Suzuki SCOOTER 50 KATANA 2004 AY50K4(P19)
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
1
FENDER, REAR UPPER

63111-35E20-NE2   6311135E20NE2

6311135E20NE2
Not available
2
SCREW

D2116-06165-000  

02112-0616A-000
 D211606165000

Unit Price

3
WASHER

09169-06034-E0N   0916906034E0N

0916906034E0N
Not available
4
FENDER, REAR LOWER

63112-30F00-NE2   6311230F00NE2

6311230F00NE2
Not available
4
FENDER, REAR LOWER

63112-35E00-NE2   6311235E00NE2

6311235E00NE2
Not available
5
SCREW

D2116-06165-000  

02112-0616A-000
 D211606165000

Unit Price

6
WASHER

D8222-91065-000   D822291065000

D822291065000
Not available
7
SPACER

09180-06259-E0N   0918006259E0N

0918006259E0N
Not available
8
CUSHION

09320-07EAA-000   0932007EAA000

0932007EAA000
Not available
9
SCREW

D2116-06165-000  

02112-0616A-000
 D211606165000

Unit Price

10
BRACKET, LICENSE PLATE

35927-02E00-EE3   3592702E00EE3

3592702E00EE3
Not available
11
SCREW

D2116-06125-000   D211606125000

D211606125000
Not available
12
NUT

D8316-10065-000   D831610065000

D831610065000
Not available
13
BRACKET COMP, REAR FENDER

63240-35E00-EE3   6324035E00EE3

6324035E00EE3
Not available
14
SCREW

D2116-06125-000   D211606125000

D211606125000
Not available
15
SCREW
SCREW

D3111-05165-000   D311105165000

D311105165000
Not available
16
SCREW

D3111-05195-000   D311105195000

D311105195000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER (MODEL K1/K2) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2004
