CRANKCASE COVER

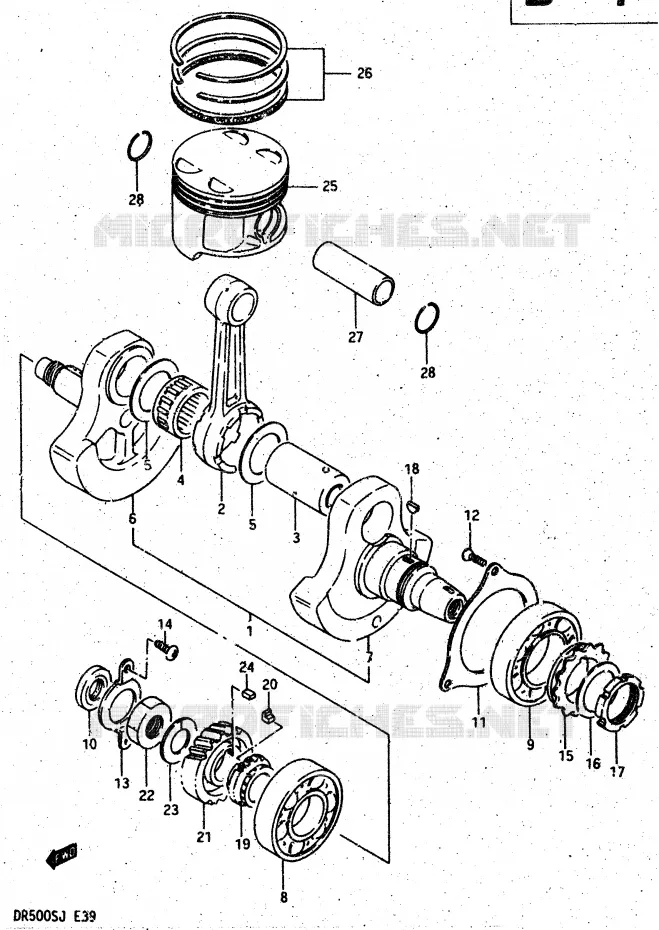

CRANKSHAFT FOR SUZUKI DR 500 1987

CRANK BALANCER

CRANKSHAFT ASSY

12200-15A00-000 1220015A00000

Not available

ROD, CONNECTING

12161-15A01-000 1216115A01000

Not available

DISCONTINUE
PIN, CRANK

12210-14A01-000 1221014A01000

Not available

BEARING(37X47X25)

09263-37002-000

09263-37004-0B0

$69,97

Unit Price

WASHER 37X55X1
WASHER

09160-37006-000 0916037006000

$14,97

Unit Price

CRANKSHAFT, RH

12221-15A00-000 1222115A00000

Not available

CRANKSHAFT, LH

12261-15A00-000 1226115A00000

Not available

BEARING CRANKSHAFT R
BEARING, RH (35X80X21)

09262-35009-000 0926235009000

$145,97

Unit Price

BEARING, CRANKSHAFT, L

09262-45003-000

09262-45011-000

$108,97

Unit Price

CR SHAFT OIL SEAL
OIL SEAL, RH

09282-16002-000 0928216002000

$16,97

Unit Price

DISCONTINUE
PLATE, LH

12541-37400-000 1254137400000

Not available

SCREW 6X16
SCREW

02122-06167-000 0212206167000

$2,97

Unit Price

RETAINER, CRANKSHAFT BEARING, R
PLATE, RH

12548-37400-000 1254837400000

$9,97

Unit Price

SCREW, INTAKE PORT

02112-05088-000 0211205088000

Not available

SPROCKET, BALANCER DRIVE

12662-14A10-000 1266214A10000

Not available

WASHER

09164-40003-000 0916440003000

Not available

NUT

12664-37401-000 1266437401000

Not available

KEY

08341-31039-000 0834131039000

$3,97

Unit Price

DISCONTINUE
SPROCKET, DRIVE (NT:21)

12731-37400-000 1273137400000

Not available

KEY, SPROCKET
KEY

12749-32400-000 1274932400000

$20,97

Unit Price

GEAR, PRIMARY DRIVE (NT:29)

21111-14A00-000 2111114A00000

Not available

NUT CLUTCH SHOE

09140-20008-000

09140-20013-000

$7,97

Unit Price

LOCK WASHER

09164-20003-000 0916420003000

$5,97

Unit Price

KEY, GEAR

09421-07002-000 0942107002000

Not available

DISCONTINUE
PISTON

12111-15A00-000 1211115A00000

Not available

DISCONTINUE

12111-15A00-050

Not available

DISCONTINUE

12111-15A00-100

Not available

RING SET, PISTON

12140-14A31-000

12140-14A32-000

$95,97

Unit Price

RING SET, PISTON (OS:0.5)

12140-14A31-050 1214014A31050

Not available

RING SET, PISTON (OS:1.0)

12140-14A31-100 1214014A31100

Not available

PIN, PISTON

12151-14A01-000 1215114A01000

$22,97

Unit Price

CIRCLIP

09381-23003-000 0938123003000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of DR. Let us know if you have any questions.
