FRAME

FOOTREST FOR SUZUKI DR 500 1987

FUEL TANK (DR500SG / SH / SJ) REFER TO FIG32 (E-11) FOR DR500RG/RH

DISCONTINUE

43510-14A00-10V

Not available

BAR, FOOTREST RH (BLUE)

43510-14A00-19F 4351014A0019F

Not available

BAR, FOOTREST LH (WHITE)

43520-14A00-10V 4352014A0010V

Not available

BAR, FOOTREST LH (BLUE)

43520-14A00-19F 4352014A0019F

Not available

FOOTREST, FRONT RH (WHITE)

43550-14A00-10V 4355014A0010V

Not available

FOOTREST, FRONT RH (BLUE)

43550-14A00-19F 4355014A0019F

Not available

FOOTREST, FRONT LH (WHITE)

43560-14A00-10V 4356014A0010V

Not available

FOOTREST, FRONT LH (BLUE)

43560-14A00-19F 4356014A0019F

Not available

FR FOOT REST PIN
PIN

09200-10008-000 0920010008000

$5,97

Unit Price

04111-20208-000

04111-2020A-000

$2,97

Unit Price

DISCONTINUE

09448-15008-000

Not available

FR FOOTREST SPRING
SPRING, LH

09448-15004-000 0944815004000

$3,97

Unit Price

DISCONTINUE
BOLT

09103-10045-000 0910310045000

Not available

WASHER, 10.1X23X2.30

09160-10059-000

09160-10124-000

$3,97

Unit Price

BUSH

09319-10033-000 0931910033000

$10,97

Unit Price

FOOTREST, PILLION RH (BLUE)

43600-14A00-19F 4360014A0019F

Not available

FOOTREST, PILLION RH (WHITE)

43600-14A10-10V 4360014A1010V

Not available

FOOTREST, PILLION RH (BLUE)

43600-14A10-34S 4360014A1034S

Not available

FOOTREST, PILLION LH (BLUE)

43700-14A00-19F 4370014A0019F

Not available

FOOTREST, PILLION LH (WHITE)

43700-14A20-10V 4370014A2010V

Not available

FOOTREST, PILLION LH (BLUE)

43700-14A20-34S 4370014A2034S

Not available

HOLDER, RH (WHITE)

43650-14A00-10V 4365014A0010V

Not available

HOLDER, RH (BLUE)

43650-14A00-19F 4365014A0019F

Not available

HOLDER, LH (WHITE)

43750-14A00-10V 4375014A0010V

Not available

HOLDER, LH (BLUE)

43750-14A00-19F 4375014A0019F

Not available

.BAR, RH

43610-14A00-000 4361014A00000

Not available

BAR, RH

43610-14A10-000 4361014A10000

Not available

BAR, LH

43620-14A00-000 4362014A00000

Not available

BAR, LH

43620-14A10-000 4362014A10000

Not available

43612-14A00

43612-14A00-000

Not available

.WASHER

43631-14A00-000 4363114A00000

Not available

DISCONTINUE
WASHER

43631-14A10-000 4363114A10000

Not available

09200-06010-000 0920006010000

$3,97

Unit Price

04111-20158-000

04111-2015A-000

$2,97

Unit Price

BOLT

07110-08205-000

07130-0820B-000

$5,97

Unit Price

BOLT

07110-08208-000

07130-08207-000

$5,97

Unit Price

WASHER, LOCK

08321-21084-000

08321-0108B-000

$3,97

Unit Price

.NUT

08310-11085-000 0831011085000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

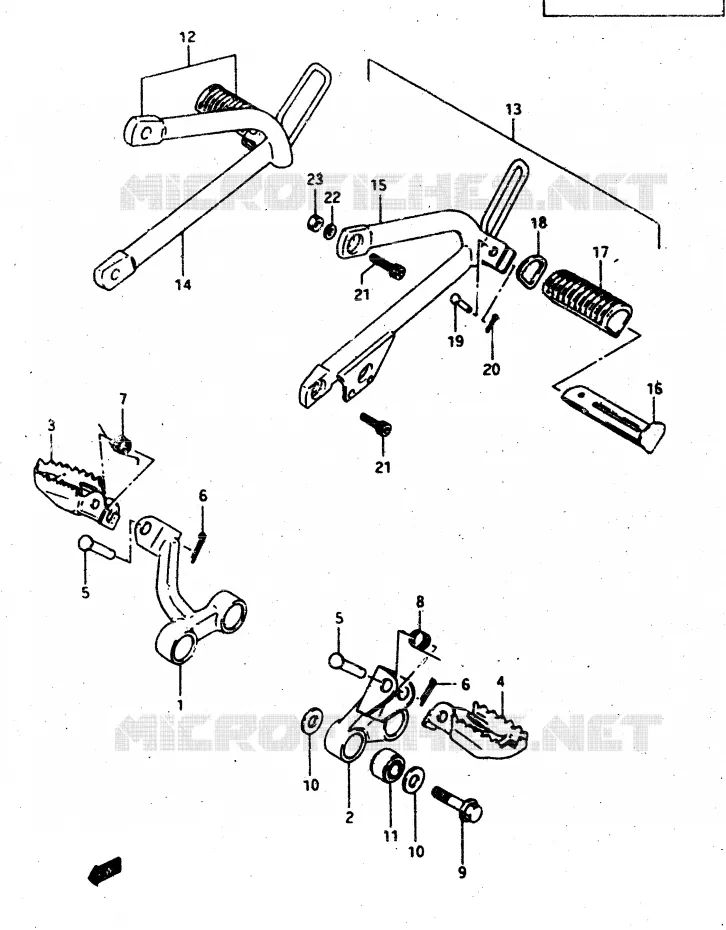

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki of DR. Let us know if you have any questions.
