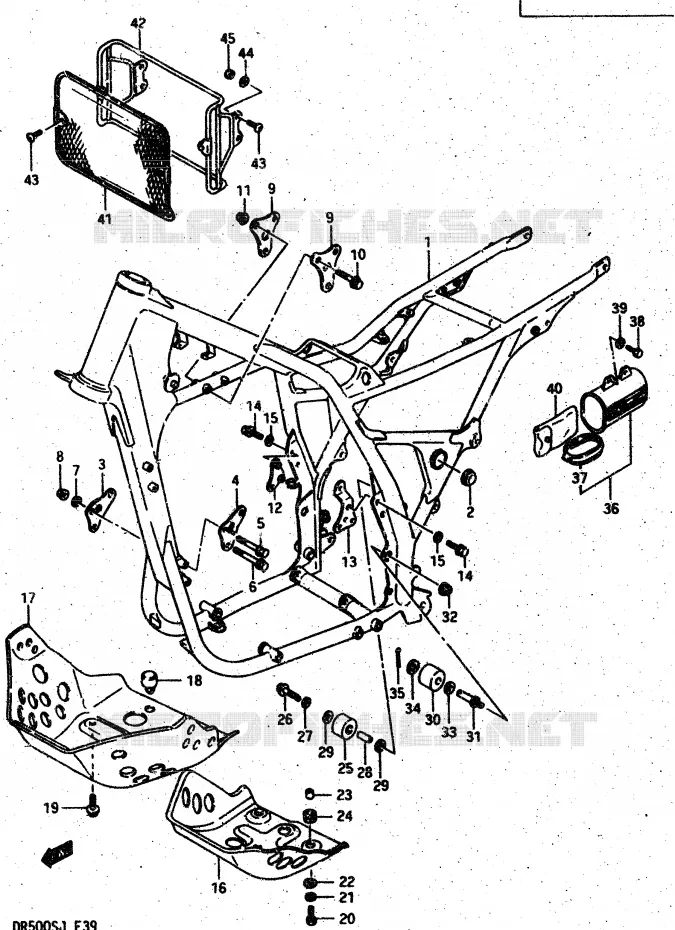

FRAME FOR SUZUKI DR 500 1987

FOOTREST

FRAME (BLACK)

41100-14A00-019 4110014A00019

Not available

FRAME (BLUE)

41100-14A00-19F 4110014A0019F

Not available

FRAME (BLACK)

41100-14A30-019 4110014A30019

Not available

FRAME (BLUE)

41100-14A30-34S 4110014A3034S

Not available

FRAME (BLACK)

41100-14C00-019 4110014C00019

Not available

FRAME (BLACK)

41100-14C00-34S 4110014C0034S

Not available

FRAME (WHITE)

41100-15A00-10V 4110015A0010V

Not available

FRAME (BLUE)

41100-15A30-34S 4110015A3034S

Not available

CAP, CUSHION LEVER

41499-14A00-10V

41499-14A00-019

$7,97

Unit Price

CAP, CUSHION LEVER (BLUE)

41499-14A00-19F 4149914A0019F

Not available

PLATE, FRONT RH (BLACK)

41911-14A00-291 4191114A00291

Not available

PLATE, FRONT LH (BLACK)

41921-14A00-291 4192114A00291

Not available

ENGINE MOUNT BOLT
BOLT, UPPER

09103-08037-000 0910308037000

$9,97

Unit Price

BOLT, LOWER

09103-08063-000 0910308063000

Not available

8 MM LOCK WASHER

08321-31087-000

08321-01087-000

$3,97

Unit Price

NUT

08319-21088-000

08319-2108A-000

$3,97

Unit Price

PLATE, UPPER (BLACK)

41991-14A00-291 4199114A00291

Not available

BOLT

01517-08508-000

01550-08507-000

$6,97

Unit Price

NUT

08319-31087-000 0831931087000

Not available

PLATE, REAR RH (BLACK)

41940-14A00-291 4194014A00291

Not available

PLATE, REAR LH (BLACK)

41950-14A00-291 4195014A00291

Not available

BOLT

01517-08207-000

01550-08207-000

$5,97

Unit Price

8 MM LOCK WASHER

08321-31087-000

08321-01087-000

$3,97

Unit Price

DISCONTINUE

42511-14A01-000

Not available

DISCONTINUE

42511-14A10-000

Not available

CUSHION

09321-10017-000 0932110017000

$12,97

Unit Price

BOLT

01107-06207-000

01500-06207-000

$3,97

Unit Price

BOLT

01517-08167-000

01550-0816B-000

$4,97

Unit Price

WASHER, LOCK

08321-31067-000

08321-01067-000

$2,97

Unit Price

WASHER(6.5X20X1.6)

09160-06020-000

09160-06066-000

$3,97

Unit Price

SPACER, 6.5X9X7

09180-07005-000

09180-06259-000

$3,97

Unit Price

CUSHION (8.5X20X8)

09320-08021-000

09320-08510-000

$4,97

Unit Price

ROLLER, CHAIN

43910-01B00-000

43910-27C11-000

$73,97

Unit Price

BOLT

01107-08408-000

01500-08403-000

$5,97

Unit Price

8 MM LOCK WASHER

08321-31087-000

08321-01087-000

$3,97

Unit Price

SPACER 8X6X12X25.5

09180-08119-000

09180-08156-000

$11,97

Unit Price

WASHER, THRUST

08211-08161-000

09181-08167-000

$3,97

Unit Price

DISCONTINUE
ROLLER, CHAIN LOWER

43911-14200-000 4391114200000

Not available

DISCONTINUE
BOLT, LOWER

43915-14A00-000 4391514A00000

Not available

NUT

08319-31107-000 0831931107000

$4,97

Unit Price

WASHER

08322-21128-000

08322-01127-000

$2,97

Unit Price

DISCONTINUE
WASHER, OUTER

49317-15A00-000 4931715A00000

Not available

04111-25208-000

04111-2520A-000

$2,97

Unit Price

DISCONTINUE
HOLDER, TOOL

41550-37210-000 4155037210000

Not available

CAP, HOLDER
CAP

41552-37210-000 4155237210000

$13,97

Unit Price

BOLT

01107-06165-000

01500-06163-000

$3,97

Unit Price

WASHER

09160-06039-000

09160-06109-000

$3,97

Unit Price

09800-21024
TOOL ASSY

09800-00242-000

Not available

GUARD, HEADLAMP

48510-14A01-000 4851014A01000

Not available

BRACE, HEADLAMP GUARD

48520-14A00-000 4852014A00000

Not available

SCREW

02142-06125-000

02142-0612B-000

$2,97

Unit Price

WASHER

09160-06069-000

09160-06052-000

$3,97

Unit Price

NUT

08319-21065-000

08319-21063-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki of DR. Let us know if you have any questions.
