OIL PUMP

RADIATOR FOR SUZUKI GS-E 500 1990

CLUTCH

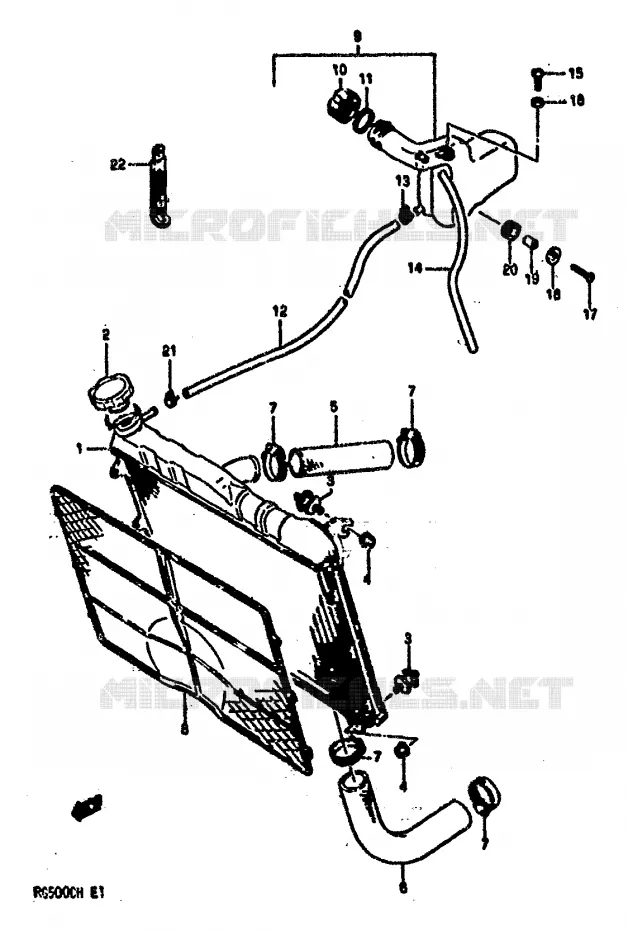

RADIATOR Suzuki MOTO 500 GS-E 1990 GS500EL(E1)
1
RADIATOR

17710-20A00-000   1771020A00000

1771020A00000
Not available
2
CAP, RADIATOR(1.1)

17730-01A01-000  

17730-19D11-000
 1773001A01000

Unit Price

3
BOLT, RADIATOR CUSHION

17788-33402-000  

17788-14501-000
 1778833402000

Unit Price

4
NUT 6MM

08316-16064-000  

08319-31067-000
 0831616064000

Unit Price

5
HOSE, CRANKCASE AIR INTAKE

17851-20A00-000  

17175-41D10-000
 1785120A00000

Unit Price

6
DISCONTINUE<br />HOSE,RADIATOR OUTLET
DISCONTINUE
HOSE, RADIATOR OUTLET

17852-20A00-000   1785220A00000

1785220A00000
Not available
7
CLAMP

09402-33501-000  

09402-33502-000
 0940233501000

Unit Price

8
NET, RADIATOR

17991-20A00-000   1799120A00000

1799120A00000
Not available
9
TANK ASSY, RESERVOIR

17910-20A02-000   1791020A02000

1791020A02000
Not available
10
DISCONTINUE<br />CAP,RESERVOIR TANK
DISCONTINUE
CAP, RESERVOIR TANK

17845-13700-000   1784513700000

1784513700000
Not available
11
DISCONTINUE<br />GASKET,RESERVOIR TANK CAP
DISCONTINUE
GASKET, RESERVOIR TANK CAP

17844-13700-000   1784413700000

1784413700000
Not available
12
HOSE, OVER FLOW (L:760-650)

09343-05347-000   0934305347000

0934305347000
Not available
13
CLIP

09401-08407-000  

0940108407000
Not available
14
HOSE, RESERVOIR TANK

17848-16701-000   1784816701000

1784816701000
Not available
15
SCREW

02142-06164-000  

02142-0616A-000
 0214206164000

Unit Price

16
WASHER

09160-06039-000  

09160-06109-000
 0916006039000

Unit Price

17
SCREW

02112-06255-000  

02112-0625A-000
 0211206255000

Unit Price

18
WASHER 6.5X10X1.2

09160-06027-000  

09160-06077-000
 0916006027000

Unit Price

19
FENDER LOWER SPACER (6.5X10.5X13.5)

09180-06046-000   0918006046000

0918006046000
Not available
20
CUSHION
CUSHION

09320-10008-000  

09320-10075-000
 0932010008000

Unit Price

21
CLIP

09401-06407-000   0940106407000

0940106407000
Not available
22
CLAMP(L:65)

09404-06403-000  

09404-06039-000
 0940406403000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GS-E 1990
