Finish line

Parts catalogue

Parts diagram

TRANSMISSION

STARTER SHAFT FOR SUZUKI GS-E 500 1990

GEAR SHIFTING ASSY

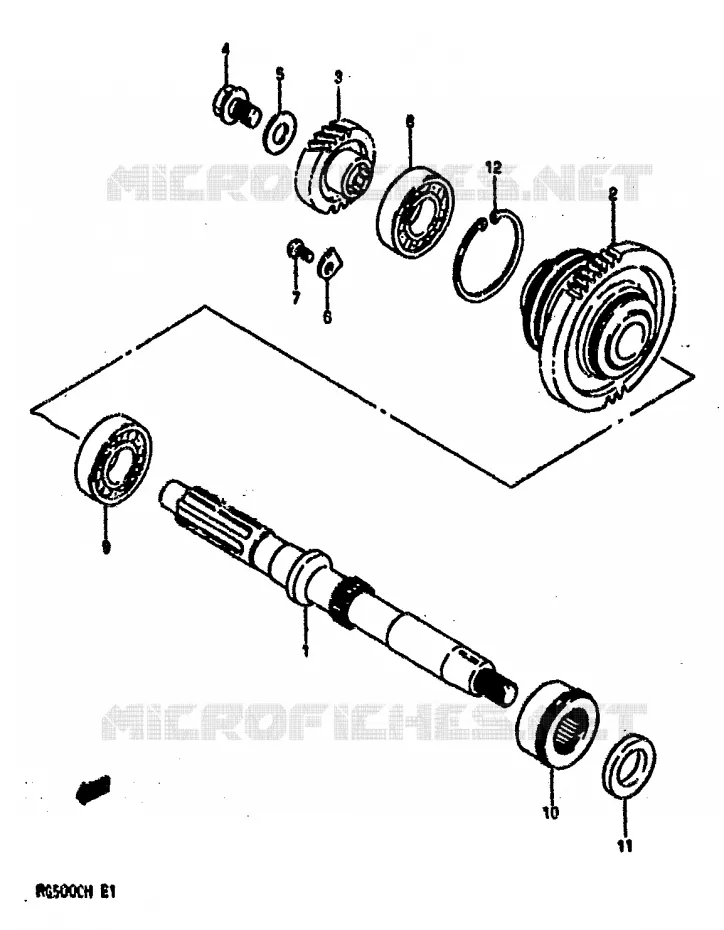

STARTER SHAFT Suzuki MOTO 500 GS-E 1990 GS500EL(E1)
1
SHAFT, PILOT

21711-21A20-000   2171121A20000

2171121A20000
Not available
2
GEAR, PILOT DRIVEN

21760-21A00-000   2176021A00000

2176021A00000
Not available
3
GEAR, PRIMARY DRIVE (NT:26)

21110-20A00-000   2111020A00000

2111020A00000
Not available
4
BOLT, PILOT SHAFT

21712-20A00-000   2171220A00000

2171220A00000
Not available
5
DISCONTINUE
WAVE WASHER

09164-14010-000  

0916414010000
Not available
6
RETAINER<br />RETAINER,BEARING
RETAINER
RETAINER, BEARING

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

7
SCREW

02112-06128-000  

02112-06127-000
 0211206128000

Unit Price

8
BEARING

09262-22012-000  

09262-22025-000
 0926222012000

Unit Price

9
BEARING<br />BEARING (22X50X14)
BEARING
BEARING (22X50X14)

09262-22018-000   0926222018000

0926222018000

Unit Price

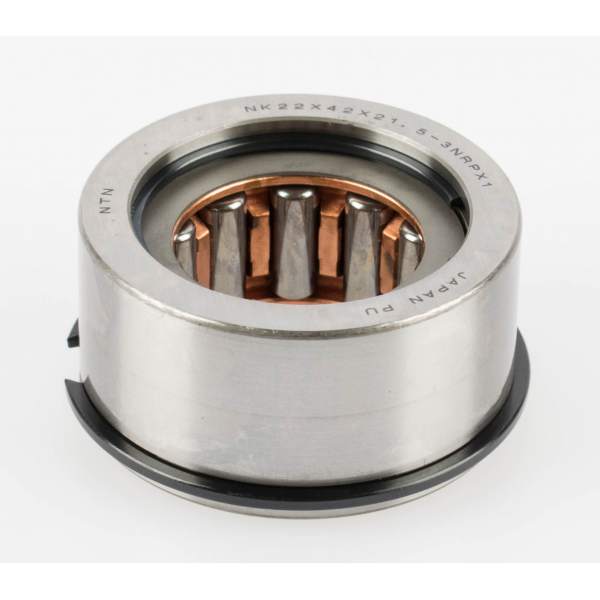

10
BEARING
BEARING

09263-22042-000   0926322042000

0926322042000
Not available
11
SEAL,OIL(22X33X7)<br />OIL SEAL (22X33X7)
SEAL, OIL(22X33X7)
OIL SEAL (22X33X7)

09283-22014-000   0928322014000

0928322014000

Unit Price

12
CIRCLIP

08331-41569-000   0833141569000

0833141569000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER SHAFT of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GS-E 1990

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 500 GS-E 1990

Select your Suzuki 1990 model

500 GS-E 1990 GS500EL(E1)

GSE 500

Suzuki GS-E

Displacement: 500 cc
Year: 1990
Model code GS500EL(E1)
