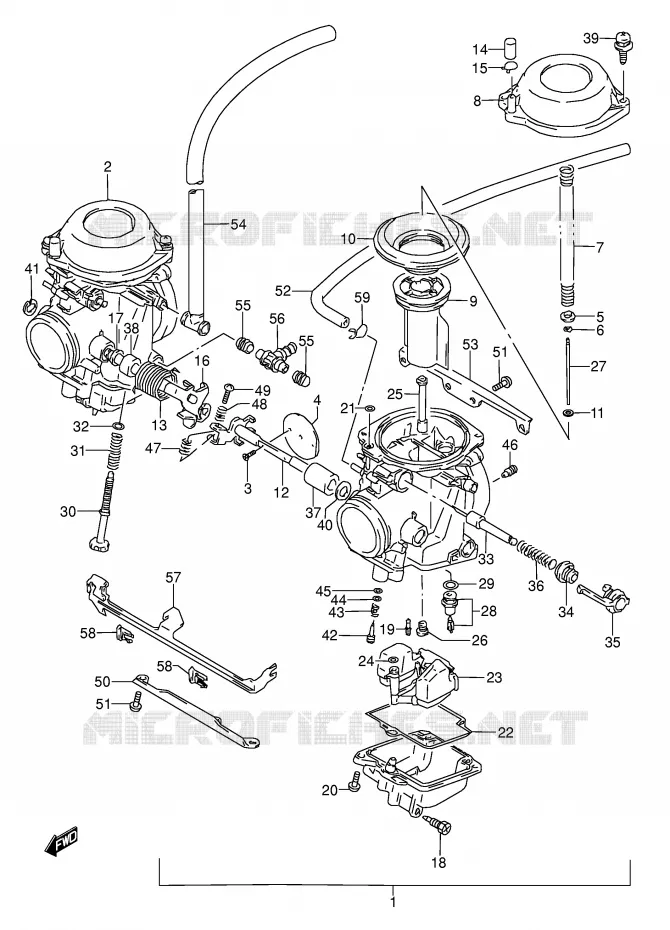

CARBURETOR (MODEL K / L / M / N / P) FOR SUZUKI GS-E 500 1992

CARBURETOR (MODEL R) REFER TO FIG.12B(D- 9) FOR MODEL S

Item numbers

13201-01D21
CARBURETOR ASSY, LH

13201-01D20-000 1320101D20000

Not available

CARBURETOR ASSY, LH

13201-01D30-000 1320101D30000

Not available

CARBURETOR ASSY, LH

13201-01D50-000 1320101D50000

Not available

CARBURETOR ASSY, LH

13201-01D60-000 1320101D60000

Not available

CARBURETOR ASSY, LH

13201-01D70-000 1320101D70000

Not available

CARBURETOR ASSY, LH

13201-01D80-000 1320101D80000

Not available

CARBURETOR ASSY, LH

13201-01D90-000 1320101D90000

Not available

CARBURETOR ASSY, LH

13201-02D10-000 1320102D10000

Not available

CARBURETOR ASSY, LH

13201-02D20-000 1320102D20000

Not available

13202-02D61
CARBURETOR ASSY, RH

13202-01D20-000 1320201D20000

Not available

CARBURETOR ASSY, RH

13202-01D30-000 1320201D30000

Not available

CARBURETOR ASSY, RH

13202-01D50-000 1320201D50000

Not available

CARBURETOR ASSY, RH

13202-01D60-000 1320201D60000

Not available

CARBURETOR ASSY, RH

13202-01D70-000 1320201D70000

Not available

CARBURETOR ASSY, RH

13202-01D80-000 1320201D80000

Not available

CARBURETOR ASSY, RH

13202-01D90-000 1320201D90000

Not available

CARBURETOR ASSY, RH

13202-02D10-000 1320202D10000

Not available

CARBURETOR ASSY, RH

13202-02D20-000 1320202D20000

Not available

SCREW

13604-42A00-000

13604-44080-000

$6,97

Unit Price

DISCONTINUE
VALVE, THROTTLE (120)

13551-01D00-000 1355101D00000

Not available

VALVE, THROTTLE (125)

13551-02D00-000 1355102D00000

Not available

RING

13382-42A00-000 1338242A00000

$6,97

Unit Price

E RING

13394-01D00-000

13394-40D20-000

$6,97

Unit Price

SPRING

13417-42A00-000 1341742A00000

$10,97

Unit Price

COVER, DIAPHRAGM

13502-01D00-000 1350201D00000

$53,97

Unit Price

COVER, DIAPHRAGM

13502-01D10-000 1350201D10000

Not available

COVER, DIAPHRAGM

13502-02D00-000 1350202D00000

Not available

COVER, DIAPHRAGM

13502-45B10-000 1350245B10000

Not available

DISCONTINUE
VALVE, PISTON

13501-01D00-000 1350101D00000

Not available

VALVE, PISTON

13501-01D10-000 1350101D10000

Not available

DIAPHRAGM

13507-17C00-000

13507-17C02-000

$32,97

Unit Price

DIAPHRAGM

13507-44B00-000

13507-44B01-000

$51,97

Unit Price

RING

13387-47010-000 1338747010000

$11,97

Unit Price

.SHAFT ASSY

13550-01D00-000 1355001D00000

Not available

SPRING

13573-44B00-000 1357344B00000

Not available

CAP

13508-17C00-000 1350817C00000

$9,97

Unit Price

CLIP

13671-33600-000

13671-05A40-000

$8,97

Unit Price

SHAFT ASSY

13550-01D10-000 1355001D10000

Not available

SEAL

13556-44B00-000 1355644B00000

$7,97

Unit Price

SCREW
SCREW, DRAIN

13247-28A00-000 1324728A00000

$12,97

Unit Price

JET, PILOT
JET, PILOT (40)

09492-40014-000 0949240014000

$16,97

Unit Price

SCREW

02112-05126-000

02112-0512A-000

$2,97

Unit Price

O RING

13509-17C00-000 1350917C00000

$8,97

Unit Price

GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13258-44B00-000 1325844B00000

$12,97

Unit Price

DISCONTINUE
FLOAT ASSY

13240-01D00-000 1324001D00000

Not available

O RING

13374-46710-000 1337446710000

$6,97

Unit Price

DISCONTINUE

09494-00641-000

Not available

JET, MAIN
JET, MAIN (115), RH

09491-23011-000 0949123011000

$22,97

Unit Price

JET, MAIN
JET, MAIN (122.5)

09491-24013-000 0949124013000

$14,97

Unit Price

JET, MAIN #120
JET, MAIN (120)

09491-24016-000 0949124016000

$22,97

Unit Price

JET, MAIN
JET, MAIN (125), LH

09491-25010-000 0949125010000

$16,97

Unit Price

JET, MAIN
JET, MAIN (135)

09491-27009-000 0949127009000

$22,97

Unit Price

NEEDLE JET
NEEDLE, JET (5DH9-3)

13383-01D10-000 1338301D10000

$24,97

Unit Price

VALVE ASSY, NEEDLE

13370-44B00-000

13370-02D01-000

$77,97

Unit Price

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

DISCONTINUE

13267-28A00-000

Not available

SPRING

13268-43410-000

13375-14D10-000

$9,97

Unit Price

WASHER

13427-38300-000 1342738300000

$2,97

Unit Price

DISCONTINUE
PLUNGER ASSY

13411-01D00-000 1341101D00000

Not available

CAP, STARTER

13418-17C00-000

13418-17C01-000

$12,97

Unit Price

HOLDER, GUIDE

13418-17C10-000 1341817C10000

$18,97

Unit Price

SPRING

13417-09110-000 1341709110000

$11,97

Unit Price

.RING

13574-01D00-000 1357401D00000

Not available

DISCONTINUE
RING

13574-28A00-000 1357428A00000

Not available

SCREW

13602-34390-000

02112-75163-000

$3,97

Unit Price

GASKET, THROTTLE SHAFT
WASHER

13557-47070-000 1355747070000

$7,97

Unit Price

E RING

13617-44080-000 1361744080000

$5,97

Unit Price

SCREW, PILOT
SCREW, PILOT (2 1/4)

13279-47070-000 1327947070000

$19,97

Unit Price

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

JET, AIR(1.3)
JET, PILOT AIR (1.3)

09493-26004-000 0949326004000

$27,97

Unit Price

SPRING, THROTTLE SCREW

13268-96110-000

13268-96111-000

$6,97

Unit Price

SPRING

13271-44B00-000 1327144B00000

$7,97

Unit Price

SCREW

13267-44B00-000 1326744B00000

$6,97

Unit Price

DISCONTINUE
PLATE

13628-01D00-000 1362801D00000

Not available

SCREW

02112-05126-000

02112-0512A-000

$2,97

Unit Price

DISCONTINUE
HOSE (5X9X350)

13684-01D10-000

Not available

DISCONTINUE
PLATE

13628-01D10-000 1362801D10000

Not available

HOSE

13684-44B00-000

13683-17C31-000

$35,97

Unit Price

SEAL

13673-44B00-000 1367344B00000

$7,97

Unit Price

NIPPLE

13685-44B00-000 1368544B00000

$19,97

Unit Price

DISCONTINUE
LEVER

13413-01D00-000 1341301D00000

Not available

HOLDER

13439-17C00-000 1343917C00000

$16,97

Unit Price

CLIP

13671-05A30-000

Not available
