CARBURETOR (MODEL R) REFER TO FIG.12B(D- 9) FOR MODEL S

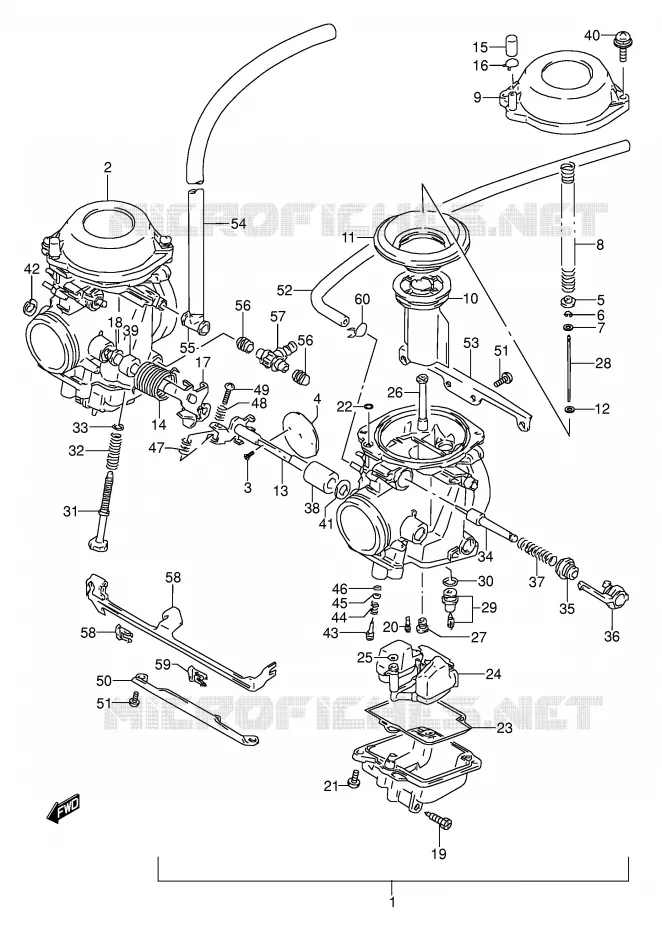

CARBURETOR (MODEL S) FOR SUZUKI GS-E 500 1992

CARBURETOR (MODEL T)

Item numbers

CARBURETOR ASSY, LH

13201-02D20-000 1320102D20000

Not available

CARBURETOR ASSY, LH

13201-02D30-000 1320102D30000

Not available

CARBURETOR ASSY, LH

13201-02D50-000 1320102D50000

Not available

CARBURETOR ASSY, LH

13201-02D60-000 1320102D60000

Not available

CARBURETOR ASSY, LH

13201-02D70-000 1320102D70000

Not available

CARBURETOR ASSY, RH

13202-02D20-000 1320202D20000

Not available

CARBURETOR ASSY, RH

13202-02D30-000 1320202D30000

Not available

CARBURETOR ASSY, RH

13202-02D50-000 1320202D50000

Not available

DISCONTINUE

13202-02D60-000

Not available

CARBURETOR ASSY, RH

13202-02D70-000 1320202D70000

Not available

SCREW

13604-44080-000 1360444080000

$6,97

Unit Price

DISCONTINUE
VALVE, THROTTLE (120)

13551-01D00-000 1355101D00000

Not available

VALVE, THROTTLE (125)

13551-02D00-000 1355102D00000

Not available

RING
WASHER

13382-42A00-000 1338242A00000

$6,97

Unit Price

WASHER

13382-44030-000 1338244030000

$6,97

Unit Price

E RING

13394-01D00-000

13394-40D20-000

$6,97

Unit Price

WASHER

13382-44030-000 1338244030000

$6,97

Unit Price

SPRING

13417-42A00-000 1341742A00000

$10,97

Unit Price

COVER, DIAPHRAGM

13502-01D00-000 1350201D00000

$53,97

Unit Price

COVER, DIAPHRAGM

13502-02D00-000 1350202D00000

Not available

DISCONTINUE
VALVE, PISTON

13501-01D00-000 1350101D00000

Not available

VALVE, PISTON

13501-01D10-000 1350101D10000

Not available

DIAPHRAGM

13507-17C01-000

13507-17C02-000

$32,97

Unit Price

DIAPHRAGM

13507-44B00-000

13507-44B01-000

$51,97

Unit Price

RING

13387-47010-000 1338747010000

$11,97

Unit Price

.SHAFT ASSY

13550-01D00-000 1355001D00000

Not available

SPRING

13573-44B00-000 1357344B00000

Not available

CAP

13508-17C00-000 1350817C00000

$9,97

Unit Price

CLIP

13671-33600-000

13671-05A40-000

$8,97

Unit Price

SHAFT ASSY

13550-01D10-000 1355001D10000

Not available

SEAL

13556-44B00-000 1355644B00000

$7,97

Unit Price

PLUG, DRAIN

13247-13A00-000

13247-02340-000

$8,97

Unit Price

JET, PILOT
JET, PILOT (40)

09492-40014-000 0949240014000

$16,97

Unit Price

SCREW

02112-05127-000 0211205127000

$3,97

Unit Price

O RING

13509-17C00-000 1350917C00000

$8,97

Unit Price

GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13258-44B00-000 1325844B00000

$12,97

Unit Price

DISCONTINUE
FLOAT ASSY

13240-01D00-000 1324001D00000

Not available

O RING

13374-46710-000 1337446710000

$6,97

Unit Price

DISCONTINUE
JET, NEEDLE (0-2)

09494-00748-000 0949400748000

Not available

JET, MAIN
JET, MAIN (115), RH

09491-23011-000 0949123011000

$22,97

Unit Price

JET, MAIN
JET, MAIN (122.5), RH

09491-24013-000 0949124013000

$14,97

Unit Price

JET, MAIN
JET, MAIN (125), LH

09491-25010-000 0949125010000

$16,97

Unit Price

JET, MAIN
JET, MAIN (130)

09491-26011-000 0949126011000

$22,97

Unit Price

NEEDLE JET
NEEDLE, JET (5DH9-3)

13383-01D10-000 1338301D10000

$24,97

Unit Price

VALVE ASSY, NEEDLE

13370-44B00-000

13370-02D01-000

$77,97

Unit Price

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

DISCONTINUE

13267-28A00-000

Not available

SPRING

13375-14D10-000 1337514D10000

$9,97

Unit Price

WASHER

13427-38300-000 1342738300000

$2,97

Unit Price

DISCONTINUE
PLUNGER ASSY

13411-01D00-000 1341101D00000

Not available

CAP, STARTER

13418-17C00-000

13418-17C01-000

$12,97

Unit Price

HOLDER, GUIDE

13418-17C10-000 1341817C10000

$18,97

Unit Price

SPRING

13417-09110-000 1341709110000

$11,97

Unit Price

.RING

13574-01D00-000 1357401D00000

Not available

DISCONTINUE
RING

13574-28A00-000 1357428A00000

Not available

SCREW

02112-75163-000

02112-7516A-000

$3,97

Unit Price

GASKET, THROTTLE SHAFT
WASHER

13557-47070-000 1355747070000

$7,97

Unit Price

E RING

13617-44080-000 1361744080000

$5,97

Unit Price

SCREW, PILOT
SCREW, PILOT (2 1/4)

13279-47070-000 1327947070000

$19,97

Unit Price

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

SPRING, THROTTLE SCREW

13268-96110-000

13268-96111-000

$6,97

Unit Price

SPRING

13271-44B00-000 1327144B00000

$7,97

Unit Price

SCREW

13267-44B00-000 1326744B00000

$6,97

Unit Price

DISCONTINUE
PLATE

13628-01D00-000 1362801D00000

Not available

SCREW

02112-05127-000 0211205127000

$3,97

Unit Price

DISCONTINUE
HOSE (5X9X350)

13684-01D10-000

Not available

DISCONTINUE
PLATE

13628-01D10-000 1362801D10000

Not available

HOSE ASSY (7X11X425)

13684-01D00-000 1368401D00000

Not available

HOSE

13684-20C10-000 1368420C10000

$11,97

Unit Price

SEAL

13673-44B00-000 1367344B00000

$7,97

Unit Price

NIPPLE

13685-44B00-000 1368544B00000

$19,97

Unit Price

DISCONTINUE
LEVER

13413-01D00-000 1341301D00000

Not available

HOLDER

13439-17C00-000 1343917C00000

$16,97

Unit Price

CLIP

09401-08410-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODEL S) of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
