Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI GS-E 500 2000

OIL FILTER - OIL PUMP

Item numbers

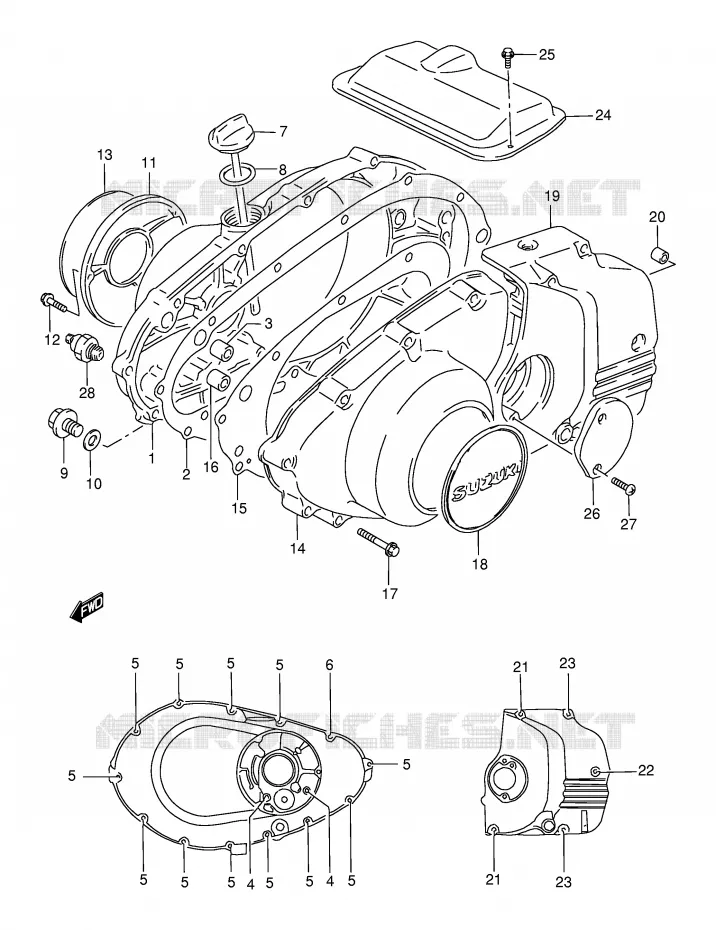

CRANKCASE COVER Suzuki MOTO 500 GS-E 2000 GS500EY(E2)
1
2
3
4
4
5
5
5
5
5
5
5
5
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
23
24
25
26
27
28
1
COVER, CLUTCH

11341-01D10-000   1134101D10000

1134101D10000

Unit Price

2
GASKET, CLUTCH COVER

11482-44110-000   1148244110000

1148244110000

Unit Price

3
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

4
BOLT,6X55<br />BOLT
BOLT, 6X55
BOLT

01547-06557-000   0154706557000

0154706557000

Unit Price

5
BOLT,6X35<br />BOLT
BOLT, 6X35
BOLT

01547-06357-000   0154706357000

0154706357000

Unit Price

6
BOLT,6X25<br />BOLT
BOLT, 6X25
BOLT

01547-06257-000   0154706257000

0154706257000

Unit Price

7
DISCONTINUE
GAUGE, OIL LEVEL

11970-44110-000   1197044110000

1197044110000
Not available
8
O RING
O RING (D:3.1, ID:26.4)

09280-26006-000   0928026006000

0928026006000

Unit Price

9
PLUG

09247-14012-000  

09247-14026-000
 0924714012000

Unit Price

10
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

11
COVER, CONTACT BREAKER

11381-01D10-000   1138101D10000

1138101D10000

Unit Price

12
BOLT

01547-05167-000   0154705167000

0154705167000

Unit Price

13
EMBLEM, CONTACT BREA
EMBLEM

68233-01D00-000   6823301D00000

6823301D00000

Unit Price

14
COVER, MAGNETO
COVER, GENERATOR

11351-01D10-000   1135101D10000

1135101D10000

Unit Price

15
GASKET, MAGNETO COVER
GASKET, GENERATOR COVER

11483-44110-000   1148344110000

1148344110000

Unit Price

16
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

17
BOLT,6X35<br />BOLT
BOLT, 6X35
BOLT

01547-06357-000   0154706357000

0154706357000

Unit Price

18
EMBLEM, CONTACT BREA
EMBLEM

68233-01D00-000   6823301D00000

6823301D00000

Unit Price

19
COVER, ENGINE SPROCKET

11361-01D10-000   1136101D10000

1136101D10000

Unit Price

20
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

21
BOLT

01547-06657-000  

01547-0665B-000
 0154706657000

Unit Price

22
BOLT
BOLT

01547-06507-000   0154706507000

0154706507000

Unit Price

23
BOLT,6X40<br />BOLT
BOLT, 6X40
BOLT

01547-06407-000   0154706407000

0154706407000

Unit Price

24
COVER, STARTER MOTOR

11382-44111-000  

11382-01D00-000
 1138244111000

Unit Price

25
BOLT

01547-05083-000  

01547-0508B-000
 0154705083000

Unit Price

26
CAP, CLUTCH RELEASE ADJUST
CAP, CLUTCH RELEASE

11387-01D10-000   1138701D10000

1138701D10000

Unit Price

27
SCREW
SCREW

02122-05127-000   0212205127000

0212205127000

Unit Price

28
SWITCH ASSY, OIL PRESSURE

37820-33D00-000  

37820-33D11-000
 3782033D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
