MUFFLER

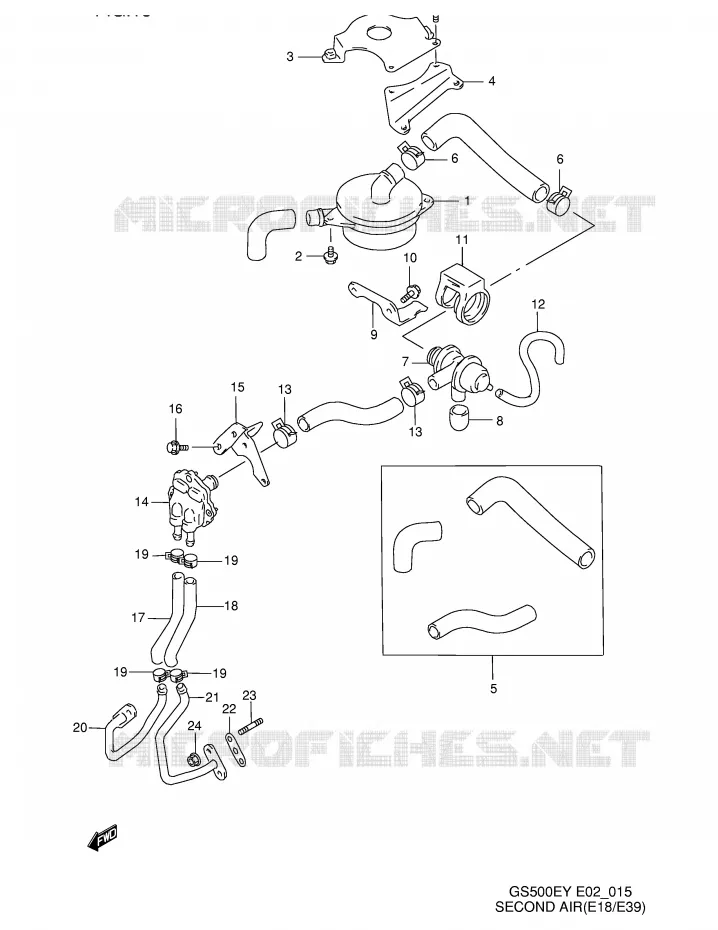

FUEL EVAP SYSTEM (E18,E39) FOR SUZUKI GS-E 500 2000

CLUTCH

Item numbers

CLEANER ASSY, 2ND AIR

18700-17C03-000 1870017C03000

Not available

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

BRACKET, 2ND AIR CLEANER

18750-01D00-000 1875001D00000

Not available

BRACKET, AIR CLEANER SUPPORT

18760-01D00-000 1876001D00000

Not available

HOSE SET, 2ND AIR

18420-01810-000 1842001810000

Not available

CLIP

09401-25403-000

09401-25404-000

$7,97

Unit Price

VALVE ASSY, AIR SWITCHING

18510-06B00-000 1851006B00000

Not available

CAP, SWITCHING VALVE

18483-39A00-000 1848339A00000

Not available

BRACKET, SWITCHING VALVE

18521-01D00-000 1852101D00000

Not available

01550-0616A
BOLT

01550-06163-000

Not available

CUSHION, SWITCHING VALVE

18487-01D00-000 1848701D00000

Not available

HOSE, 4.5X8.5X600

09355-45855-600

09355-45001-600

$18,97

Unit Price

CLIP

09401-20405-000 0940120405000

$4,97

Unit Price

CLIP

09401-21403-000 0940121403000

Not available

DISCONTINUE
VALVE ASSY, 2ND AIR REED

18450-48B00-000 1845048B00000

Not available

BRACKET, REED VALVE

18721-01D00-000 1872101D00000

Not available

01550-0616A
BOLT

01550-06163-000

Not available

HOSE, REED VALVE R

18445-01D00-000 1844501D00000

Not available

HOSE, REED VALVE L

18445-01D00-000 1844501D00000

Not available

CLIP

09401-13413-000

09401-13417-000

$3,97

Unit Price

DISCONTINUE
PIPE, 2ND AIR R

18420-01D01-000 1842001D01000

Not available

DISCONTINUE
PIPE, 2ND AIR L

18430-01D01-000 1843001D01000

Not available

GASKET, 2ND AIR PIPE

18441-45C00-000

18441-45C01-000

$10,97

Unit Price

BOLT, STUD

01421-06163-000

01421-0616A-000

$3,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL EVAP SYSTEM (E18,E39) of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
