STARTER MOTOR CLUTCH

CAM SHAFT - VALVE FOR SUZUKI GS-E 500 2002

TIMING

Item numbers

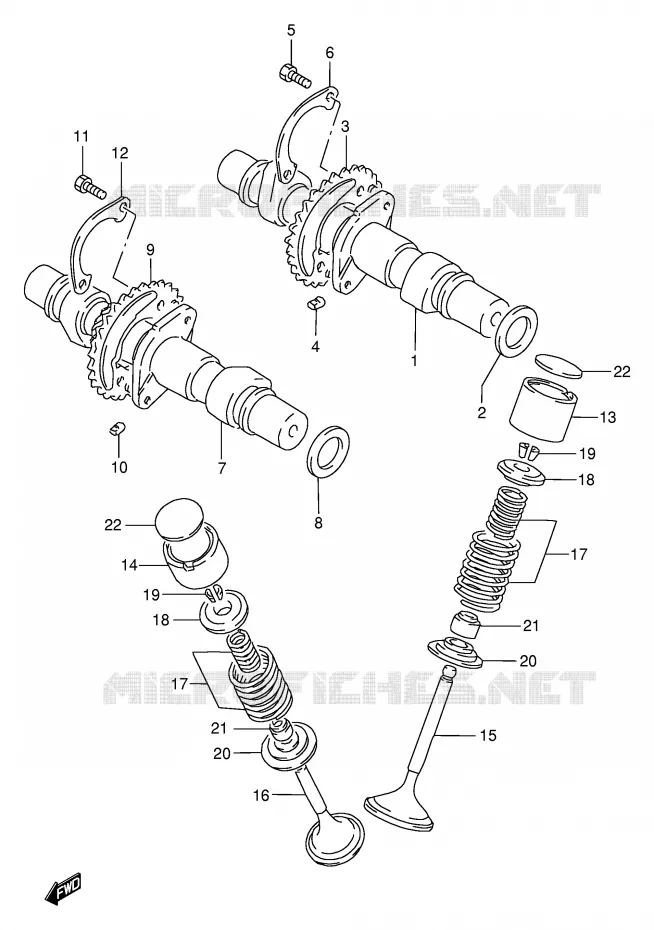

CAM SHAFT - VALVE Suzuki MOTO 500 GS-E 2002 GS500HK2(E2)
1
2
2
2
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
1
CAMSHAFT SET, INTAKE

12710-01830-000   1271001830000

1271001830000
Not available
2
WASHER(22X30X1.1)
WASHER (T:1.1)

09160-22074-000   0916022074000

0916022074000

Unit Price

2
WASHER(22X30X1.2)
WASHER (T:1.2)

09160-22075-000   0916022075000

0916022075000

Unit Price

2
WASHER(22X30X1.3)
WASHER (T:1.3)

09160-22076-000   0916022076000

0916022076000

Unit Price

2
WASHER<br />WASHER (T:1.0)
WASHER
WASHER (T:1.0)

09181-22167-000   0918122167000

0918122167000

Unit Price

3
SPROCKET, CAMSHAFT INTAKE
SPROCKET, INTAKE (NT:30)

12740-45042-000   1274045042000

1274045042000

Unit Price

4
PIN, SPROCKET
PIN

12748-44000-000   1274844000000

1274844000000

Unit Price

5
BOLT (6X12.5)

09111-06027-000   0911106027000

0911106027000

Unit Price

6
WASHER, SPROCKET

12747-44000-000  

12747-44001-000
 1274744000000

Unit Price

7
DISCONTINUE
CAMSHAFT SET, EXHAUST

12720-01820-000   1272001820000

1272001820000
Not available
8
WASHER(22X30X1.1)
WASHER (T:1.1)

09160-22074-000   0916022074000

0916022074000

Unit Price

8
WASHER(22X30X1.2)
WASHER (T:1.2)

09160-22075-000   0916022075000

0916022075000

Unit Price

8
WASHER(22X30X1.3)
WASHER (T:1.3)

09160-22076-000   0916022076000

0916022076000

Unit Price

8
WASHER<br />WASHER (T:1.0)
WASHER
WASHER (T:1.0)

09181-22167-000   0918122167000

0918122167000

Unit Price

9
SPROCKET, EXHAUST CAM(NT:30)
SPROCKET, EXHAUST (NT:30)

12750-45041-000   1275045041000

1275045041000

Unit Price

10
PIN, SPROCKET
PIN

12748-44000-000   1274844000000

1274844000000

Unit Price

11
BOLT (6X12.5)

09111-06027-000   0911106027000

0911106027000

Unit Price

12
WASHER, SPROCKET

12747-44000-000  

12747-44001-000
 1274744000000

Unit Price

13
TAPPET

12891-15500-000  

12891-15501-000
 1289115500000

Unit Price

14
TAPPET

12891-15500-000  

12891-15501-000
 1289115500000

Unit Price

15
VALVE, INTAKE

12911-01D00-000   1291101D00000

1291101D00000

Unit Price

16
VALVE, EXHAUST

12912-01D00-000   1291201D00000

1291201D00000

Unit Price

17
SPRING SET, VALVE

12920-44110-000   1292044110000

1292044110000

Unit Price

18
RETAINER, VALVE SPRING

12931-45000-000  

12931-45001-000
 1293145000000

Unit Price

19
COTTER, VALVE
COTTER, VALVE

12932-45010-000   1293245010000

1293245010000

Unit Price

20
SEAT, VALVE SPRING
SEAT, SPRING

12933-45001-000   1293345001000

1293345001000

Unit Price

21
SEAL,OIL(7X14.4X9)<br />OIL SEAL (7X14.4X9)
SEAL, OIL(7X14.4X9)
OIL SEAL (7X14.4X9)

09289-07002-000   0928907002000

0928907002000

Unit Price

22
SHIM, TAPPET (T:2.15)
SHIM, TAPPET (T:2.15)

12892-45000-215   1289245000215

1289245000215

Unit Price

22
SHIM, TAPPET (T:2.20)
SHIM, TAPPET (T:2.20)

12892-45000-220   1289245000220

1289245000220

Unit Price

22
SHIM, TAPPET (T:2.25)

12892-45000-225   1289245000225

1289245000225

Unit Price

22
SHIM, TAPPET (T:2.30)

12892-45000-230   1289245000230

1289245000230

Unit Price

22
SHIM, TAPPET (T:2.35)
SHIM, TAPPET (T:2.35)

12892-45000-235   1289245000235

1289245000235

Unit Price

22
SHIM, TAPPET (T:2.40)
SHIM, TAPPET (T:2.40)

12892-45000-240   1289245000240

1289245000240

Unit Price

22
SHIM, TAPPET (T:2.45)
SHIM, TAPPET (T:2.45)

12892-45000-245   1289245000245

1289245000245

Unit Price

22
SHIM, TAPPET (T:2.50)
SHIM, TAPPET (T:2.50)

12892-45000-250   1289245000250

1289245000250

Unit Price

22
SHIM, TAPPET (T:2.55)
SHIM, TAPPET (T:2.55)

12892-45000-255   1289245000255

1289245000255

Unit Price

22
SHIM, TAPPET (T:2.60)
SHIM, TAPPET (T:2.60)

12892-45000-260   1289245000260

1289245000260

Unit Price

22
SHIM, TAPPET (T:2.65)
SHIM, TAPPET (T:2.65)

12892-45000-265   1289245000265

1289245000265

Unit Price

22
SHIM, TAPPET (T:2.70)
SHIM, TAPPET (T:2.70)

12892-45000-270   1289245000270

1289245000270

Unit Price

22
SHIM, TAPPET (T:2.75)
SHIM, TAPPET (T:2.75)

12892-45000-275   1289245000275

1289245000275

Unit Price

22
SHIM, TAPPET (T:2.80)
SHIM, TAPPET (T:2.80)

12892-45000-280   1289245000280

1289245000280

Unit Price

22
SHIM, TAPPET (T:2.85)
SHIM, TAPPET (T:2.85)

12892-45000-285   1289245000285

1289245000285

Unit Price

22
SHIM, TAPPET (T:2.90)
SHIM, TAPPET (T:2.90)

12892-45000-290   1289245000290

1289245000290

Unit Price

22
SHIM, TAPPET (T:2.95)
SHIM, TAPPET (T:2.95)

12892-45000-295   1289245000295

1289245000295

Unit Price

22
SHIM, TAPPET (T:3.00)
SHIM, TAPPET (T:3.00)

12892-45000-300   1289245000300

1289245000300

Unit Price

22
SHIM, TAPPET (T:3.05)
SHIM, TAPPET (T:3.05)

12892-45000-305   1289245000305

1289245000305

Unit Price

22
SHIM, TAPPET (T:3.10)
SHIM, TAPPET (T:3.10)

12892-45000-310   1289245000310

1289245000310

Unit Price

22
SHIM, TAPPET (T:2.75)
SHIM, TAPPET (T:2.75)

12892-45000-275   1289245000275

1289245000275

Unit Price

23
SHIM SET,TAPPET<br />SHIM SET INC.NO.22-1~22-20(3PCS.EACH)
SHIM SET, TAPPET
SHIM SET INC.NO.22-1~22-20(3PCS.EACH)

12800-45811-000   1280045811000

1280045811000

Unit Price

24
CASE,SHIM<br />CASE
CASE, SHIM
CASE

99000-69521-000   9900069521000

9900069521000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT - VALVE of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GS-E 2002
