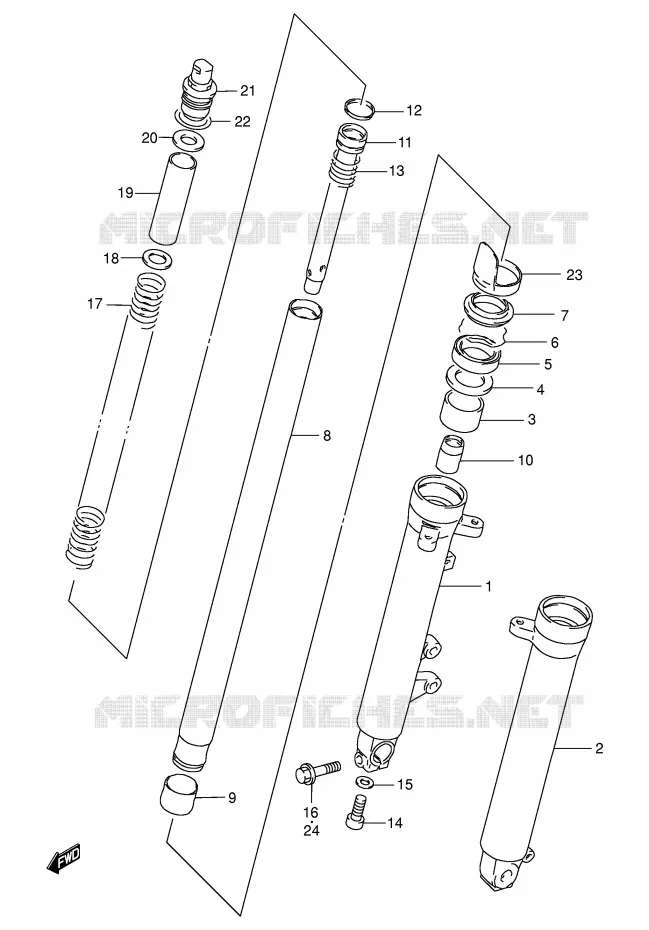

FRONT FORK FOR SUZUKI GS-E 500 2002

STEERING COLUMN

Item numbers

TUBE, OUTER, R
TUBE, OUTER RH

51130-01DA0-000 5113001DA0000

$489,97

Unit Price

TUBE, OUTER, L
TUBE, OUTER LH

51140-01DA0-000 5114001DA0000

$489,97

Unit Price

METAL, SLIDE

51167-01D00-000 5116701D00000

$17,97

Unit Price

WASHER

51158-49500-000 5115849500000

$7,97

Unit Price

SEAL, OIL

51153-26F00-000 5115326F00000

$19,97

Unit Price

RING, STOPPER
RING, SNAP

51156-40301-000 5115640301000

$7,97

Unit Price

SEAL, DUST

51173-26F00-000 5117326F00000

$31,97

Unit Price

TUBE, INNER

51110-01D60-000 5111001D60000

$784,97

Unit Price

PISTON

51121-01D00-000 5112101D00000

$15,97

Unit Price

PIECE, OIL LOCK

51195-01D00-000 5119501D00000

$26,97

Unit Price

CYLINDER

51146-01D00-000 5114601D00000

$116,97

Unit Price

RING, PISTON

51196-13A10-000 5119613A10000

$12,97

Unit Price

SPRING, REBOUND

51177-01D00-000 5117701D00000

$16,97

Unit Price

BOLT, FORK CYLINDER(10X25)
BOLT

51147-16510-000 5114716510000

$6,97

Unit Price

GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

BOLT
BOLT, RH

01550-08407-000 0155008407000

Not available

SPRING, MAIN

51171-01D60-000 5117101D60000

$120,97

Unit Price

WASHER
WASHER, SPRING

51172-01D00-000 5117201D00000

$7,97

Unit Price

SPACER

51176-01DB0-000 5117601DB0000

$19,97

Unit Price

WASHER, UPR
WASHER, UPPER

51192-01D60-000 5119201D60000

$6,97

Unit Price

BOLT, FORK

51351-24D00-000 5135124D00000

$71,97

Unit Price

O RING

51117-38260-000 5111738260000

$4,97

Unit Price

PROTECTOR, FR FORK
PROTECTOR

51201-01DA0-000 5120101DA0000

$30,97

Unit Price

BOLT, AXLE STOPPER
BOLT, RH

51166-01D80-000 5116601D80000

$7,97

Unit Price

99x

DISCONTINUE
DAMPER ASSY, FRONT FORK RH

51103-01DB0-000 5110301DB0000

Not available

99x

DAMPER ASSY, FRONT FORK RH

51103-01DC0-000 5110301DC0000

Not available

99x

DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-01DB0-000 5110401DB0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
