Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FENDER (MODEL K4)

REAR FENDER FOR SUZUKI GS-E 500 2004

FAIRING (GS500FK4 / FUK4)

Item numbers

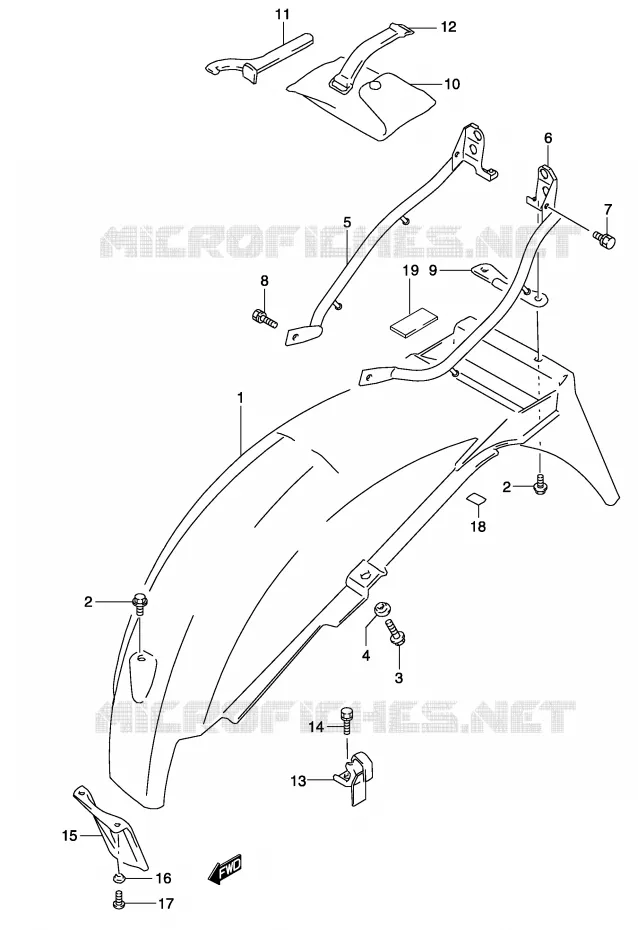

REAR FENDER Suzuki MOTO 500 GS-E 2004 GS500K4(P19)
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
DISCONTINUE

63111-01D01-NE2  

6311101D01NE2
Not available
2
BOLT,6X16<br />BOLT
BOLT, 6X16
BOLT

09113-06001-000   0911306001000

0911306001000

Unit Price

3
01550-0616A
BOLT, SIDE

01550-06163-000  

0155006163000
Not available
4
LOCK WASHER

09169-06037-000  

09169-06011-000
 0916906037000

Unit Price

5
BRACE, RR FENDER, R
BRACE, REAR FENDER RH

63210-01DA0-000   6321001DA0000

6321001DA0000

Unit Price

6
BRACE, RR FENDER, L
BRACE, REAR FENDER LH

63220-01DA0-000   6322001DA0000

6322001DA0000

Unit Price

7
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

8
BOLT

01550-08203-000  

01550-08207-000
 0155008203000

Unit Price

9
PLATE, TOOL HOLDER

47425-01D00-000   4742501D00000

4742501D00000

Unit Price

10
09800-21074
TOOL ASSY

09800-99027-F00  

0980099027F00
Not available
11
CLAMP WRENCH

09822-00005-F00  

09822-00005-000
 0982200005F00

Unit Price

12
O RING(D:3.53,ID:69.44)<br />BAND, TOOL
O RING(D:3.53, ID:69.44)
BAND, TOOL

09280-70004-000   0928070004000

0928070004000

Unit Price

13
HOLDER, HELMET

95720-01D00-000   9572001D00000

9572001D00000

Unit Price

14
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
15
GUARD, RR UNIT MUD
MUD GUARD, REAR UNIT

63411-42A00-000  

6341142A00000
Not available
16
CHAIN CASE WASHER<br />WASHER
CHAIN CASE WASHER
WASHER

09169-06010-000   0916906010000

0916906010000

Unit Price

17
SCREW

D2116-06165-000  

02112-0616A-000
 D211606165000

Unit Price

18
TAPE, FENDER

63115-06C-00X000   6311506C00X000

6311506C00X000
Not available
19
PROTECTOR(20X50X11)
CUSHION, TOOL HOLDER

33652-31F00-000   3365231F00000

3365231F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GS-E 2004

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 500 GS-E 2004

Select your Suzuki 2004 model

500 GS-E 2004 GS500K4(P19)

GSE 500

Suzuki GS-E

Displacement: 500 cc
Year: 2004
Model code GS500K4(P19)
