WIRING HARNESS (MODEL K3) GS500UK3 P19

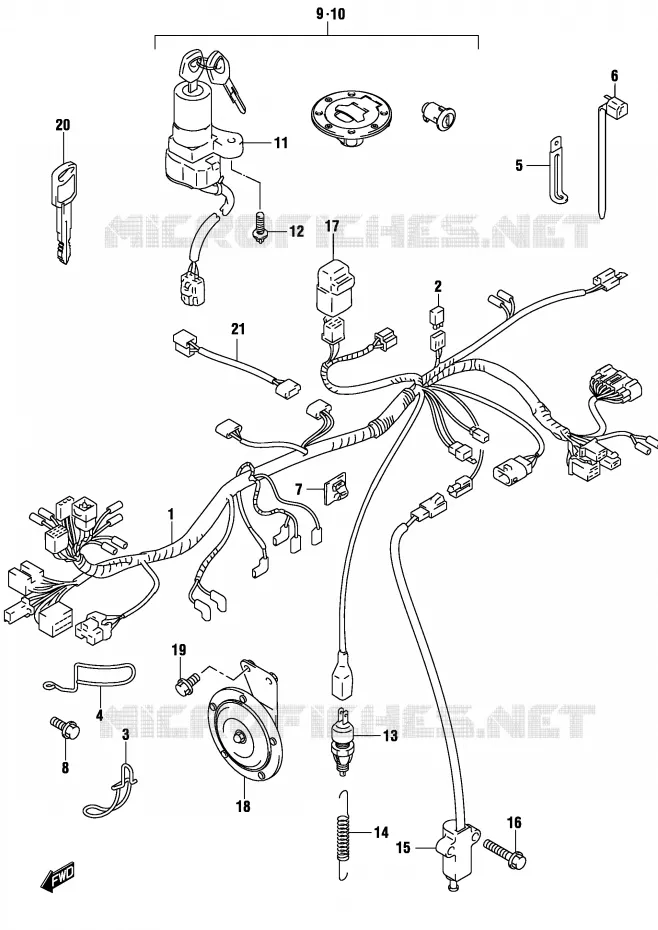

WIRING HARNESS (GS500K4 / UK4) FOR SUZUKI GS-E 500 2004

WIRING HARNESS (GS500FK4 / FUK4)

Item numbers

DISCONTINUE
HARNESS, WIRING

36610-01DE0-000

Not available

DISCONTINUE
HARNESS, WIRING

36610-01DK0-000 3661001DK0000

Not available

36611-02E00
DIODE

36611-02E01-000 3661102E01000

Not available

PROTECTOR
PROTECTOR, WIRING HARNESS

36611-01D00-000 3661101D00000

$22,97

Unit Price

PROTECTOR
PROTECTOR, WIRING HARNESS

36611-01D10-000 3661101D10000

$22,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

CLAMP(L:65)

09404-06431-000

09404-06207-000

$3,97

Unit Price

CLAMP(L:80)

09404-06434-000

09404-06036-000

$3,97

Unit Price

CLAMP (L:97)

09404-08419-000

Not available

CLAMP

09407-19401-000

09407-22403-000

$3,97

Unit Price

DISCONTINUE
CLAMP

D9436-01425-000

Not available

CLAMP

D9448-01885-000 D944801885000

Not available

CLAMP

09403-06310-000 0940306310000

$4,97

Unit Price

WIRE, AIR SOLENOID

36852-01D40-000 3685201D40000

$15,97

Unit Price

01550-0616A
BOLT, WIRING HARNESS GUIDE

01550-06163-000

Not available

37000-01872

37000-01870-000

Not available

LOCK SET

37000-01890-000 3700001890000

$555,97

Unit Price

LOCK ASSY, STEERING

37100-01D40-000 3710001D40000

$165,97

Unit Price

LOCK ASSY, STEERING

37100-01D50-000 3710001D50000

$259,97

Unit Price

SCREW(6X18)
BOLT

09139-06026-000 0913906026000

$3,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-24A00-000 3774024A00000

$19,97

Unit Price

SPRING

09443-06042-000 0944306042000

$5,97

Unit Price

37840-26X52

37840-26D00-000

Not available

BOLT

01550-06303-000

01550-0630A-000

$3,97

Unit Price

RELAY ASSY, SIDE STAND

38740-24B00-000 3874024B00000

Not available

38500-01D10
HORN ASSY

38500-01D20-000

Not available

BOLT

D1557-06125-000

01517-06123-000

$3,97

Unit Price

KEY, BLANK

37146-33E00-000 3714633E00000

$20,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (GS500K4/UK4) of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
