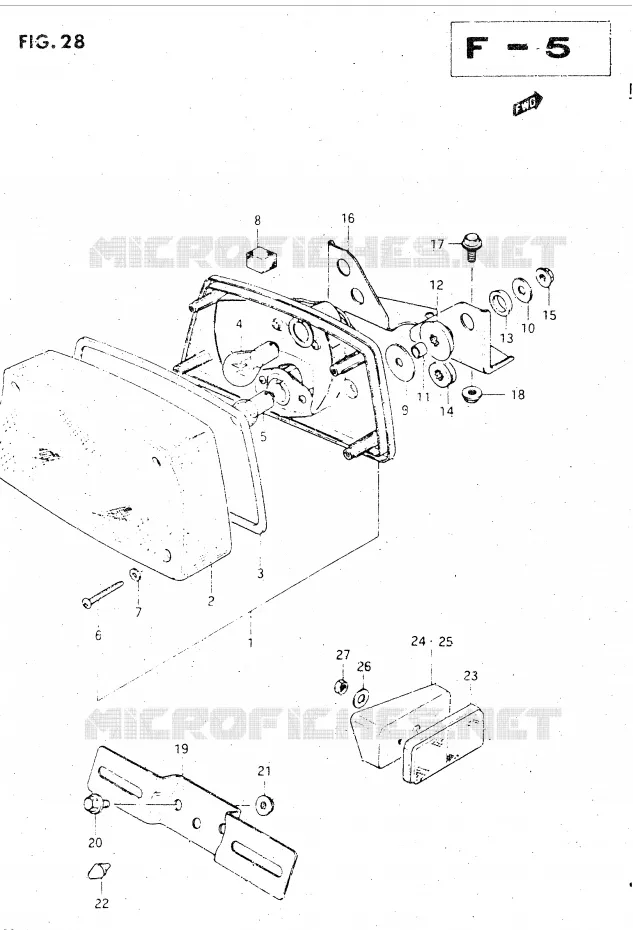

TAIL LIGHT FOR SUZUKI GSX-E 500 1984

WIRING HARNESS

LAMP ASSY, REAR COMBINATION

35710-43450-000 3571043450000

Not available

LAMP ASSY, REAR COMBINATION

35710-43451-000 3571043451000

Not available

LAMP ASSY, REAR COMBINATION

35710-43481-000 3571043481000

Not available

LAMP ASSY, REAR COMBINATION

35710-43482-000 3571043482000

Not available

LENS

35712-43411-000 3571243411000

Not available

GASKET

35713-43410-000 3571343410000

Not available

BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

09471-12140
BULB (12V, 5W)

09471-12058-000

Not available

SCREW

03211-04256-000

03211-0425B-000

$3,97

Unit Price

GASKET

35627-43010-000 3562743010000

$2,97

Unit Price

DISCONTINUE

35733-06400-000

Not available

WASHER(6.5X20X1.6)

09160-06020-000

09160-06066-000

$3,97

Unit Price

WASHER (6.5X30X1.2)

09160-06071-000 0916006071000

Not available

WASHER(6.5X22X1.6)

09160-06012-000

09160-06054-000

$2,97

Unit Price

SPACER
SPACER (6.6X9X9.5)

35766-26470-000 3576626470000

$4,97

Unit Price

09180-06289
SPACER (6.8X10X11.5)

09180-06006-000

Not available

DISCONTINUE
CUSHION

09320-09012-000 0932009012000

Not available

DISCONTINUE
CUSHION

09320-14010-000 0932014010000

Not available

CUSHION, RR COMBINATION
CUSHION

35765-35300-000 3576535300000

$6,97

Unit Price

NUT

08316-26066-000

08316-10067-000

$3,97

Unit Price

DISCONTINUED

35726-43400-000 3572643400000

Not available

BRACKET, TAIL LAMP

35726-43401-000 3572643401000

Not available

01550-0616A
SCREW

01517-06166-000

Not available

NUT

08316-26066-000

08316-10067-000

$3,97

Unit Price

PLATE, RR LICENSE
BRACKET, LICENCE PLATE

35927-44110-000 3592744110000

$57,97

Unit Price

BOLT

01517-06125-000

01517-06123-000

$3,97

Unit Price

NUT

08316-26066-000

08316-10067-000

$3,97

Unit Price

CUSHION
CUSHION, LICENCE PLATE

09321-06023-000 0932106023000

$3,97

Unit Price

DISCONTINUE
REFLEX REFLECTOR, REAR SIDE

35950-49330-000 3595049330000

Not available

SPACER, RH

35977-43400-000 3597743400000

Not available

SPACER, LH

35978-43400-000 3597843400000

Not available

WASHER, 5.2X16X1
WASHER

09160-05013-000 0916005013000

$2,97

Unit Price

08310-0005A

08310-11056-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki of GSX-E. Let us know if you have any questions.
