CYLINDER

CRANKCASE FOR SUZUKI KINGQUAD 500 2007

CRANKCASE COVER

Item numbers

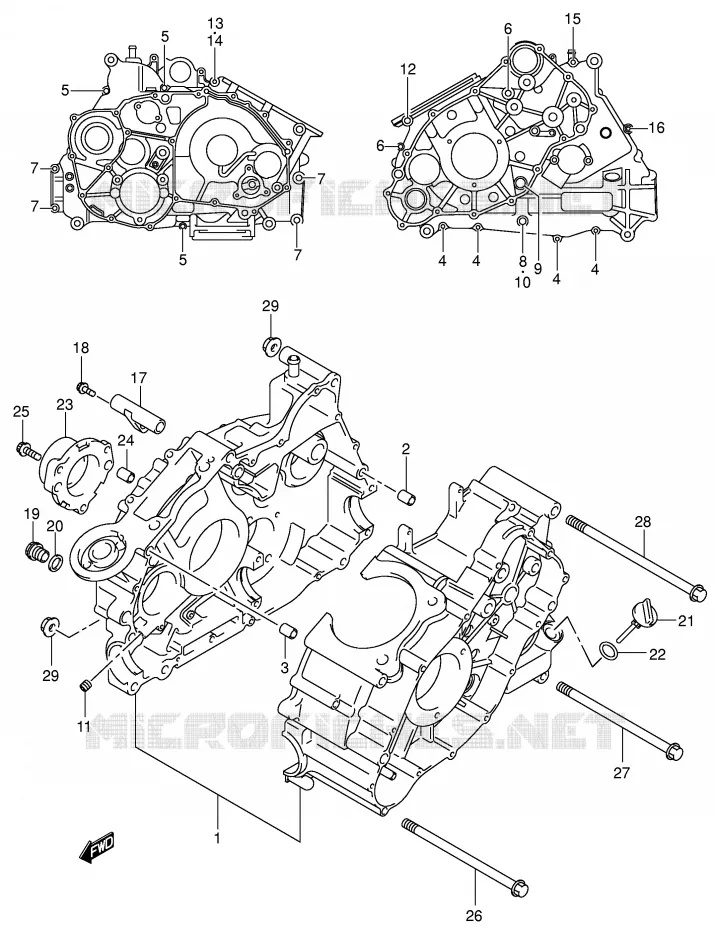

CRANKCASE Suzuki QUAD 500 KINGQUAD 2007 LT-A500FK7(P28/P33)
1
2
3
4
4
4
4
5
5
5
6
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
29
1
CRANKCASE SET

11301-03811-000  

11301-03812-000
 1130103811000

Unit Price

2
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

3
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

4
BOLT

01547-06453-000  

01547-0645B-000
 0154706453000

Unit Price

5
BOLT

01547-06553-000  

01547-0655B-000
 0154706553000

Unit Price

6
BOLT

01547-06753-000  

01547-0675A-000
 0154706753000

Unit Price

7
BOLT

09103-08081-000  

01550-08507-000
 0910308081000

Unit Price

8
BOLT, 8X60
BOLT

09103-08217-000   0910308217000

0910308217000

Unit Price

9
BOLT
BOLT, LH (8X105)

09103-08179-000   0910308179000

0910308179000

Unit Price

10
GASKET,8.2X14X1<br />GASKET, LH
GASKET, 8.2X14X1
GASKET, LH

09168-08016-000   0916808016000

0916808016000

Unit Price

11
PLUG(1/8PT, H:8)
PLUG, RH

09246-05006-000   0924605006000

0924605006000

Unit Price

12
BOLT(8X137)
BOLT, LH (8X137)

09103-08297-000   0910308297000

0910308297000

Unit Price

13
BOLT(8X125)<br />BOLT, RH (8X125)
BOLT(8X125)
BOLT, RH (8X125)

09103-08182-000   0910308182000

0910308182000

Unit Price

14
GASKET,8.2X14X1<br />GASKET, RH
GASKET, 8.2X14X1
GASKET, RH

09168-08016-000   0916808016000

0916808016000

Unit Price

15
DISCONTINUE
BOLT (L:120)

09103-06255-000   0910306255000

0910306255000
Not available
16
BOLT

01547-06953-000  

01547-0695B-000
 0154706953000

Unit Price

17
DISCONTINUE
PIPE, BREATHER

11317-09F50-000   1131709F50000

1131709F50000
Not available
18
BOLT

07120-06123-000  

07120-0612B-000
 0712006123000

Unit Price

19
PLUG, PRESSURE SW
PLUG, OIL PRESSURE

09247-14015-000   0924714015000

0924714015000

Unit Price

20
GASKET,13.8X18.8X0.4<br />GASKET, OIL PRESSURE PLUG
GASKET, 13.8X18.8X0.4
GASKET, OIL PRESSURE PLUG

09168-14002-000   0916814002000

0916814002000

Unit Price

21
GAUGE, OIL LEVEL

11971-09F50-000   1197109F50000

1197109F50000

Unit Price

22
O-RING,OIL FILLER<br />O RING, OIL LEVEL GAUGE
O-RING, OIL FILLER
O RING, OIL LEVEL GAUGE

09280-17003-000   0928017003000

0928017003000

Unit Price

23
DISCONTINUE
HOUSING, SECONDARY SHAFT BEARING

11313-09F60-000   1131309F60000

1131309F60000
Not available
24
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

25
BOLT

09106-08121-000   0910608121000

0910608121000

Unit Price

26
BOLT,L:180<br />BOLT (10X180)
BOLT, L:180
BOLT (10X180)

09103-10136-000   0910310136000

0910310136000

Unit Price

26
09103-10136
BOLT (10X180)

11611-03G00-000   1161103G00000

1161103G00000
Not available
27
BOLT,L:180<br />BOLT (10X180)REAR LOWER
BOLT, L:180
BOLT (10X180)REAR LOWER

09103-10136-000   0910310136000

0910310136000

Unit Price

27
09103-10136
BOLT (10X180)REAR LOWER

11611-03G00-000   1161103G00000

1161103G00000
Not available
28
BOLT,L:205<br />BOLT (10X205)REAR UPPER
BOLT, L:205
BOLT (10X205)REAR UPPER

09103-10145-000   0910310145000

0910310145000

Unit Price

29
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of KINGQUAD. Let us know if you have any questions.
