FRONT MASTER CYLINDER

SWINGARM FOR SUZUKI KINGQUAD 500 2007

RIGHT HAND REAR WHEEL

Item numbers

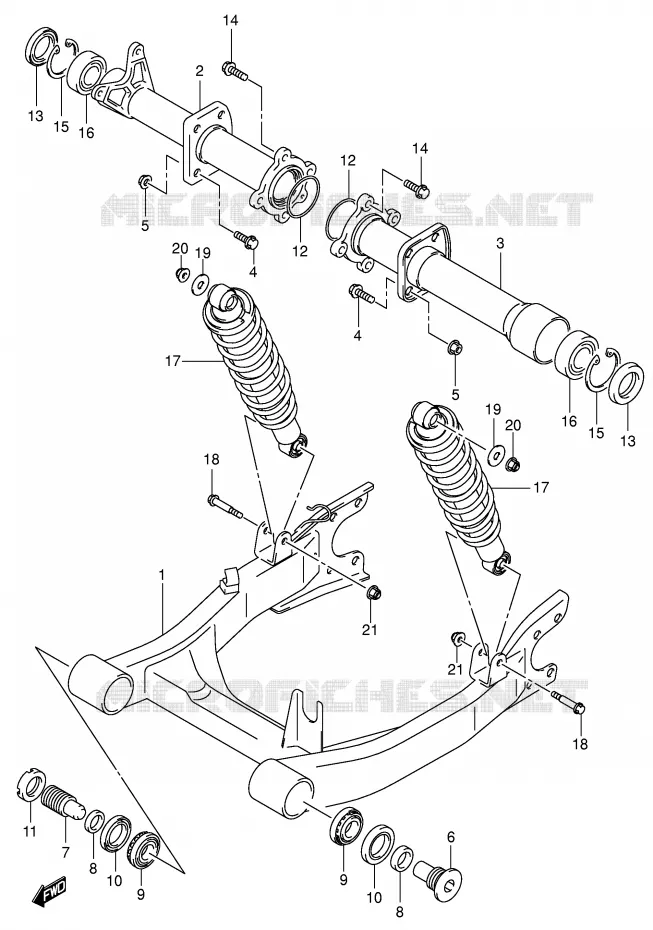

SWINGARM Suzuki QUAD 500 KINGQUAD 2007 LT-A500FK7(P28/P33)
1
2
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
12
12
13
13
14
14
14
14
15
15
16
16
17
17
17
17
18
18
19
19
20
20
21
21
1
DISCONTINUE
SWINGINGARM, REAR

61100-03G00-000   6110003G00000

6110003G00000
Not available
2
DISCONTINUE
HOUSING, REAR AXLE R

61300-03G20-000   6130003G20000

6130003G20000
Not available
3
HOUSING COMP, RR AXLE
HOUSING, REAR AXLE L

61400-03G20-000   6140003G20000

6140003G20000

Unit Price

4
BOLT 10X20
BOLT, REAR SWGARM BRACKET

09103-10216-000   0910310216000

0910310216000

Unit Price

5
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

6
BOLT, RR SWGARM PIVOT, L
BOLT, PIVOT L

61213-03G20-000   6121303G20000

6121303G20000

Unit Price

6
61213-03G20
BOLT, PIVOT L

61213-03G00-000   6121303G00000

6121303G00000
Not available
7
BOLT, RR SWGARM PIVOT, R
BOLT, PIVOT R

61213-03G30-000   6121303G30000

6121303G30000

Unit Price

7
61213-03G30
BOLT, PIVOT R

61213-03G10-000   6121303G10000

6121303G10000
Not available
8
SPACER, RR SWGARM PIVOT
SPACER, PIVOT

61251-03G00-000   6125103G00000

6125103G00000

Unit Price

9
BEARING, RR SWGARM PI
BEARING, PIVOT

09265-17014-000   0926517014000

0926517014000

Unit Price

10
SEAL,OIL
SEAL, OIL

09285-25003-000  

09285-25007-000
 0928525003000

Unit Price

11
NUT, RR SWGARM PIVOT
NUT, PIVOT

61214-03G00-000   6121403G00000

6121403G00000

Unit Price

12
DRIVEN BEVEL P RING
O RING, REAR AXLE HOUSING

09280-70005-000   0928070005000

0928070005000

Unit Price

13
SEAL, RR AXLE HSG
SEAL, REAR AXLE HOUSING

09283-38022-000   0928338022000

0928338022000

Unit Price

14
BOLT(10X30)
BOLT, AXLE HOUSING

09103-10343-000   0910310343000

0910310343000

Unit Price

14
09103-10421
BOLT, RR AXLE HSG

09103-10410-000   0910310410000

0910310410000
Not available
15
CIRCLIP

08331-41559-000  

0833141559000
Not available
16
BEARING
BEARING, HUB

08123-60067-000   0812360067000

0812360067000

Unit Price

17
RR SHOCK ABSORB ASM
ABSORBER ASSY, REAR SHOCK (BLACK)

62100-03G50-019   6210003G50019

6210003G50019

Unit Price

17
ABSORBER ASSY, R
ABSORBER ASSY, REAR SHOCK (BLACK)

62100-03G60-019   6210003G60019

6210003G60019

Unit Price

18
BOLT 10X48<br />BOLT
BOLT 10X48
BOLT

09103-10126-000   0910310126000

0910310126000

Unit Price

19
WASHER<br />WASHER, UPPER OUTER
WASHER
WASHER, UPPER OUTER

09160-10501-000   0916010501000

0916010501000

Unit Price

20
NUT

08319-31103-000  

08319-3110A-000
 0831931103000

Unit Price

21
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 500 KINGQUAD 2007
