Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK

FRAME FOR SUZUKI KINGQUAD 500 2010

FOOTREST

Item numbers

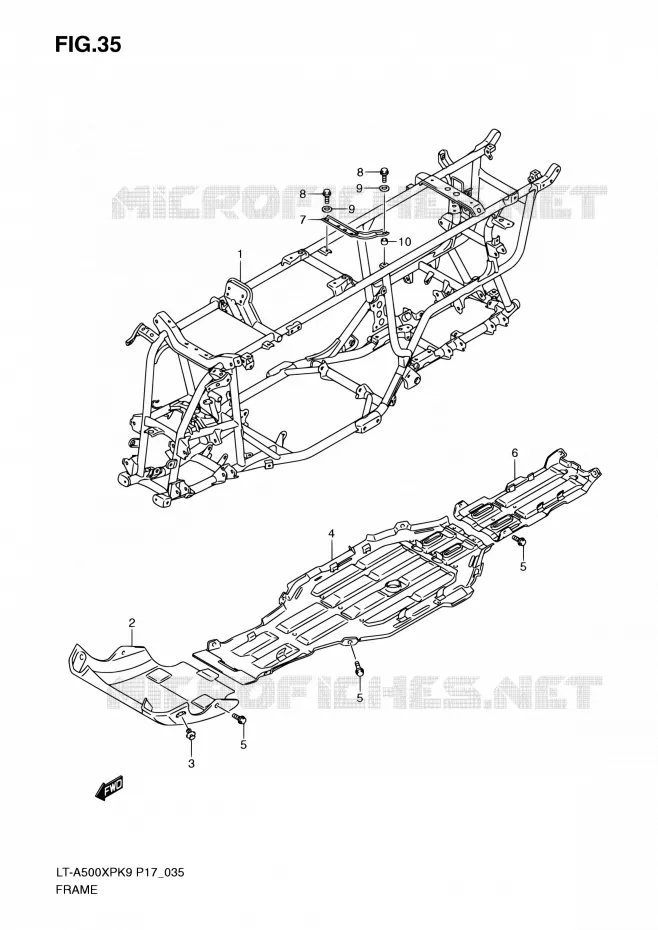

FRAME Suzuki QUAD 500 KINGQUAD 2010 LT-A500XP L0 (P17,P24)
1
1
2
3
4
5
5
5
6
7
8
8
9
9
10
1
500XP KINGQUAD FRAME

41100-31H01-019  

41100-31H03-019
 4110031H01019

Unit Price

1
41100-31H03-019
FRAME (BLACK)

41100-31H02-019   4110031H02019

4110031H02019
Not available
2
PROTECTOR, FR
PROTECTOR, FRONT (BLACK)

42521-31G00-291   4252131G00291

4252131G00291

Unit Price

3
CLIP, FENDER
CLIP

09409-08335-000   0940908335000

0940908335000

Unit Price

4
PROTECTOR, ENGINE

42511-31G02-000  

42511-31G03-000
 4251131G02000

Unit Price

5
BOLT
SCREW, PROTECTOR

09111-06085-000   0911106085000

0911106085000

Unit Price

6
42531-31G01-291
PROTECTOR, REAR

42531-31G01-000  

4253131G01000
Not available
7
PLATE, BATTERY

41561-31GB0-000   4156131GB0000

4156131GB0000

Unit Price

8
BOLT, 6X16
BOLT

09103-06283-000   0910306283000

0910306283000

Unit Price

9
WASHER
WASHER

09160-06109-000   0916006109000

0916006109000

Unit Price

10
PLATE, BATTERY

41562-31GB0-000  

41561-31G01-000
 4156231GB0000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 500 KINGQUAD 2010

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 500 KINGQUAD 2010

Select your Suzuki 2010 model

500 KINGQUAD 2010 LT-A500XP L0 (P17,P24)

Suzuki KINGQUAD

Displacement: 500 cc
Year: 2010
Model code LT-A500XP L0 (P17,P24)
4X4 AUTOMATIC DIRECTION ASSISTEE
