TRANSMISSION (2)

DRIVESHAFT FOR SUZUKI KINGQUAD 500 2010

GEAR SHIFTING ASSY

Item numbers

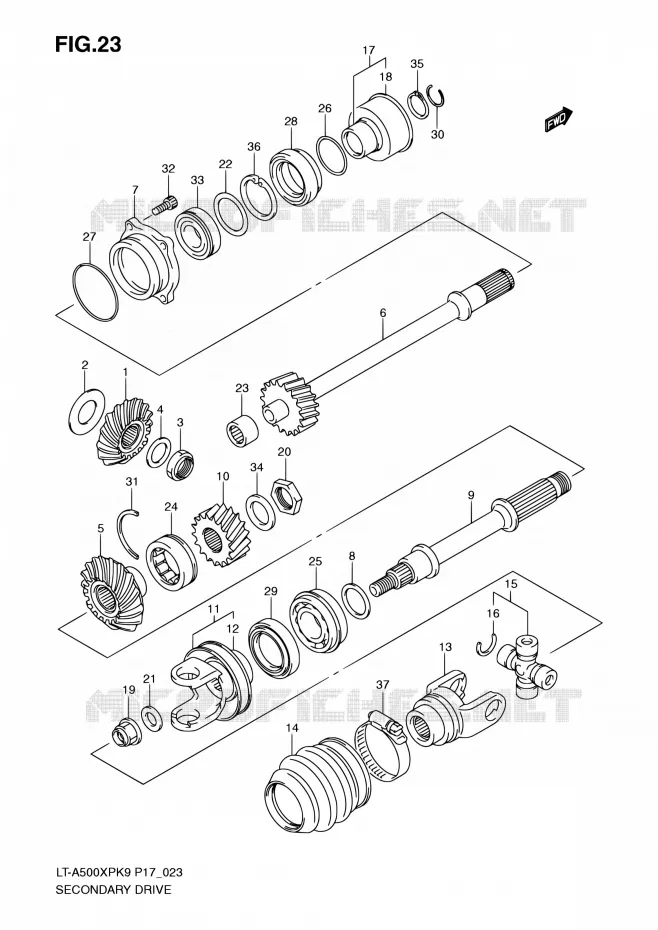

DRIVESHAFT Suzuki QUAD 500 KINGQUAD 2010 LT-A500XP L0 (P17,P24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVE BEVEL

24911-11H00-000   2491111H00000

2491111H00000

Unit Price

2
SHIM SET, SEC DRIVE BEVEL

24935-03811-000   2493503811000

2493503811000

Unit Price

3
NUT 20MM
NUT, SEC DRIVE BEVEL

09140-20012-000   0914020012000

0914020012000

Unit Price

4
WASHER<br />WASHER, SEC DRIVE BEVEL
WASHER
WASHER, SEC DRIVE BEVEL

09181-20223-000   0918120223000

0918120223000

Unit Price

5
GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVEN BEVEL

24921-11H00-000   2492111H00000

2492111H00000

Unit Price

6
24961-31H10
SHAFT, SEC OUTPUT, FR

24961-31H00-000   2496131H00000

2496131H00000
Not available
7
HOUSING, FR OUTPUT SHAFT BRG
HOUSING, FR OUTPUT SHAFT

24965-31G00-000   2496531G00000

2496531G00000

Unit Price

8
SHIM SET, SEC DRIVEN BEVEL

24945-03811-000   2494503811000

2494503811000

Unit Price

9
SHAFT, SEC DRIVEN OUTPUT RR
SHAFT, SEC OUTPUT, RR

24971-11H00-000   2497111H00000

2497111H00000

Unit Price

10
GEAR, SEC DRIVEN OUTPUT SHAFT
GEAR, SEC DRIVEN OUTPUT

24972-31G20-000   2497231G20000

2497231G20000

Unit Price

11
YOKE, RR DRIVE OUTPUT
YOKE, RR DRIVE OUT

27130-31G10-000   2713031G10000

2713031G10000

Unit Price

12
FLANGE, OUTPUT YOKE BOOT
.FLANGE, OUTPUT YOKE

27592-31G30-000   2759231G30000

2759231G30000

Unit Price

13
FLANGE, RR OUTPUT SHAFT
YOKE, PROP SHAFT

27141-31G00-000   2714131G00000

2714131G00000

Unit Price

14
BOOT, RR PROP SHAFT

27153-31G00-000  

27153-31G01-000
 2715331G00000

Unit Price

15
JOINT SET, UNIVERSAL RR

27200-73813-000  

27200-73814-000
 2720073813000

Unit Price

16
RING, SNAP
.CIRCLIP, UNIVERSAL JOINT

09380-25005-000   0938025005000

0938025005000

Unit Price

17
COLLAR, FR DRIVE OUTPUT
COLLAR, FRONT DRIVE

27590-31G00-000   2759031G00000

2759031G00000

Unit Price

18
.PLATE, OUTPUT OIL SEAL

27592-31G00-000   2759231G00000

2759231G00000

Unit Price

19
NUT
NUT, RR DRIVE OUTPUT YOKE

09159-16003-000   0915916003000

0915916003000

Unit Price

20
NUT, PRIMARY SHAFT
NUT, SEC DRIVEN OUTPUT

09159-22005-000   0915922005000

0915922005000

Unit Price

21
WASHER, SEC DRIVE**S1
WASHER, RR DRIVE OUTPUT

09160-16026-000   0916016026000

0916016026000

Unit Price

22
SHIM, T:1.0
WASHER, FR DRIVE OUTPUT

09181-40195-000   0918140195000

0918140195000

Unit Price

23
BEARING, FRONT OUTPUT
BEARING, FRONT OUTPUT, RR

09263-25068-000   0926325068000

0926325068000

Unit Price

24
BEARING
BEARING, SEC DRIVEN GEAR

09263-30050-000   0926330050000

0926330050000

Unit Price

25
BEARING, REAR OUTPUT

09267-25014-000   0926725014000

0926725014000

Unit Price

26
O RING
O-RING, FR DRIVE OUTPUT

09280-25005-000   0928025005000

0928025005000

Unit Price

27
O RING(D:3.5, ID:65.2)
O-RING, FRONT BRG HOUSING

09280-57002-000   0928057002000

0928057002000

Unit Price

28
OIL SEAL 34X52X14
SEAL, FRONT OUTPUT SHAFT

09283-34008-000   0928334008000

0928334008000

Unit Price

29
OIL SEAL 34X52X14
SEAL, REAR OUTPUT SHAFT

09283-34008-000   0928334008000

0928334008000

Unit Price

30
CIRCLIP PISTON PIN
C-RING, SEC DRIVEN OUTPUT

09381-21002-000   0938121002000

0938121002000

Unit Price

31
C RING
RING, SEC DRIVEN GEAR

09390-50002-000   0939050002000

0939050002000

Unit Price

32
BOLT<br />BOLT, FRONT BRG HOUSING
BOLT
BOLT, FRONT BRG HOUSING

07130-0620B-000   071300620B000

071300620B000

Unit Price

33
BEARING(25X52X15)<br />BEARING, FRONT OUTPUT, FR
BEARING(25X52X15)
BEARING, FRONT OUTPUT, FR

09262-25003-000   0926225003000

0926225003000

Unit Price

34
WASHER
WASHER, OUTPUT SHAFT GE

08211-22365-000   0821122365000

0821122365000

Unit Price

35
CIRCLIP

08331-3125A-000  

08331-31259-000
 083313125A000

Unit Price

36
CIRCLIP

08331-4152A-000  

08331-41529-000
 083314152A000

Unit Price

37
CLAMP

09402-00512-000   0940200512000

0940200512000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki of KINGQUAD. Let us know if you have any questions.
