CRANKSHAFT FOR SUZUKI KINGQUAD 500 2014

STARTER MOTOR CLUTCH

Item numbers

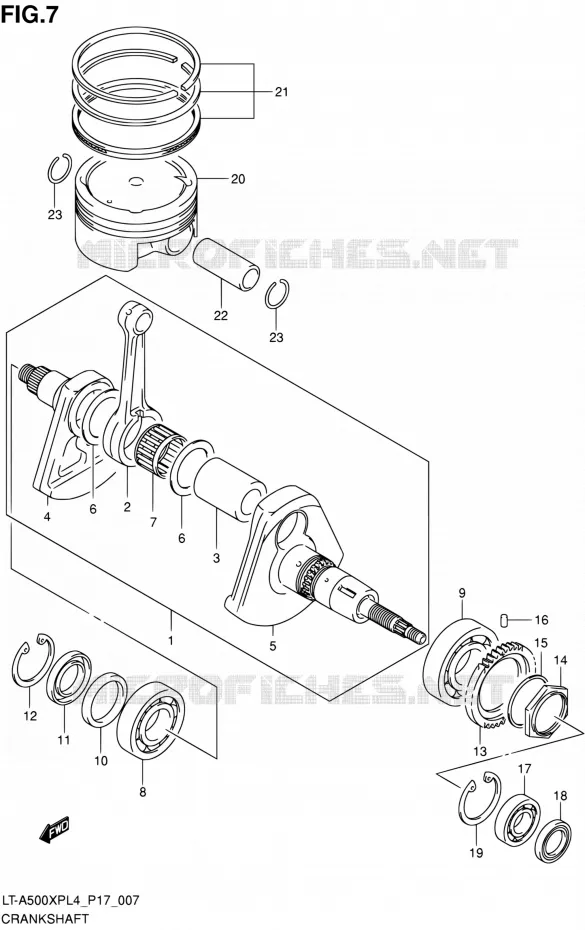

CRANKSHAFT Suzuki QUAD 500 KINGQUAD 2014 LT-A500XP L4/LT-A500XPZ L4 (P17)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
1
CRANKSHAFT ASSY

12200-11H00-000   1220011H00000

1220011H00000

Unit Price

2
CONNECTING ROD
.CONNROD

12161-11H00-000   1216111H00000

1216111H00000

Unit Price

3
.PIN, CRANK

12210-11H00-000   1221011H00000

1221011H00000

Unit Price

4
CRANKSHAFT, R
.CRANKSHAFT RH

12220-11H00-000   1222011H00000

1222011H00000

Unit Price

5
CRANKSHAFT, L
.CRANKSHAFT LH

12261-11H00-000   1226111H00000

1226111H00000

Unit Price

6
THRUST WASHER CONROD
.WASHER (35X55X1)

09160-35005-000   0916035005000

0916035005000

Unit Price

7
.BEARING (35X44X25)

09263-35043-000   0926335043000

0926335043000

Unit Price

8
BEARING (40X80X18)

09262-40008-000   0926240008000

0926240008000

Unit Price

9
BEARING (45X85X19)

09262-45007-000   0926245007000

0926245007000

Unit Price

10
SEAL, CRANKSHAFT OIL,
OIL SEAL (34X49X6)

09282-34003-000   0928234003000

0928234003000

Unit Price

11
SEAL, OIL(34X52X6)
OIL SEAL (34X52X6)

09282-34001-000   0928234001000

0928234001000

Unit Price

12
CIRCLIP

08331-41529-000   0833141529000

0833141529000

Unit Price

13
GEAR, CRANK BALANCER DRIVE
GEAR, CRANK BALANCER DRIVE (NT:43)

12661-31G01-000   1266131G01000

1266131G01000

Unit Price

14
NUT, CRANK BALANCER DRIVE GEAR

12664-31G00-000   1266431G00000

1266431G00000

Unit Price

15
WASHER (45X60X1.2)

09160-45006-000   0916045006000

0916045006000

Unit Price

16
KNOCK PIN, SPROCKET
PIN (5X8)

09261-05005-000   0926105005000

0926105005000

Unit Price

17
BEARING, ROLLER KOYO<br />BEARING (25X47X8)
BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000   0926225006000

0926225006000

Unit Price

18
SEAL, OIL(25X42X6)
OIL SEAL (25X42X6)

09283-25095-000   0928325095000

0928325095000

Unit Price

19
CIRCLIP, CRANKSH
CIRCLIP

08331-41479-000   0833141479000

0833141479000

Unit Price

20
PISTON

12111-31H00-0F0  

12111-31H10-0F0
 1211131H000F0

Unit Price

21
RING SET, PISTON

12140-03G20-000   1214003G20000

1214003G20000

Unit Price

22
PIN, PISTON

12151-24A00-000   1215124A00000

1215124A00000

Unit Price

23
CIRCLIP PISTON PIN<br />SNAP RING
CIRCLIP PISTON PIN
SNAP RING

09381-20004-000   0938120004000

0938120004000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of KINGQUAD. Let us know if you have any questions.
