STEERING LINKAGE - HUB

STEERING COLUMN FOR SUZUKI KINGQUAD 500 2014

FRONT SUSPENSION ARM

Item numbers

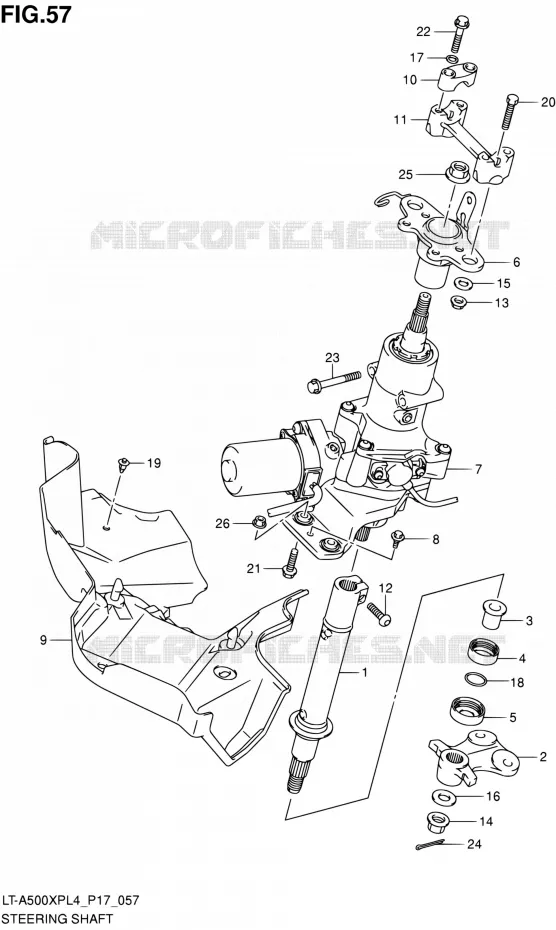

STEERING COLUMN Suzuki QUAD 500 KINGQUAD 2014 LT-A500XP L4/LT-A500XPZ L4 (P17)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
SHAFT, STEERING

51650-31G40-000   5165031G40000

5165031G40000

Unit Price

2
PLATE, STEERING ARM

51653-31G30-000   5165331G30000

5165331G30000

Unit Price

3
BUSH, STEERING SHAFT LWR
BUSH, STEERING SHAFT LOWER

51661-31G00-000   5166131G00000

5166131G00000

Unit Price

4
SEAL, DUST

51662-31G00-000  

51662-31G01-000
 5166231G00000

Unit Price

5
SEAL, DUST

51663-31G10-000  

51663-31G11-000
 5166331G10000

Unit Price

6
PLATE, STEERING SHAFT

51680-31G00-000   5168031G00000

5168031G00000

Unit Price

7
BODY ASSY, STEERING EPS

51700-31G00-000  

51700-31G19-000
 5170031G00000

Unit Price

8
BOLT
BOLT (6X12)

09111-06085-000   0911106085000

0911106085000

Unit Price

9
PLATE, EPS ECU

51771-31G00-000   5177131G00000

5177131G00000

Unit Price

10
HOLDER, HANDLE LWR
CLAMP, HANDLE HOLDER UP (BLACK)

56211-09F00-291   5621109F00291

5621109F00291

Unit Price

11
CLAMP, HANDLE HOLDER

56211-31G10-291  

56211-31G10-000
 5621131G10291

Unit Price

12
BOLT
BOLT (8X25)

09106-08129-000   0910608129000

0910608129000

Unit Price

13
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

14
NUT

09159-14027-000   0915914027000

0915914027000

Unit Price

15
WASHER<br />WASHER (10.5X22X2.3)
WASHER
WASHER (10.5X22X2.3)

09160-10039-000   0916010039000

0916010039000

Unit Price

16
WASHER, 14.5X30X
WASHER (14.5X30X3.2)

09160-14062-000   0916014062000

0916014062000

Unit Price

17
WASHER HANDLEBAR<br />WASHER
WASHER HANDLEBAR
WASHER

09164-08015-000   0916408015000

0916408015000

Unit Price

18
O-RING<br />O RING (D:2.4,ID:23.7)
O-RING
O RING (D:2.4, ID:23.7)

09280-24010-000   0928024010000

0928024010000

Unit Price

19
CLIP

09409-07333-000   0940907333000

0940907333000

Unit Price

20
BOLT

01500-1035A-000   015001035A000

015001035A000

Unit Price

21
BOLT

01550-0830A-000   015500830A000

015500830A000

Unit Price

22
BOLT
BOLT

01550-0835A-000   015500835A000

015500835A000
Not available
23
BOLT

01550-0875A-000   015500875A000

015500875A000

Unit Price

24
PIN
PIN

04111-2020A-000   041112020A000

041112020A000

Unit Price

25
NUT

08316-1014A-000   083161014A000

083161014A000

Unit Price

26
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING COLUMN of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 500 KINGQUAD 2014
