STARTER MOTOR CLUTCH

CRANK BALANCER FOR SUZUKI KINGQUAD 500 2016

CAMSHAFT - VALVES

Item numbers

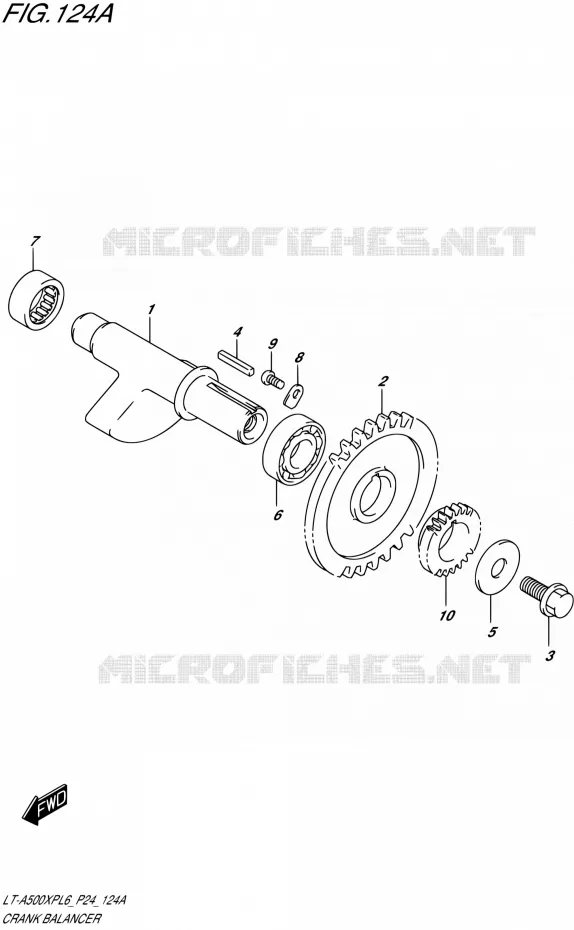

CRANK BALANCER Suzuki QUAD 500 KINGQUAD 2016 LT-A500XP L6 (P24)
1
2
3
4
5
6
7
8
9
10
1
BALANCER, CRANK

12650-11H00-000   1265011H00000

1265011H00000

Unit Price

2
GEAR, CRANK BALANCER DRIVEN
GEAR, CRANK BALANCER DRIVEN (NT:43)

12666-11H00-000   1266611H00000

1266611H00000

Unit Price

3
BOLT (10X20)

09103-10290-000   0910310290000

0910310290000

Unit Price

4
KEY
KEY

09421-04004-000   0942104004000

0942104004000

Unit Price

5
WASHER
WASHER

08211-10305-000   0821110305000

0821110305000

Unit Price

6
BEARING CRANK
BEARING (20X42X12)

09262-20137-000   0926220137000

0926220137000

Unit Price

7
BEARING (20X28X16)

09263-20110-000   0926320110000

0926320110000

Unit Price

8
RETAINER<br />RETAINER, CRANK GAL BRG
RETAINER
RETAINER, CRANK GAL BRG

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

9
BOLT, (6X12)
SCREW (6X12)

09125-06122-000   0912506122000

0912506122000

Unit Price

10
GEAR, OIL PUMP DRIVE
GEAR, OIL PUMP DRIVE (NT:21)

16321-11H00-000   1632111H00000

1632111H00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANK BALANCER of your Suzuki of KINGQUAD. Let us know if you have any questions.
