Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TIMING

THROTTLE BODY FOR SUZUKI KINGQUAD 500 2016

AIR FILTER

Item numbers

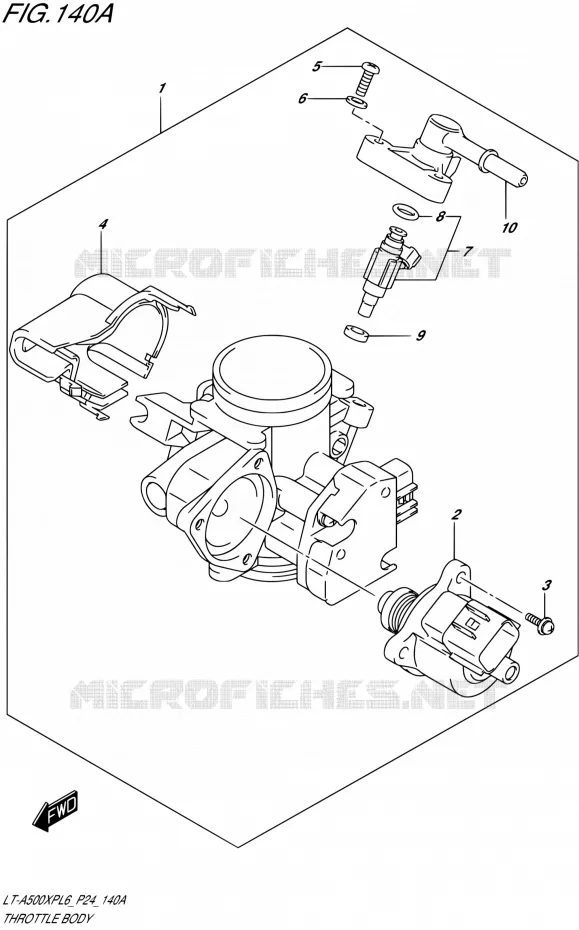

THROTTLE BODY Suzuki QUAD 500 KINGQUAD 2016 LT-A500XP L6 (P24)
1
2
3
4
5
6
7
8
9
10
1
BODY ASSY, THROTTLE

13400-31H02-000  

13400-31H03-000
 1340031H02000

Unit Price

2
MOTER, ISC STEPPING
.MOTOR, ISC STEPPING

13520-31G00-000   1352031G00000

1352031G00000

Unit Price

3
.SCREW

13601-13G00-000   1360113G00000

1360113G00000

Unit Price

4
.COVER

13578-31G00-000   1357831G00000

1357831G00000

Unit Price

5
.SCREW

13601-11J00-000   1360111J00000

1360111J00000

Unit Price

6
PACKING

13602-29G00-000  

13602-29G01-000
 1360229G00000

Unit Price

7
.INJECTOR ASSY, FUEL

15710-11H00-000   1571011H00000

1571011H00000

Unit Price

8
..O RING

15717-16G00-000   1571716G00000

1571716G00000

Unit Price

9
.SEAL

15722-29G00-000   1572229G00000

1572229G00000

Unit Price

10
.DELIVERY PIPE

15731-31G10-000   1573131G10000

1573131G10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 500 KINGQUAD 2016

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 500 KINGQUAD 2016

Select your Suzuki 2016 model

500 KINGQUAD 2016 LT-A500XP L6 (P24)

Suzuki KINGQUAD

Displacement: 500 cc
Year: 2016
Model code LT-A500XP L6 (P24)
4X4 AUTOMATIC DIRECTION ASSISTEE
