WATER PUMP

RADIATOR FOR SUZUKI KINGQUAD 500 2017

RADIATOR HOSE

Item numbers

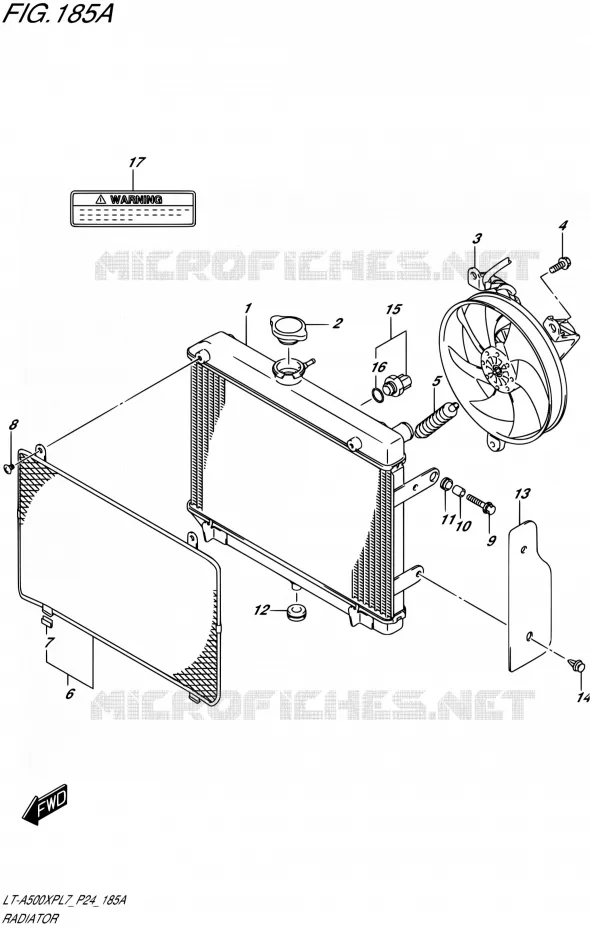

RADIATOR Suzuki QUAD 500 KINGQUAD 2017 LT-A500XP L7 (P24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
RADIATOR ASSY

17710-31G40-000   1771031G40000

1771031G40000

Unit Price

2
CAP, RADIATOR(1.1)
CAP ASSY, RADIATOR

17730-14G00-000   1773014G00000

1773014G00000

Unit Price

3
17800-31G10
FAN ASSY, RADIATOR

17800-31G20-000   1780031G20000

1780031G20000
Not available
4
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

5
BOOT, RDTR FAN MOTOR

17820-07G10-000   1782007G10000

1782007G10000

Unit Price

6
17760-09F10

17760-09F00-000  

1776009F00000
Not available
7
PROTECTOR,CTR
PROTECTOR, CTR

17765-09F00-000  

17765-09F01-000
 1776509F00000

Unit Price

8
SCREW
SCREW

02142-0608A-000   021420608A000

021420608A000

Unit Price

9
BOLT 6*25<br />BOLT (6X25)
BOLT 6*25
BOLT (6X25)

09118-06097-000   0911806097000

0911806097000

Unit Price

10
SPACER (6.5X10X12)
SPACER (6.5X10X12)

09180-06290-000   0918006290000

0918006290000

Unit Price

11
CUSHION
CUSHION

09320-10042-000   0932010042000

0932010042000

Unit Price

12
CUSHION

09320-12036-000   0932012036000

0932012036000

Unit Price

13
GUARD, RADIATOR FAN

17811-31G00-000   1781131G00000

1781131G00000

Unit Price

14
CLIP

09409-07333-000   0940907333000

0940907333000

Unit Price

15
SWITCH COMP, RDTR FAN

17680-50F00-000  

17680-50F01-000
 1768050F00000

Unit Price

16
.O RING
.O RING

17689-50F00-000   1768950F00000

1768950F00000
Not available
17
LABEL,COOLING FAN
LABEL, COOLING FAN

17991-02F01-000  

17991-02F02-000
 1799102F01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Suzuki KINGQUAD 500 POWER STEERING of KINGQUAD. Let us know if you have any questions.
