FRONT DRIVE SHAFT

REAR WHEEL AXLE FOR SUZUKI KINGQUAD 500 2017

BRAKE PEDAL

Item numbers

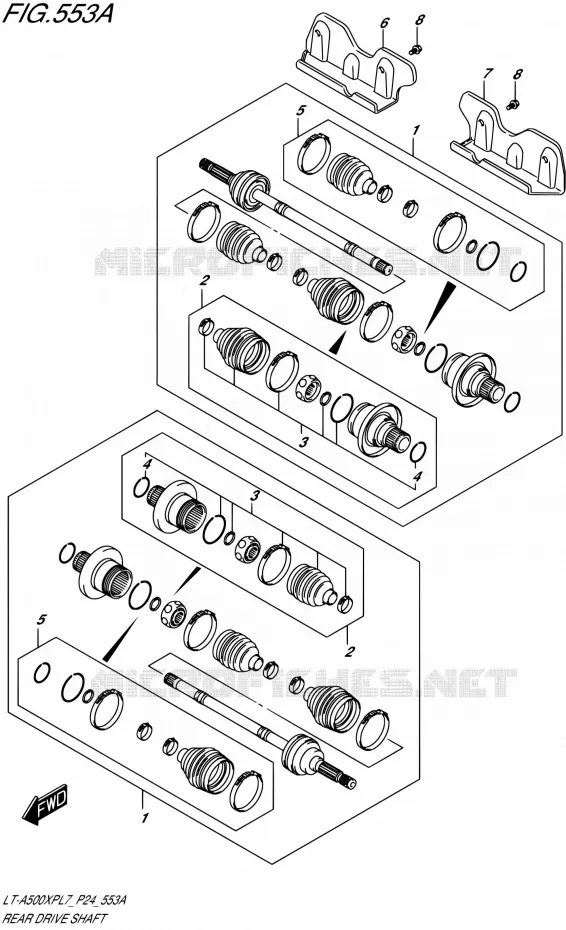

REAR WHEEL AXLE Suzuki QUAD 500 KINGQUAD 2017 LT-A500XP L7 (P24)
1
1
2
2
3
3
4
4
5
5
6
7
8
8
1
SHAFT ASSY, RR DRIVE
SHAFT ASSY, REAR DRIVE

64901-31G31-000   6490131G31000

6490131G31000

Unit Price

2
.JOINT SET

64933-31G21-000   6493331G21000

6493331G21000

Unit Price

3
BOOT SET
..BOOT SET, INNER

64931-31G21-000   6493131G21000

6493131G21000

Unit Price

4
...CIRCLIP

54925-31G01-000   5492531G01000

5492531G01000

Unit Price

5
BOOT SET
.BOOT SET, OUTER

64930-31G21-000   6493031G21000

6493031G21000

Unit Price

6
64903-31G11
PROTECTOR, RR DRIVE SHAFT RH

64903-31G10-000   6490331G10000

6490331G10000
Not available
7
64904-31G11
PROTECTOR, RR DRIVE SHAFT LH

64904-31G10-000   6490431G10000

6490431G10000
Not available
8
BOLT
BOLT (6X12)

09111-06085-000   0911106085000

0911106085000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL AXLE of your Suzuki KINGQUAD 500 POWER STEERING of KINGQUAD. Let us know if you have any questions.
