FUEL TANK FOR SUZUKI KINGQUAD 500 2018

FRAME

Item numbers

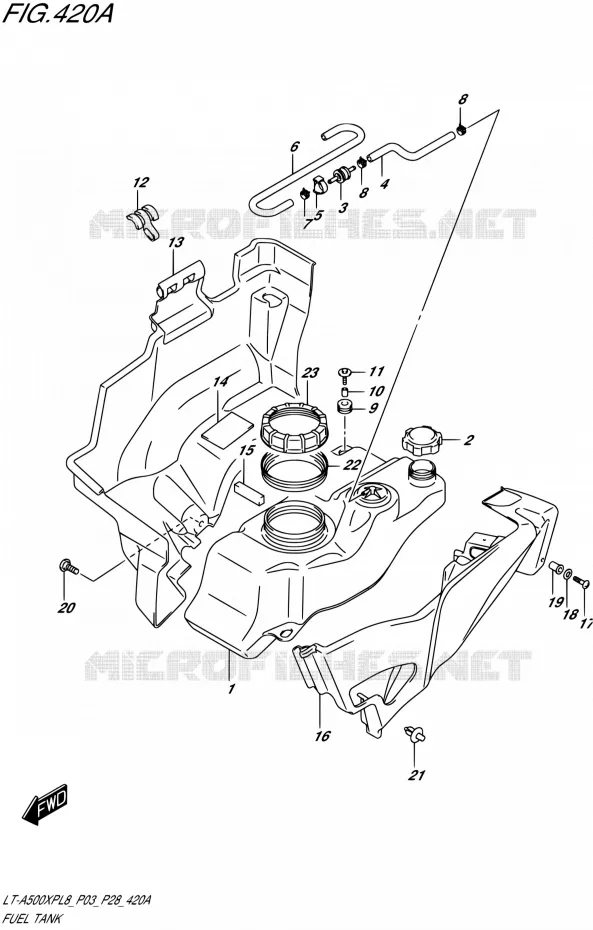

FUEL TANK Suzuki QUAD 500 KINGQUAD 2018 LT-A500XP L8 (P03)
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
44100-31G21

44100-31G21-000  

4410031G21000
Not available
2
CAP ASSY, FUEL TANK FILLER
CAP ASSY, FUEL TANK

44200-31G00-000   4420031G00000

4420031G00000

Unit Price

3
VALVE, 2WAY CHECK
VALVE, CHECK

85451-75100-000   8545175100000

8545175100000

Unit Price

4
HOSE, CHECK VALVE

44425-31G00-000  

44425-31G01-000
 4442531G00000

Unit Price

5
CUSHION, CHECK VALVE

44881-31G00-000  

44881-31G01-000
 4488131G00000

Unit Price

6
HOSE, FUEL TANK BREATHER
HOSE, TANK BREATHER

44434-31G11-000   4443431G11000

4443431G11000

Unit Price

7
CLIP

09401-08409-000   0940108409000

0940108409000

Unit Price

8
CLIP
CLIP

09401-09403-000   0940109403000

0940109403000

Unit Price

9
CUSHION, FUEL TANK RR

44281-03G00-000  

44281-03G01-000
 4428103G00000

Unit Price

10
SPACER (6.5X10X14)

09180-06293-000   0918006293000

0918006293000

Unit Price

11
BOLT
BOLT (6X30)

09116-06050-000   0911606050000

0911606050000

Unit Price

12
CUSHION, FUEL TANK SIDE
CUSHION, SIDE

44541-31G00-000  

4454131G00000
Not available
13
COVER, F/TANK LOWER
COVER, FUEL TANK LOWER

44390-31G50-000   4439031G50000

4439031G50000

Unit Price

14
CUSHION, FUEL TANK NO.1
.CUSHION, COVER NO.1

44542-10G00-000   4454210G00000

4454210G00000

Unit Price

15
CUSHION, FR FENDER SIDE
.CUSHION, COVER NO.2

53146-05G00-000   5314605G00000

5314605G00000

Unit Price

16
COVER, FUEL TANK OUTER
COVER, OUTER

44391-31G00-000   4439131G00000

4439131G00000

Unit Price

17
SCREW
SCREW

02142-0520B-000   021420520B000

021420520B000

Unit Price

18
WASHER (5.5X20X1.4)

09160-05046-000   0916005046000

0916005046000

Unit Price

19
NUT,WINDSCREEN
NUT, WINDSCREEN

09159-05019-000  

94618-48H10-000
 0915905019000

Unit Price

20
SCREW (6X16)

09139-06137-000   0913906137000

0913906137000
Not available
21
CLIP

09409-07333-000   0940907333000

0940907333000

Unit Price

22
PACKING, FUEL PUMP
GASKET, FUEL PUMP

44596-26J00-000   4459626J00000

4459626J00000

Unit Price

23
RETAINER, FUEL PUMP

44597-26J00-000   4459726J00000

4459726J00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK of your Suzuki KINGQUAD 500 AXI 4WD AUTOMATIC of KINGQUAD. Let us know if you have any questions.
