WIRING HARNESSU (LT-A500XPL8 P03)

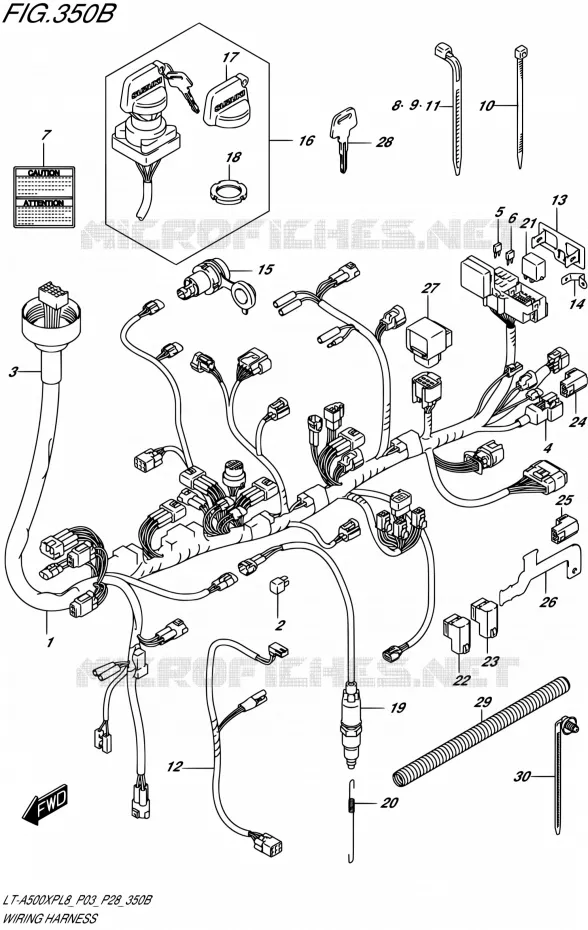

WIRING HARNESSU (LT-A500XPL8 P28) FOR SUZUKI KINGQUAD 500 2018

WIRING HARNESSU (LT-A500XPL8 P33)

Item numbers

36610-31H61
HARNESS, WIRING

36610-31H60-000 3661031H60000

Not available

RECTIFIER ASSY
.RECTIFIER

32800-16A00-000 3280016A00000

$27,97

Unit Price

DISCONTINUE
.COVER, SPEED

36618-31G00-000 3661831G00000

Not available

.COVER, CONNECTOR

36618-31G10-000 3661831G10000

$14,97

Unit Price

.FUSE (10A)

09481-10501-000

Not available

.FUSE (15A)

09481-15501-000 0948115501000

$3,97

Unit Price

LABEL, POWER SOURCE TERMINAL

38852-03G20-000

Not available

BAND, WIRING HARNESS

09407-11401-000

09407-14403-000

$3,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP
CLAMP (L:145)

09407-14407-000 0940714407000

$5,97

Unit Price

CLAMP

09407-19401-000

09407-22403-000

$3,97

Unit Price

WIRE, FR BRAKE SW LEAD
WIRE, FRONT BRAKE SW LEAD

36855-27H00-000 3685527H00000

$49,97

Unit Price

BRACKET, FUSE BOX

36744-38F00-000 3674438F00000

$9,97

Unit Price

BRACKET, FUSE

36744-31G10-000 3674431G10000

$13,97

Unit Price

TERMINAL, POWER SOURCE

38850-03G10-000 3885003G10000

$72,97

Unit Price

SWITCH ASSY, IGNITION

37110-38F00-000

37110-38F01-000

$106,97

Unit Price

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$9,97

Unit Price

NUT, IGNITION SWITCH
.NUT

37112-24500-000 3711224500000

$13,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-38F01-000 3774038F01000

$109,97

Unit Price

SPRING

09443-06080-000 0944306080000

$10,97

Unit Price

RELAY, NEUTRAL START

38730-09F00-000 3873009F00000

$44,97

Unit Price

RELAY ASSY, DEF LOCK

38740-31G01-000

38740-31G02-000

$57,97

Unit Price

RELAY ASSY, DEF LOCK

38740-31G01-000

38740-31G02-000

$57,97

Unit Price

RELAY ASSY, DEF LOCK

38740-31G01-000

38740-31G02-000

$57,97

Unit Price

PLEASE ORDER 38740-31G10

38740-31G10-000

38740-31G11-000

$39,97

Unit Price

BRACKET, RELAY

38741-31G30-000 3874131G30000

$23,97

Unit Price

RELAY ASSY, DRIVE

38750-31G00-000 3875031G00000

$160,97

Unit Price

KEY, BLANK(TYPE:C)
KEY, BLANK TYPE (C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK(TYPE:D)
KEY, BLANK TYPE (D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

KEY, BLANK(TYPE:E)
KEY, BLANK TYPE (E)

37146-19B20-000 3714619B20000

$12,97

Unit Price

KEY, BLANK(TYPE:F)
KEY, BLANK TYPE (F)

37146-19B30-000 3714619B30000

$12,97

Unit Price

GUIDE, WIRING HARNESS

36619-31G00-000 3661931G00000

$16,97

Unit Price

CLAMP
CLAMP (L:154)

09407-17403-000 0940717403000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESSU (LT-A500XPL8 P28) of your Suzuki KINGQUAD 500 AXI 4WD AUTOMATIC of KINGQUAD. Let us know if you have any questions.
