TAIL LIGHT (E24,E27)

WIRING HARNESS FOR SUZUKI QUADMASTER 500 1999

* CATALOG PREFACE *

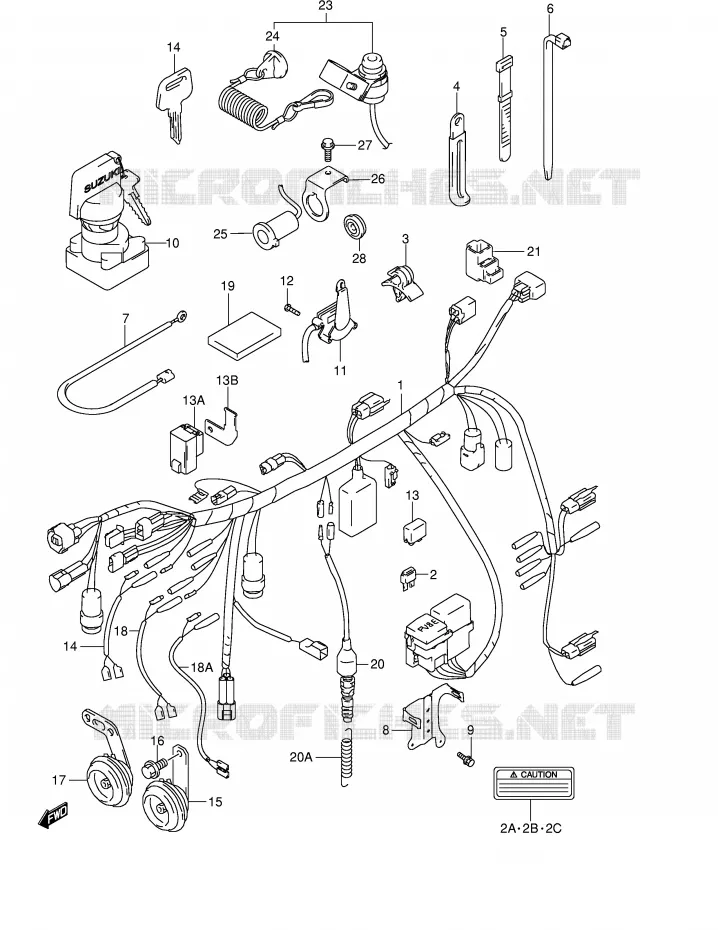

WIRING HARNESS Suzuki QUAD 500 QUADMASTER 1999 LT-F500FX(E24)
1
36610-09FV0
WIRING HARNESS

36610-09F00-000   3661009F00000

3661009F00000
Not available
1
WIRING HARNESS

36610-09F20-000   3661009F20000

3661009F20000
Not available
1
DISCONTINUE
WIRING HARNESS

36610-09F50-000   3661009F50000

3661009F50000
Not available
1
WIRING HARNESS

36610-09F70-000   3661009F70000

3661009F70000
Not available
1
DISCONTINUE
WIRING HARNESS

36610-09FA0-000   3661009FA0000

3661009FA0000
Not available
1
WIRING HARNESS

36610-09FB0-000   3661009FB0000

3661009FB0000
Not available
1
DISCONTINUE
WIRING HARNESS

36610-09FE0-000   3661009FE0000

3661009FE0000
Not available
1
WIRING HARNESS

36610-09FF0-000   3661009FF0000

3661009FF0000
Not available
2
FUSE (5A)

09481-05501-000   0948105501000

0948105501000

Unit Price

2
FUSE (20A)

09481-20501-000   0948120501000

0948120501000

Unit Price

2
FUSE (10A)
FUSE (10A)

09481-10501-000  

0948110501000
Not available
2A
LABEL, CAUTION MAX AMP

38852-09F00-000   3885209F00000

3885209F00000
Not available
2B
38852-09FB0
LABEL, CAUTION MAX AMP

38852-09F20-000   3885209F20000

3885209F20000
Not available
2C
DISCONTINUE
LABEL, CAUTION MAX AMP

38852-09FB0-000   3885209FB0000

3885209FB0000
Not available
3
CLAMP
CLAMP

09403-16307-000   0940316307000

0940316307000
Not available
4
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

5
FUEL HOSE CLAMP<br />CLAMP
FUEL HOSE CLAMP
CLAMP

09407-12402-000   0940712402000

0940712402000

Unit Price

6
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

6
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

7
WIRE, REGULATOR EARTH LEAD
WIRE, IGNITION COIL

36851-05D00-000   3685105D00000

3685105D00000

Unit Price

8
BRACKET, FUSE BOX

36744-09F00-000   3674409F00000

3674409F00000
Not available
9
BOLT (5X10)

09117-05001-000   0911705001000

0911705001000
Not available
10
SWITCH ASSY, IGNITION

37110-09F00-000  

37110-05G00-000
 3711009F00000

Unit Price

11
SWITCH ASSY, REVERSE

37600-09F00-000   3760009F00000

3760009F00000
Not available
12
SCREW

02142-05253-000  

02142-0525B-000
 0214205253000

Unit Price

13
RELAY, NEUTRAL START

38730-09F00-000   3873009F00000

3873009F00000

Unit Price

13A
RELAY ASSY,SIDE STAND
RELAY ASSY, SIDE STAND

38740-26E00-000  

38740-26E01-000
 3874026E00000

Unit Price

13B
DISCONTINUE
BRACKET, GEAR IN START

38741-09F00-000   3874109F00000

3874109F00000
Not available
14
WIRE, BRAKE SW LEAD

36856-35B00-000  

36856-35B01-000
 3685635B00000

Unit Price

15
HORN ASSY
HORN ASSY

38502-21E02-000   3850221E02000

3850221E02000

Unit Price

16
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

17
DISCONTINUE
HORN ASSY

38500-09F01-000   3850009F01000

3850009F01000
Not available
18
WIRE, HORN LEAD
WIRE, HORN LEAD (L:450)

36852-09F00-000   3685209F00000

3685209F00000

Unit Price

18A
DISCONTINUE
WIRE, HORN LEAD (L:700)

36852-09F10-000   3685209F10000

3685209F10000
Not available
19
*36920-06400
TAPE, BACK UP LEAD

36920-10B00-000   3692010B00000

3692010B00000

Unit Price

20
SWITCH ASSY, STOP LAMP

37740-25C00-000  

37740-25C01-000
 3774025C00000

Unit Price

20A
SPRING
SPRING

09443-06023-000   0944306023000

0944306023000

Unit Price

21
RELAY ASSY,SIDE STAND
RELAY ASSY, SIDE STAND

38740-26E00-000  

38740-26E01-000
 3874026E00000

Unit Price

22
KEY, BLANK (TYPE:C)

37146-19B00-000   3714619B00000

3714619B00000

Unit Price

22
KEY, BLANK (TYPE:D)

37146-19B10-000   3714619B10000

3714619B10000

Unit Price

23
SWITCH ASSY, EMERGENCY

37820-19B00-000   3782019B00000

3782019B00000
Not available
24
WIRE, EMERGENCY

37825-24500-000   3782524500000

3782524500000
Not available
25
TERMINAL, POWER SOURCE

38850-09F00-000  

38850-09F01-000
 3885009F00000

Unit Price

26
BRACKET, POWER SOURCE

38855-09F00-000   3885509F00000

3885509F00000

Unit Price

27
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

28
DISCONTINUE
GROMMET, POWER SOURCE

38854-09F00-000   3885409F00000

3885409F00000
Not available
