LEVERS - HANDGRIPS (MODEL W / X / Y / K1) REFER TO FIG.42A(H-11) FOR MODEL K2

LEVERS - HANDGRIPS (MODEL K2) FOR SUZUKI QUADMASTER 500 1999

REVERSE LEVER

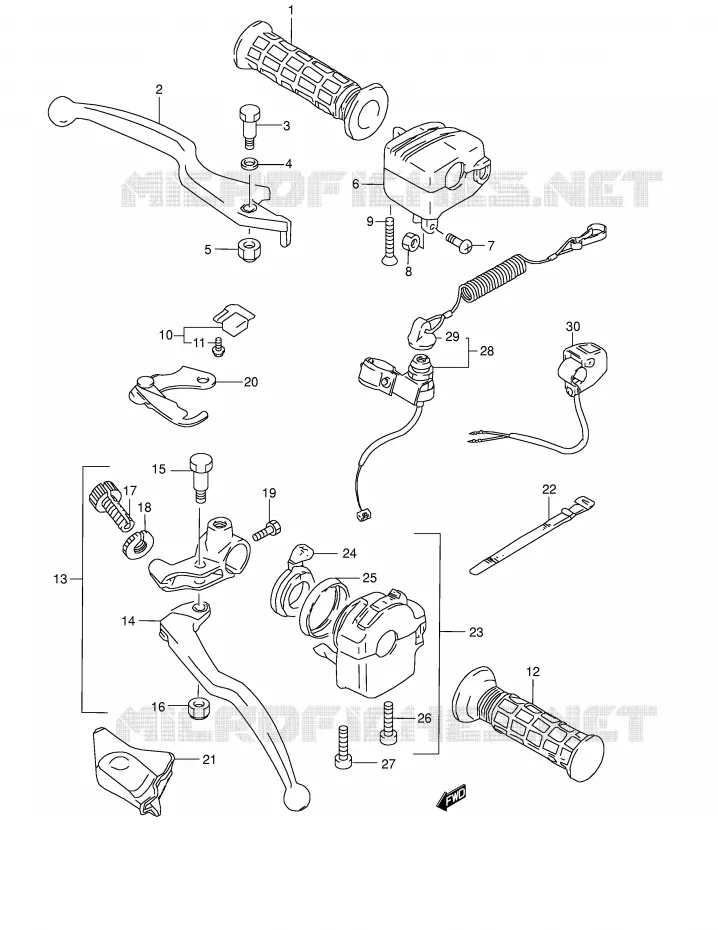

LEVERS - HANDGRIPS (MODEL K2) Suzuki QUAD 500 QUADMASTER 1999 LT-F500FX(E24)
1
GRIP

57211-19A03-291  

57211-19A04-291
 5721119A03291

Unit Price

2
LEVER, FR BRAKE
LEVER, BRAKE

57421-39D10-000   5742139D10000

5742139D10000

Unit Price

3
BOLT(6X28)
BOLT

09111-06075-000   0911106075000

0911106075000

Unit Price

4
SPACER, MASTER CYLINDER
SPACER

57349-38F00-000   5734938F00000

5734938F00000

Unit Price

5
NUT, LEVER PIVOT
NUT

57433-09F00-000   5743309F00000

5743309F00000

Unit Price

6
CASE ASSY, THROTTLE

57100-39DB0-000   5710039DB0000

5710039DB0000

Unit Price

7
SCREW
SCREW

09125-05066-000   0912505066000

0912505066000

Unit Price

8
NUT

09140-05006-000   0914005006000

0914005006000

Unit Price

9
SCREW 5X30
SCREW, CASE

02132-05307-000   0213205307000

0213205307000

Unit Price

10
SWITCH ASSY, STOP

57460-17C00-000  

57460-14J02-000
 5746017C00000

Unit Price

11
SCREW,WITH WASHER(4X12)<br />SCREW
SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

12
GRIP

57211-19A03-291  

57211-19A04-291
 5721119A03291

Unit Price

13
DISCONTINUE

57500-09F00-000  

5750009F00000
Not available
14
LEVER

57620-09F00-000   5762009F00000

5762009F00000
Not available
15
BOLT, LEVER PIVOT
BOLT

57431-29502-000   5743129502000

5743129502000

Unit Price

16
NUT

08319-21063-000  

08319-2106A-000
 0831921063000

Unit Price

17
ADJUSTER, WIRE

57441-08C00-000  

57441-08C01-000
 5744108C00000

Unit Price

18
NUT, LOCK

57442-08C00-000  

57442-08C01-000
 5744208C00000

Unit Price

19
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

20
STOPPER, BRAKE LEVER
STOPPER, BRAKE

57790-09F00-000   5779009F00000

5779009F00000

Unit Price

21
COVER, RR BRAKE
COVER, BRAKE DUST

57541-09F00-000   5754109F00000

5754109F00000

Unit Price

22
FUEL HOSE CLAMP<br />CLAMP
FUEL HOSE CLAMP
CLAMP

09407-12402-000   0940712402000

0940712402000

Unit Price

23
SWITCH ASSY, HANDLE, L

37400-09F00-000  

37400-09F02-000
 3740009F00000

Unit Price

24
LEVER, CHOKE

37571-19B01-000   3757119B01000

3757119B01000

Unit Price

25
COVER, CHOKE

37576-19B01-000   3757619B01000

3757619B01000

Unit Price

26
SCREW
SCREW

02112-05407-000   0211205407000

0211205407000

Unit Price

27
SCREW
SCREW

02112-05457-000   0211205457000

0211205457000

Unit Price

28
SWITCH ASSY, EMERGENCY

37820-19B00-000   3782019B00000

3782019B00000
Not available
29
WIRE, SWITCH

37825-24500-000   3782524500000

3782524500000
Not available
30
SWITCH ASSY, HORN

37830-18A00-000  

37830-27H00-000
 3783018A00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
