FUEL TANK (MODEL H)

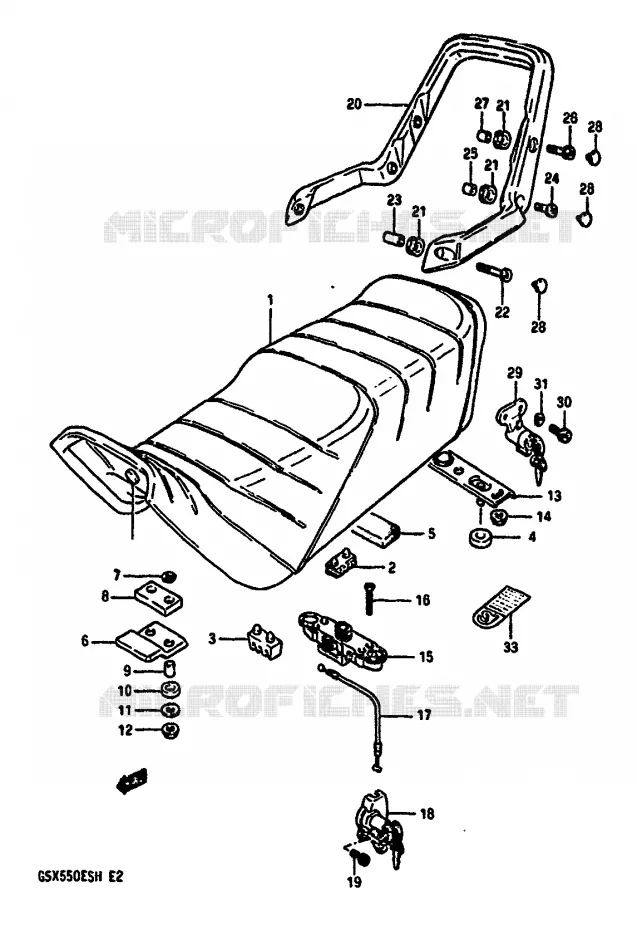

SEAT FOR SUZUKI GSX-E 550 1985

REAR FAIRING - SEAT COWL (GSX550EF / EUF / EG / EUG) REFER TO FIG.42 (H-3) FOR GSX550ESF/ESG

DISCONTINUED

45100-43402-48H 451004340248H

Not available

DISCONTINUED

45100-43402-53L 451004340253L

Not available

DISCONTINUED

45100-43403-58R 451004340358R

Not available

SEAT ASSY (BLACK)

45100-43412-48H 451004341248H

Not available

SEAT ASSY (BLUE)

45100-43412-53L 451004341253L

Not available

DISCONTINUED

45100-43421-58R 451004342158R

Not available

SEAT ASSY (BLACK)

45100-43431-58R 451004343158R

Not available

CUSHION, SEAT(40X20X15)
CUSHION

45149-31300-000 4514931300000

$5,97

Unit Price

CUSHION, SUPPORT(50X25X32)
CUSHION

45149-45330-000 4514945330000

$6,97

Unit Price

CUSHION

45213-43400-000 4521343400000

Not available

CUSHION, FRONT

09329-10018-000 0932910018000

Not available

CUSHION(30X60X10)
STOPPER, BATTERY HOLDER

94982-29400-000

Not available

PLATE, FRONT HOOK

45119-43401-000 4511943401000

Not available

WASHER

08322-21067-000

08322-0106A-000

$3,97

Unit Price

CUSHION, UPPER

45125-13600-000 4512513600000

Not available

SPACER(6.1X8X12)

09180-06035-000

09180-06249-000

$3,97

Unit Price

CUSHION, LOWER

09324-26470-000 0932426470000

Not available

WASHER(6.5X18X1.6)

09160-06006-000

09160-06084-000

$3,97

Unit Price

NUT 6MM

08316-16066-000

08319-31067-000

$3,97

Unit Price

STRIKER, SEAT LOCK

45210-43400-000 4521043400000

Not available

NUT

08316-26066-000

08316-10067-000

$3,97

Unit Price

LOCK ASSY, SEAT STRIKER
STRIKER, SEAT LOCK

45220-13601-000 4522013601000

$104,97

Unit Price

SCREW

02112-06306-000

02112-0630A-000

$3,97

Unit Price

DISCONTINUE

45280-43400-000

Not available

DISCONTINUED

95700-43400-KEY 9570043400KEY

Not available

DISCONTINUED

95700-43401-KEY 9570043401KEY

Not available

BOLT

07110-06165-000

07130-0616B-000

$6,97

Unit Price

HANDLE, PILLION RIDER

46210-43400-000 4621043400000

Not available

DISCONTINUE
GROMMET

45522-43401-000 4552243401000

Not available

BOLT

09106-08037-000

07130-0855B-000

$5,97

Unit Price

SPACER

46219-43400-000 4621943400000

Not available

BOLT

09106-08042-000

07130-0835B-000

$6,97

Unit Price

SPACER

46219-43420-000 4621943420000

Not available

BOLT

09106-08039-000

07130-0840B-000

$6,97

Unit Price

SPACER

46219-43411-000 4621943411000

Not available

CAP, MUF SPRT BOLT

09250-06008-000

09250-06016-000

$3,97

Unit Price

LOCK ASSY, HELMET

95700-43410-KEY 9570043410KEY

Not available

BOLT

07110-06165-000

07130-0616B-000

$6,97

Unit Price

08321-0106A
.LOCK WASHER

08321-21064-000

Not available

LABEL, ASBESTOS WARNING

11967-82000-000 1196782000000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki of GSX-E. Let us know if you have any questions.
