Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT MASTER CYLINDER

SWINGARM FOR SUZUKI GSX-E 550 1985

REAR SHOCK ABSORBER

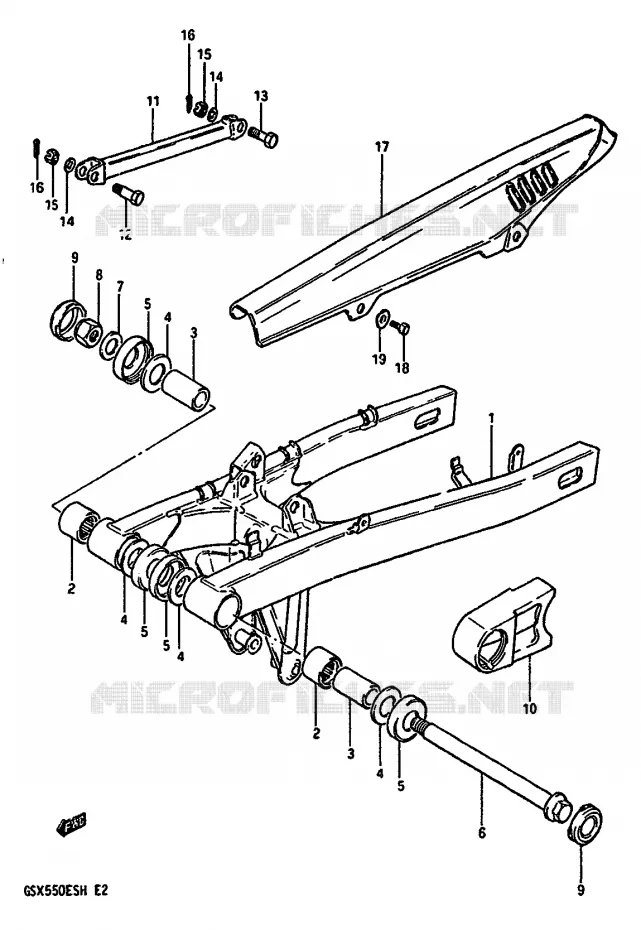

SWINGARM Suzuki MOTO 550 GSX-E 1985 GSX550ESF(F/G/H)
1
SWINGING ARM SET (SILVER)

61000-43400-13L   610004340013L

610004340013L
Not available
2
SWING ARM P BEARING<br />BEARING
SWING ARM P BEARING
BEARING

09263-25024-000   0926325024000

0926325024000

Unit Price

3
DISCONTINUE
SPACER

61251-43400-000   6125143400000

6125143400000
Not available
4
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-16381-000   0821116381000

0821116381000

Unit Price

5
DISCONTINUE<br />COVER,DUST SEAL
DISCONTINUE
COVER, DUST SEAL

61262-49000-000   6126249000000

6126249000000
Not available
6
SHAFT, PIVOT

61211-43400-000   6121143400000

6121143400000
Not available
7
WASHER

08322-11148-000  

08322-01147-000
 0832211148000

Unit Price

8
NUT 14MM

09159-14013-000  

09159-14019-000
 0915914013000

Unit Price

9
CAP,SWINGINGARM PIVOT<br />CAP,PIVOT
CAP, SWINGINGARM PIVOT
CAP, PIVOT

61222-43400-000   6122243400000

6122243400000

Unit Price

10
BUFFER, CHAIN DEFENSE

61273-43401-000   6127343401000

6127343401000
Not available
11
TORQUE LINK, REAR (BLACK)

64310-33400-291   6431033400291

6431033400291
Not available
12
DISCONTINUE

09111-10011-000  

0911110011000
Not available
13
BOLT, REAR

09101-10031-000   0910110031000

0910110031000
Not available
14
WASHER

08322-11104-000  

08322-0110B-000
 0832211104000

Unit Price

15
NUT

08314-41108-000  

08314-4010B-000
 0831441108000

Unit Price

16
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

17
CHAIN CASE

61311-43400-000   6131143400000

6131143400000
Not available
18
BOLT

01107-06104-000  

01500-0610B-000
 0110706104000

Unit Price

19
LOCK WASHER<br />WASHER
LOCK WASHER
WASHER

09169-06026-000   0916906026000

0916906026000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of GSX-E. Let us know if you have any questions.

Genuine parts for Suzuki 550 GSX-E 1985

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 550 GSX-E 1985

Select your Suzuki 1985 model

550 GSX-E 1985 GSX550ESF(F/G/H)

Suzuki GSX-E

Displacement: 550 cc
Year: 1985
Model code GSX550ESF(F / G / H)
