CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI BANDIT 600 1996

CYLINDER

Item numbers

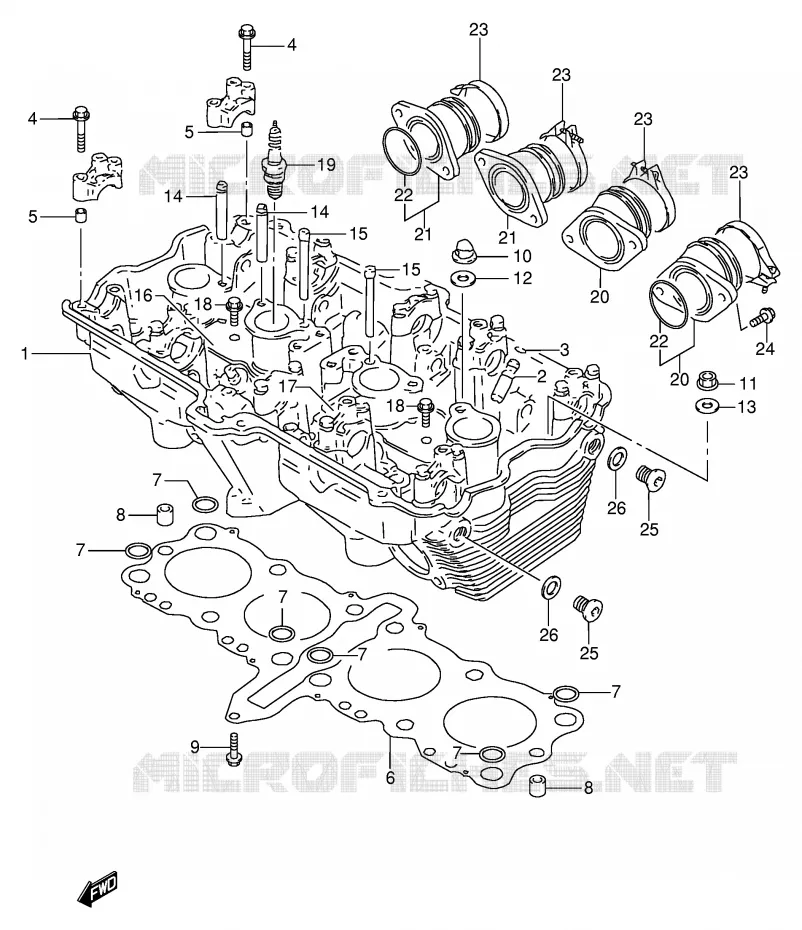

CYLINDER HEAD Suzuki MOTO 600 BANDIT 1996 GSF600ST(E2)
1
1
2
3
4
4
5
5
6
7
7
7
7
7
7
8
8
9
10
11
12
13
14
14
15
15
16
17
18
18
19
19
19
19
19
19
20
20
21
21
22
22
23
23
23
23
24
25
25
26
26
1
HEAD ASSY, CYLINDER

11100-26E00-000   1110026E00000

1110026E00000
Not available
1
DISCONTINUE
HEAD ASSY, CYLINDER

11100-26E10-000   1110026E10000

1110026E10000
Not available
2
GUIDE, VALVE

11115-27A70-000  

11116-06B70-000
 1111527A70000

Unit Price

3
RING, VALVE GUIDE
RING, VALVE GUIDE

09381-10004-000   0938110004000

0938110004000

Unit Price

4
CAM SFT HOUSING BOLT<br />BOLT (6X39)
CAM SFT HOUSING BOLT
BOLT (6X39)

09103-06026-000   0910306026000

0910306026000

Unit Price

5
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

6
GASKET, CYLINDER HEAD
GASKET, CYLINDER HEAD

11141-19C03-000   1114119C03000

1114119C03000

Unit Price

7
O-RING<br />O RING (D:2.6,ID:12.1)
O-RING
O RING (D:2.6, ID:12.1)

09280-12013-000   0928012013000

0928012013000

Unit Price

8
DOWEL PIN<br />PIN
DOWEL PIN
PIN

04211-11189-000   0421111189000

0421111189000

Unit Price

9
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

10
NUT
NUT

09159-10054-000   0915910054000

0915910054000

Unit Price

11
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

12
GASKET 10.2X20X2.3<br />GASKET
GASKET 10.2X20X2.3
GASKET

09168-10031-000   0916810031000

0916810031000

Unit Price

13
WASHER

09160-10060-000  

09160-10039-000
 0916010060000

Unit Price

14
PIPE,OIL NO.1<br />PIPE, OIL NO.1,2
PIPE, OIL NO.1
PIPE, OIL NO.1, 2

11131-27A00-000   1113127A00000

1113127A00000

Unit Price

15
PIPE, OIL NO.3
PIPE, OIL NO.3

11133-27A00-000   1113327A00000

1113327A00000

Unit Price

16
DISCONTINUE<br />PLATE, OIL PIPE RH
DISCONTINUE
PLATE, OIL PIPE RH

11135-27A02-000   1113527A02000

1113527A02000
Not available
17
PLATE,OIL PIPE,L<br />PLATE, OIL PIPE LH
PLATE, OIL PIPE, L
PLATE, OIL PIPE LH

11136-27A02-000   1113627A02000

1113627A02000

Unit Price

18
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

19
CR9EK,NGK<br />SPARK PLUG (NGK,CR9EK)
CR9EK, NGK
SPARK PLUG (NGK, CR9EK)

09482-00410-000   0948200410000

0948200410000

Unit Price

19
CR8EK, NGK<br />SPARK PLUG (NGK,CR8EK)
CR8EK, NGK
SPARK PLUG (NGK, CR8EK)

09482-00412-000   0948200412000

0948200412000

Unit Price

19
CR10EK, NGK<br />SPARK PLUG (NGK,CR10EK)
CR10EK, NGK
SPARK PLUG (NGK, CR10EK)

09482-00462-000   0948200462000

0948200462000

Unit Price

20
PIPE ASSY,INTAKE,NO.
PIPE ASSY, INTAKE, NO.

13101-26E01-000  

13101-26E02-000
 1310126E01000

Unit Price

21
PIPE ASSY,INTAKE,NO.
PIPE ASSY, INTAKE, NO.

13103-26E01-000  

13103-26E02-000
 1310326E01000

Unit Price

22
O RING
O RING

09280-40010-000  

09280-40020-000
 0928040010000

Unit Price

23
CLAMP
CLAMP

09402-48208-000   0940248208000

0940248208000

Unit Price

24
BOLT

07120-06163-000  

07120-06167-000
 0712006163000

Unit Price

25
PLUG
PLUG

09248-14010-000   0924814010000

0924814010000

Unit Price

26
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki BANDIT 600 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 600 BANDIT 1996
