TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI BANDIT 600 1996

ALTERNATOR

Item numbers

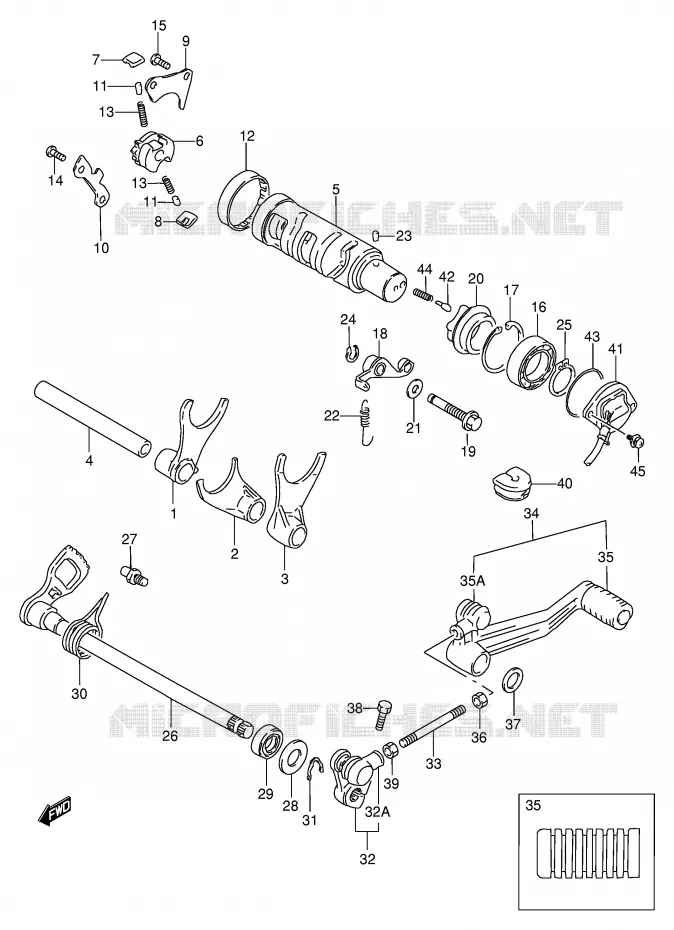

GEAR SHIFTING ASSY Suzuki MOTO 600 BANDIT 1996 GSF600ST(E2)
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32A
33
34
35A
35
35
36
37
37
38
39
40
41
42
43
44
45
1
FORK, GEAR SHIFT NO.1

25211-27A10-000   2521127A10000

2521127A10000
Not available
2
DISCONTINUE<br />FORK, GEAR SHIFT NO.2
DISCONTINUE
FORK, GEAR SHIFT NO.2

25221-27A01-000   2522127A01000

2522127A01000
Not available
3
FORK, GEAR SHIFT NO.3
FORK, GEAR SHIFT NO.3

25231-27A00-000   2523127A00000

2523127A00000

Unit Price

4
SHAFT,GEAR SHIFT FORK(L:128)<br />SHAFT, GEAR SHIFT FORK
SHAFT, GEAR SHIFT FORK(L:128)
SHAFT, GEAR SHIFT FORK

25411-27A00-000   2541127A00000

2541127A00000

Unit Price

5
25310-27A03
CAM, GEAR SHIFT

25310-27A02-000  

2531027A02000
Not available
5
DISCONTINUE<br />CAM, GEAR SHIFT
DISCONTINUE
CAM, GEAR SHIFT

25310-27A03-000   2531027A03000

2531027A03000
Not available
6
GEAR,GEAR SHIFT CAM DRIVEN<br />GEAR, GEAR SHIFT CAM
GEAR, GEAR SHIFT CAM DRIVEN
GEAR, GEAR SHIFT CAM

25322-31310-000   2532231310000

2532231310000

Unit Price

7
PAWL,GEAR SHIFT NO.1<br />POLE, GEAR SHIFT NO.1
PAWL, GEAR SHIFT NO.1
POLE, GEAR SHIFT NO.1

25323-34201-000   2532334201000

2532334201000

Unit Price

8
PAWL,GEAR SHIFT NO.2<br />POLE, GEAR SHIFT NO.2
PAWL, GEAR SHIFT NO.2
POLE, GEAR SHIFT NO.2

25324-34201-000   2532434201000

2532434201000

Unit Price

9
LIFTER, GEAR SHIFT POLE

25331-31301-000   2533131301000

2533131301000
Not available
10
GUIDE,GEAR SHIFT CAM<br />GUIDE, CAM
GUIDE, GEAR SHIFT CAM
GUIDE, CAM

25341-27A00-000   2534127A00000

2534127A00000

Unit Price

11
SHIFTING PAUL ROLLER<br />PIN, GEAR
SHIFTING PAUL ROLLER
PIN, GEAR

09261-05003-000   0926105003000

0926105003000

Unit Price

12
BEARING(43X49X12)<br />BEARING, GEAR RH (43X49X12)
BEARING(43X49X12)
BEARING, GEAR RH (43X49X12)

09263-43001-000   0926343001000

0926343001000

Unit Price

13
K S PAWL SPRING<br />SPRING, GEAR RETURN
K S PAWL SPRING
SPRING, GEAR RETURN

09440-04003-000   0944004003000

0944004003000

Unit Price

14
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

15
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

16
BEARING, RH<br />BEARING, GEAR LH
BEARING, RH
BEARING, GEAR LH

08113-69050-000   0811369050000

0811369050000

Unit Price

17
CIRCLIP

08331-41426-000  

08331-41429-000
 0833141426000

Unit Price

18
STOPPER, GEAR SHIFT CAM
STOPPER, GEAR SHIFT CAM

25350-27A00-000   2535027A00000

2535027A00000

Unit Price

19
DISCONTINUE<br />SHAFT, GEAR SHIFT STOPPER
DISCONTINUE
SHAFT, GEAR SHIFT STOPPER

25353-27A00-000   2535327A00000

2535327A00000
Not available
20
PLATE,STOPPER<br />PLATE, GEAR SHIFT STOPPER
PLATE, STOPPER
PLATE, GEAR SHIFT STOPPER

25381-38400-000   2538138400000

2538138400000

Unit Price

21
CRNK DRAIN PLUG GASK<br />GASKET, GEAR SHIFT STOPPER
CRNK DRAIN PLUG GASK
GASKET, GEAR SHIFT STOPPER

09168-10002-000   0916810002000

0916810002000

Unit Price

22
SPRING<br />SPRING, GEAR SHIFT STOPPER
SPRING
SPRING, GEAR SHIFT STOPPER

09443-09033-000   0944309033000

0944309033000

Unit Price

23
PIN (4X6)<br />PIN, TEAR SHIFT STOPPER
PIN (4X6)
PIN, TEAR SHIFT STOPPER

04221-04069-000   0422104069000

0422104069000

Unit Price

24
CIRCLIP

08331-31086-000  

08331-31089-000
 0833131086000

Unit Price

25
CIRCLIP

08331-31256-000  

08331-31259-000
 0833131256000

Unit Price

26
DISCONTINUE<br />SHAFT, GEAR SHIFT
DISCONTINUE
SHAFT, GEAR SHIFT

25510-19C01-000   2551019C01000

2551019C01000
Not available
27
STOPPER, GEAR SHIFT ARM

25671-01000-000  

25671-01011-000
 2567101000000

Unit Price

28
WASHER

09160-12090-000  

09160-12089-000
 0916012090000

Unit Price

29
09285-12006<br />SEAL, GEAR SHIFT (12X22X9)
09285-12006
SEAL, GEAR SHIFT (12X22X9)

09285-12002-000  

0928512002000
Not available
30
SPRING<br />SPRING, GEAR SHIFT RETURN
SPRING
SPRING, GEAR SHIFT RETURN

09444-26017-000   0944426017000

0944426017000

Unit Price

31
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price

32
ARM,GEAR SHIFT LINK
ARM, GEAR SHIFT LINK

25520-22A00-000  

25520-22A01-000
 2552022A00000

Unit Price

32A
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

33
ROD, GEAR SHIFT LINK
ROD, GEAR SHIFT LINK

25525-26E01-000   2552526E01000

2552526E01000

Unit Price

34
LEVER ASSY, GEAR SHIFT

25600-10D10-000  

25600-10D11-000
 2560010D10000

Unit Price

35
RUBBER,GEAR SHIFT PEDAL<br />RUBBER, GEAR SHIFT
RUBBER, GEAR SHIFT PEDAL
RUBBER, GEAR SHIFT

25652-20C00-000   2565220C00000

2565220C00000

Unit Price

35A
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

36
GR SHFT LINK ROD NUT<br />NUT, GEAR SHIFT,LH
GR SHFT LINK ROD NUT
NUT, GEAR SHIFT, LH

09140-06011-000   0914006011000

0914006011000

Unit Price

37
WASHER<br />WASHER, GEAR SHIFT
WASHER
WASHER, GEAR SHIFT

09160-18022-000   0916018022000

0916018022000

Unit Price

38
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

39
NUT<br />NUT, GEAR SHIFT LINK,RH
NUT
NUT, GEAR SHIFT LINK, RH

08310-00067-000   0831000067000

0831000067000

Unit Price

40
GROMMET, LEAD WIRE
GROMMET, LEAD WIRE

33885-27A01-000   3388527A01000

3388527A01000

Unit Price

41
TERMINAL BASE ASSY, NEUTRAL
TERMINAL BASE ASSY, NEUTRAL

37720-48B00-000   3772048B00000

3772048B00000

Unit Price

42
K S PAWL ROLLER<br />CONTACT, NEUTRAL SW
K S PAWL ROLLER
CONTACT, NEUTRAL SW

09209-05011-000   0920905011000

0920905011000

Unit Price

43
O-RING,ID:35.5<br />O RING (D:2.40,ID:35.5)
O-RING, ID:35.5
O RING (D:2.40, ID:35.5)

09280-35006-000   0928035006000

0928035006000

Unit Price

44
K S PAWL SPRING<br />SPRING, NEUTRAL SW
K S PAWL SPRING
SPRING, NEUTRAL SW

09440-04010-000   0944004010000

0944004010000

Unit Price

45
SCREW

02112-75163-000  

02112-7516A-000
 0211275163000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki BANDIT 600 of BANDIT. Let us know if you have any questions.
