CARBURETOR REFER TO FIG.11 (C-4) FOR MODEL H/J/K E18

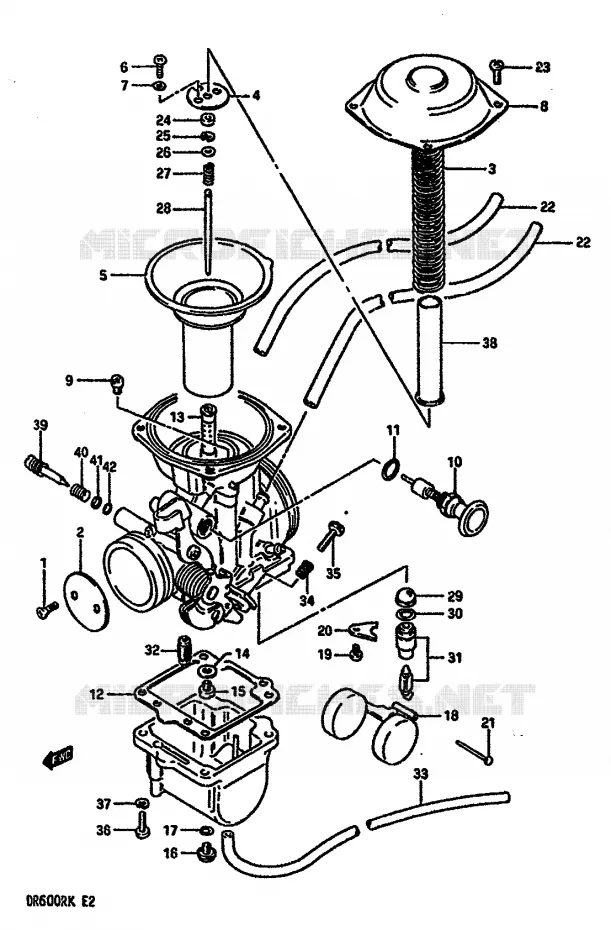

CARBURETOR (MODEL H / J / K E18) FOR SUZUKI DR 600 1987

CARBURETOR (MODEL J E24 E.NO.139616~ / MODEL K E24)

SCREW

13604-44080-000 1360444080000

$5,97

Unit Price

VALVE, THROTTLE (125)

13551-37400-000 1355137400000

Not available

SPRING

13503-14A10-000 1350314A10000

Not available

PLATE

13389-37400-000 1338937400000

$9,97

Unit Price

.DIAPHRAGM ASSY

13500-14A10-000 1350014A10000

Not available

DIAPHRAGM ASSY

13500-14A20-000 1350014A20000

Not available

SCREW

02112-03066-000

02112-03063-000

$2,97

Unit Price

WASHER, LOCK

08321-21036-000

08321-2103B-000

$2,97

Unit Price

COVER

13502-37400-000 1350237400000

$36,97

Unit Price

JET, MAIN (107.50)

09491-21020-000

09491-21019-000

$16,97

Unit Price

JET, MAIN
JET, PILOT AIR (105)

09491-21023-000 0949121023000

$17,97

Unit Price

DISCONTINUE
PLUNGER ASSY

13400-14A00-000 1340014A00000

Not available

PLUNGER ASSY

13411-37400-000 1341137400000

Not available

O RING

13278-47090-000

13278-47091-000

$2,97

Unit Price

GASKET, FLOAT CHAMBER

13251-37100-000

13251-37101-000

$18,97

Unit Price

JET, NEEDLE (X-7)

09494-00273-000 0949400273000

Not available

WASHER

13332-44080-000

13382-03110-000

$4,97

Unit Price

JET, MAIN (142.5)

09491-28015-000 0949128015000

Not available

PLUG, DRAIN

13247-44080-000 1324744080000

$17,97

Unit Price

GASKET
O RING, DRAIN

13246-44080-000 1324644080000

$5,97

Unit Price

FLOAT

13250-37400-000 1325037400000

$43,97

Unit Price

SCREW

02112-04066-000

02112-0406B-000

$2,97

Unit Price

PLATE

13373-39110-000 1337339110000

$11,97

Unit Price

PIN, FLOAT

13254-92311-000 1325492311000

$2,97

Unit Price

HOSE

13684-22A00-000

09352-50823-600

$11,97

Unit Price

SCREW

02112-05106-000

02112-0510B-000

$2,97

Unit Price

RING

13387-44030-000 1338744030000

$9,97

Unit Price

CLIP, NEEDLE
E RING

13394-31210-000 1339431210000

$6,97

Unit Price

WASHER

13382-44030-000 1338244030000

$5,97

Unit Price

SPRING

13388-44030-000 1338844030000

$11,97

Unit Price

NEEDLE, JET (5C46-2)

13383-37410-000 1338337410000

Not available

FILTER

13376-84110-000

13376-19F00-000

$15,97

Unit Price

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

VALVE ASSY, NEEDLE

13370-37400-000

13370-24C80-000

$118,97

Unit Price

JET, PILOT
JET, PILOT (47.5)

09492-47013-000 0949247013000

$20,97

Unit Price

.HOSE (3.5X6.5X600)

13683-45070-000 1368345070000

Not available

SPRING

13271-93011-000 1327193011000

$6,97

Unit Price

ADJUSTER

13267-37100-000

13267-25D00-000

$17,97

Unit Price

SCREW

02112-05166-000

02112-0516B-000

$2,97

Unit Price

WASHER, LOCK

08321-21056-000

08321-01053-000

$2,97

Unit Price

PIPE

13485-24B70-000 1348524B70000

Not available

SCREW, AIR

13269-37410-000

13269-37400-000

$18,97

Unit Price

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

CARBURETOR ASSY

13200-14A30-000 1320014A30000

Not available

CARBURETOR ASSY

13200-14A40-000 1320014A40000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODEL H/J/K E18) of your Suzuki DR 600 R REDUCED POWER of DR. Let us know if you have any questions.
