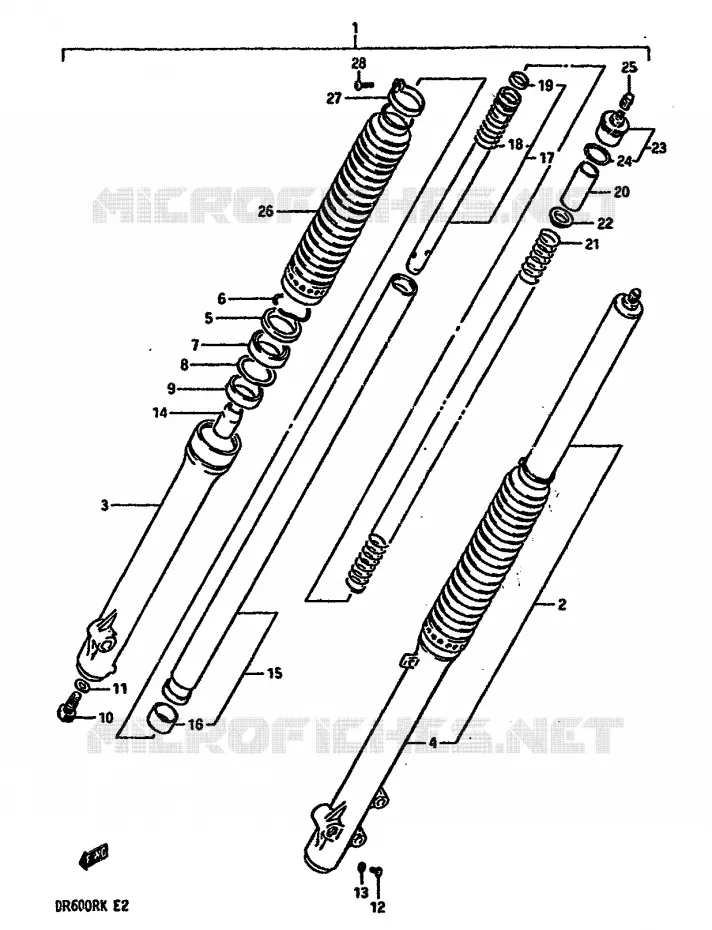

FRONT FORK FOR SUZUKI DR 600 1987

STEERING COLUMN

DAMPER ASSY, RH

51103-14A00-000 5110314A00000

Not available

DAMPER ASSY, LH

51104-14A00-000 5110414A00000

Not available

OUTER TUBE RH

51130-14A00-000 5113014A00000

Not available

OUTER TUBE LH

51140-14A00-000 5114014A00000

Not available

DISCONTINUE
DUST SEAL

51173-14A00-000 5117314A00000

Not available

RING, OIL SEAL STOPPER
RING, STOPPER

51156-49440-000 5115649440000

$7,97

Unit Price

DISCONTINUE
OIL SEAL

51153-14A00-000 5115314A00000

Not available

WASHER

51158-07A00-000 5115807A00000

Not available

DISCONTINUE
SLIDE METAL

51167-07A00-000 5116707A00000

Not available

BOLT, CYLINDER
BOLT

51147-40300-000 5114740300000

$10,97

Unit Price

GASKET, CYLINDER
GASKET

51148-40300-000 5114840300000

$4,97

Unit Price

SCREW

02112-04068-000

02112-0406B-000

$2,97

Unit Price

GASKET, DRAIN, PLUG
GASKET

51183-03010-000 5118303010000

Not available

PIECE, OIL LOCK

51195-13A00-000 5119513A00000

Not available

INNER TUBE

51110-14A00-000 5111014A00000

Not available

DISCONTINUE
PISTON

51121-07A00-000 5112107A00000

Not available

.CYLINDER

51146-14A00-000 5114614A00000

Not available

SPRING

51177-14A00-000 5117714A00000

Not available

RING

51196-14A00-000 5119614A00000

Not available

SPACER

51176-14A00-000 5117614A00000

Not available

SPRING

51171-14A00-000 5117114A00000

Not available

DISCONTINUE
GUIDE, SPRING

51172-14A00-000 5117214A00000

Not available

DISCONTINUE
CAP

51351-14A00-000 5135114A00000

Not available

DISCONTINUE
O RING

51117-14A00-000 5111714A00000

Not available

CAP

51294-20400-000 5129420400000

$9,97

Unit Price

DISCONTINUE

51571-14A00-19F

Not available

DISCONTINUE

51575-40300-000

Not available

SCREW

02112-04108-000

02112-04107-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki DR 600 R REDUCED POWER of DR. Let us know if you have any questions.
