Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE COVER

OIL PAN FOR SUZUKI GSX-F 600 2002

OIL PUMP

Item numbers

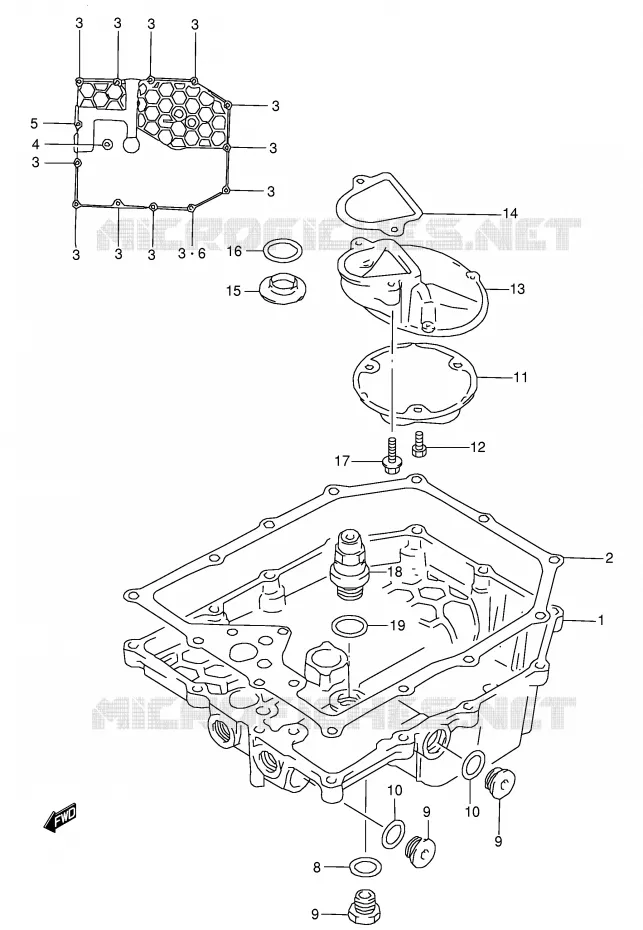

OIL PAN Suzuki MOTO 600 GSX-F 2002 GSX600FK2(E2)
1
1
2
3
3
3
3
3
3
3
3
3
3
3
3
4
5
6
6
8
9
9
9
10
10
11
12
13
14
15
16
17
18
19
1
PAN, OIL

11511-26E00-000  

11511-26E01-000
 1151126E00000

Unit Price

2
GASKET, OIL PAN
GASKET, OIL PAN

11489-27A21-000   1148927A21000

1148927A21000

Unit Price

3
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

4
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

5
BOLT

01550-06503-000  

01550-0650A-000
 0155006503000

Unit Price

6
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price

6
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
7
PLUG

09247-14001-000  

09247-14002-000
 0924714001000

Unit Price

8
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

9
PLUG,OIL<br />PLUG, OIL GALLERY
PLUG, OIL
PLUG, OIL GALLERY

09248-16012-000   0924816012000

0924816012000

Unit Price

10
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

11
STRAINER, ENGINE OIL
STRAINER, ENGINE OIL

16520-09301-000   1652009301000

1652009301000

Unit Price

12
BOLT

01570-06123-000  

01570-0612A-000
 0157006123000

Unit Price

13
PROTECTOR,OIL STRAINER<br />PROTECTOR, STRAINER
PROTECTOR, OIL STRAINER
PROTECTOR, STRAINER

16525-06B00-000   1652506B00000

1652506B00000

Unit Price

14
GASKET, OIL STR PROTECTOR

16528-27A20-000  

16528-27A21-000
 1652827A20000

Unit Price

15
GASKET, OIL OUTLET
GASKET, OIL OUTLET

16529-27A01-000   1652927A01000

1652927A01000

Unit Price

16
O RING<br />O RING (D:3.2,ID:17.8)
O RING
O RING (D:3.2, ID:17.8)

09280-18009-000   0928018009000

0928018009000

Unit Price

17
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

18
VALVE ASSY, OIL RELIEF

16440-17C01-000  

16440-17C10-000
 1644017C01000

Unit Price

19
GASKET OIL GALLERY<br />WASHER
GASKET OIL GALLERY
WASHER

09168-16002-000   0916816002000

0916816002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
