OIL PAN

OIL PUMP FOR SUZUKI GSX-F 600 2002

CRANKSHAFT

Item numbers

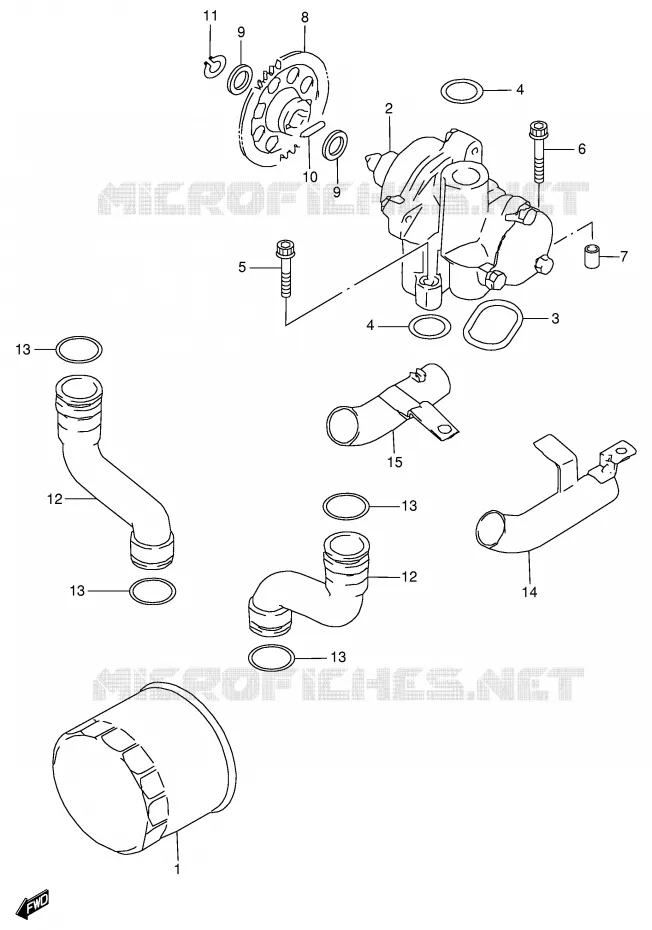

OIL PUMP Suzuki MOTO 600 GSX-F 2002 GSX600FK2(E2)
1
2
3
4
4
5
6
7
8
9
9
10
11
12
12
13
13
13
13
14
15
1
FILTER ASSY, ENGINE OIL

16510-34E00-000  

16510-07J10-000
 1651034E00000

Unit Price

2
DISCONTINUE

16400-06B30-000  

1640006B30000
Not available
3
O RING, OIL PUMP
O RING, OIL PUMP

16491-27A01-000   1649127A01000

1649127A01000

Unit Price

4
O RING<br />O RING (D:3.2,ID:17.8)
O RING
O RING (D:3.2, ID:17.8)

09280-18009-000   0928018009000

0928018009000

Unit Price

5
BOLT (6X30)
BOLT (6X30)

09106-06089-000   0910606089000

0910606089000

Unit Price

6
BOLT (6X35)
BOLT (6X35)

09106-06088-000   0910606088000

0910606088000

Unit Price

7
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

8
GEAR,OIL PUMP DRIVEN(NT:37)<br />GEAR, OIL PUMP DRIVEN
GEAR, OIL PUMP DRIVEN(NT:37)
GEAR, OIL PUMP DRIVEN

16332-19C00-000   1633219C00000

1633219C00000

Unit Price

9
WASHER
WASHER

08221-12205-000   0822112205000

0822112205000
Not available
10
PIN
PIN

09261-05006-000   0926105006000

0926105006000

Unit Price

11
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price

12
PIPE,OIL OUTLET<br />PIPE, OUTLET
PIPE, OIL OUTLET
PIPE, OUTLET

16481-17D00-000   1648117D00000

1648117D00000

Unit Price

13
O RING,D:.7,ID:7<br />O RING (D:3.7,ID:21.7)
O RING, D:.7, ID:7
O RING (D:3.7, ID:21.7)

09280-22016-000   0928022016000

0928022016000

Unit Price

14
DISCONTINUE<br />PIPE, OIL UNDER,LH
DISCONTINUE
PIPE, OIL UNDER, LH

16530-27A02-000   1653027A02000

1653027A02000
Not available
15
DISCONTINUE<br />PIPE, OIL UNDER,RH
DISCONTINUE
PIPE, OIL UNDER, RH

16540-27A02-000   1654027A02000

1654027A02000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
